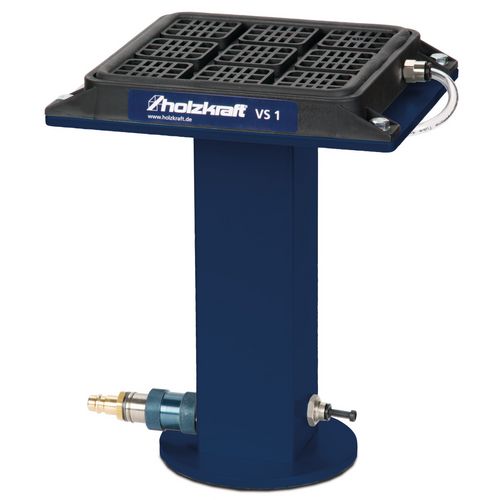

Productimage for VS 1
Brandimage to Product VS 1

Vacuum clamps

VS 1

Vacuum generation via compressed air

315,00 EUR excl. Tax / pc(s).
374,85 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5410001

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Sensitive surfaces can be stretched without damage
    • Vacuum generation via compressed air; Connection via plug nipple to an external compressed air generator - no vacuum pump required
    • For use in sanding, planing, milling, sawing, filling, painting, and much more.
    • For use in the workshop or on assembly
    • Easy assembly and disassembly of the vacuum clamp on the workbench via a practical lever screw
    • For large workpieces, several vacuum clamps can be connected to each other without any problems - required parts are included in delivery
    • All seals silicone-free



    Air consumption23 l/min
    Operating pressure6 bar
    VPE1
    Dimensions and weights
    Vacuum table dimensions160 x 160 mm
    Length approx.205 mm
    Width/depth approx.165 mm
    Height approx.250 mm
    Weight approx.3 kg
    Round suction pad
    MaterialPE / polyamide
    Unit: pc(s).
    Packaging unit: 1

    • Vacuum clamp on pedestal
    • slide valve
    • four rubber seals (2 x large, 1 x medium, 1 x small)
    • PU hose
    • Nipple for quick connection DN 7.2
    • Compressed air quick coupling
    • two plugs
    • Y-connector
    • lever screw
