    Productimage for SBSM 700
    Brandimage to Product SBSM 700

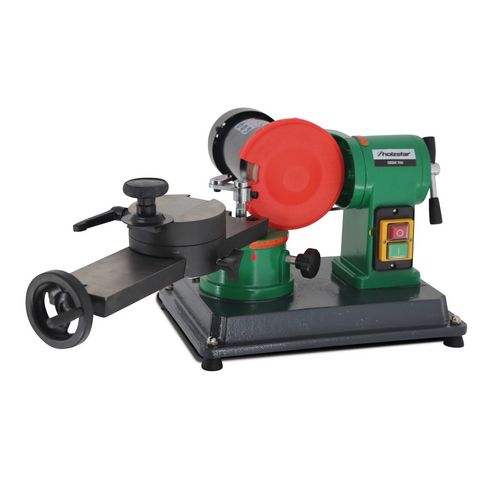

    Saw blade sharpener

    SBSM 700

    Precise sharpening of saw blades within a few minutes

    239,00 EUR excl. Tax / pc(s).
    284,41 EUR incl. 19% Tax / pc(s).
    Promotional price *
    209,00 EUR excl. Tax / pc(s).
    248,71 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5903700

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Quick and easy grinding process
    • Saw blades can be ground from 80 mm to 700 mm
    • Sturdy cast iron design for precise work
    • Motor unit can be swiveled by 20° for sharpening interchangeable tooth saw blades
    • Saw blade holder angle adjustable from 45° to -30° for different tooth angles
    • Vibration-damping feet for vibration-free and low-noise operation



    • Saw blades from 80 mm to 700 mm can be sharpened
    • Motor unit can be swiveled by 20° for sharpening interchangeable tooth saw blades
    • Saw blade holder angle adjustable from 45° to -30° for different tooth angles



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Grinding wheel diameter125 mm
    Bore grinding wheel13 mm
    Wide grinding wheel10 mm
    Grinding wheel typeDiamond
    Left support table setting angle30 °
    Right support table adjustment angle45 °
    Setting angle±20 °
    VPE1
    Dimensions and weights
    Length approx.700 mm
    Width/depth approx.382 mm
    Height approx.295 mm
    Weight approx.17 kg
    Electrical Data
    Motor power250 W
    Length of connection cable1.8 m
    Cable typeH05VV-F
    Protection class1
    Protection typeIP54
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Spacers for different saw blade bores (20/22/30 mm)
