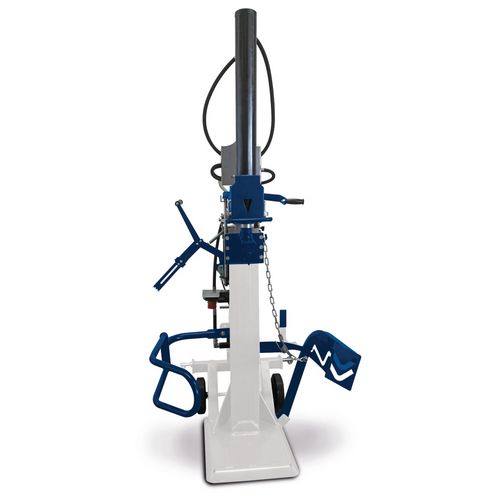

    Productimage for HSE 30-1100 ZE
    Brandimage to Product HSE 30-1100 ZE

    Log splitter

    HSE 30-1100 ZE

    With combined PTO / electric drive - for demanding users

    2.889,00 EUR excl. Tax / pc(s).
    3.437,91 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.469,00 EUR excl. Tax / pc(s).
    2.938,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Safetydatasheet

    Art.-No. 5981031

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Vertical design for splitting logs and meters of wood
    • Robust and solid construction
    • Shock and scratch resistant due to high quality powder coating
    • Fast, tool-free gap height adjustment
    • Low base plate for easy, fatigue-free loading of large logs
    • Phase inverter for all 400 V models
    • Convenient transport with a hand drawbar due to the standard chassis with large pneumatic wheels and an additional support wheel
    • Space-saving storage by simply lowerable cylinder
    • Powerful industrial hydraulic system
    • Two-hand safety control
    • With log holder



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Safetydatasheet
    Device data
    Max. splitting force26.1 t
    Min. splitting length560 mm
    Max. splitting length1100 mm
    Min. split material diameter80 mm
    Max. split material diameter400 mm
    Dimensions and weights
    Length approx.1050 mm
    Width/depth approx.1700 mm
    Height approx.2500 mm
    Weight approx.373.1 kg
    Drive
    PTO shaft speed540 min¯¹
    Drive motor input5.5 kW
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Hydraulic system
    Oil tank capacity30 l
    VPE1
    Unit: pc(s).
    Packaging unit: 1
