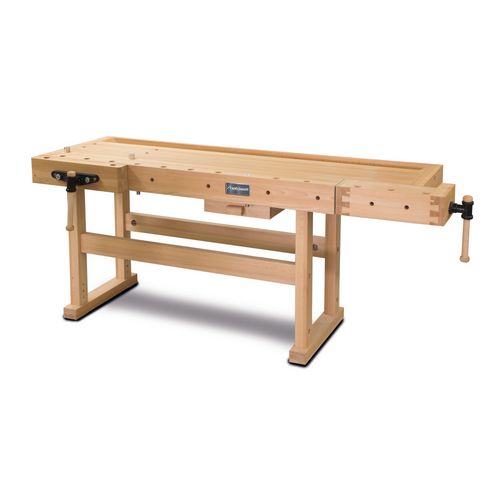

Workbench
HB 2010
For carpenters. In professional design
1.229,00
EUR excl. Tax / pc(s).
1.462,51 EUR incl. 19% Tax / pc(s).
1.462,51 EUR incl. 19% Tax / pc(s).
Promotional price *
1.099,00 EUR excl. Tax / pc(s).1.307,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5102102
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Precise and careful processing
- Completely made of steamed, massive beech
- All important edges are rounded
- Surfaces environmentally friendly oiled
- Standard with tool drawer
- The two cylinder rods of the collets are precisely and stably guided in a casting
- With smooth-running trapezoidal threaded spindle
HB 2010:
- like HB 2007 with the following differences:
- Dovetail zinc plating in back pliers and leaves
- More massive linear guide on the back forceps
- Particularly heavy version of the table and base for a firm footing
- Heavy and stable tong guides
- Particularly heavy version
- Dovetail zinc plating in back pliers and leaves
- With round bench hook
- All important edges rounded
- He weiterbar
Room amenities

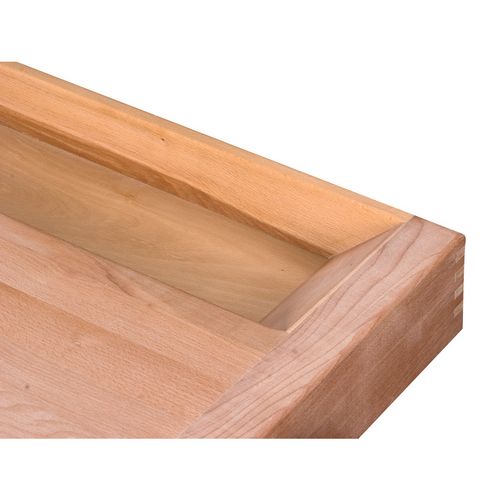

Quality in processing
- Standard with carefully processed tool drawer
- All important edges are rounded
- The surface is oiled environmentally friendly

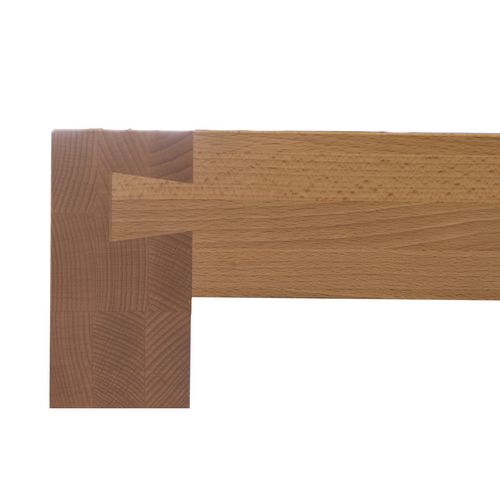

Dovetail galvanizing
- in back pliers and Beiladerücken
Particularly massive linear guide on the rear pliers

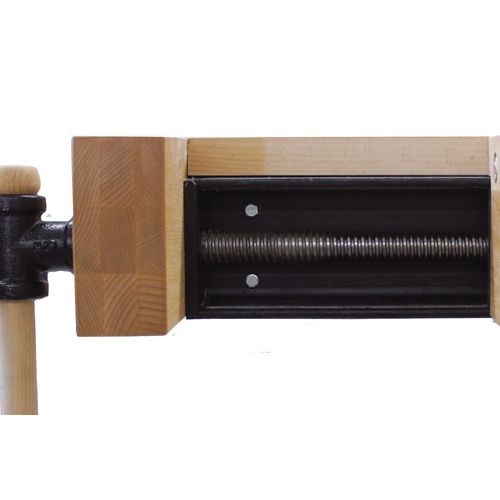

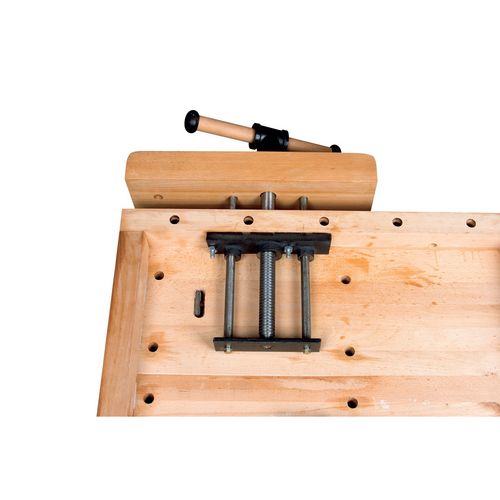

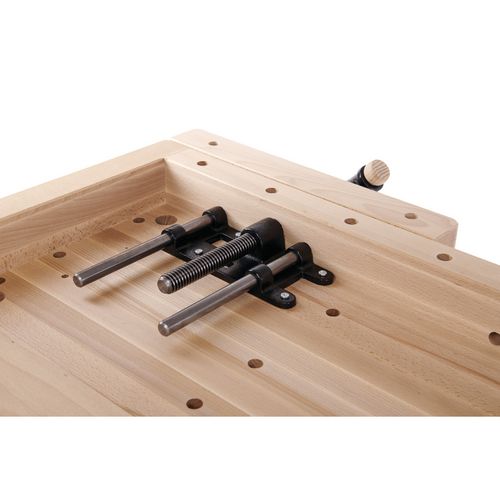

Quality collets
- Two cylinder rods are precisely and stably guided in a casting.
- With smooth-running, large-dimensioned trapezoidal threaded spindle

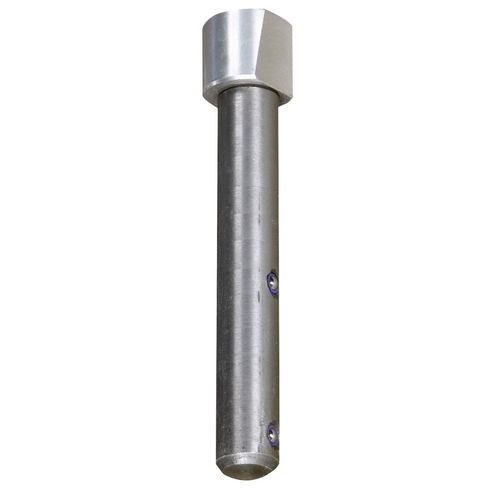

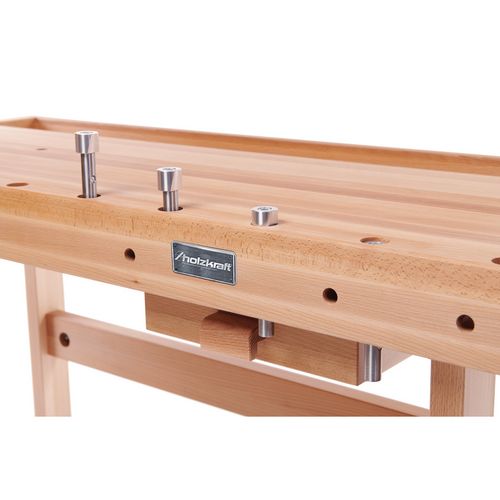

Round bench dogs
- The standard, rotatable round bench hooks facilitate the clamping of workpieces of various kinds.
- The clamping heads are made of aluminum.
- This prevents damage to your tools in the event of accidental contact.

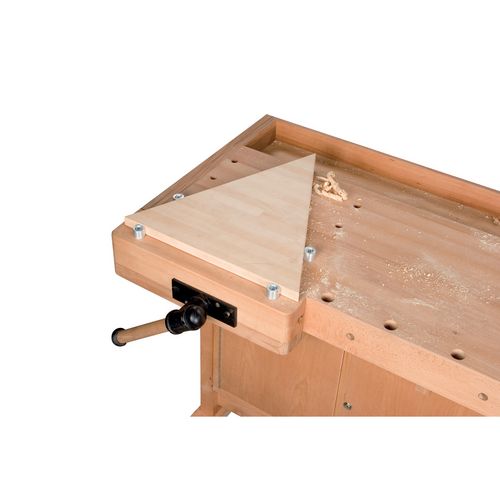

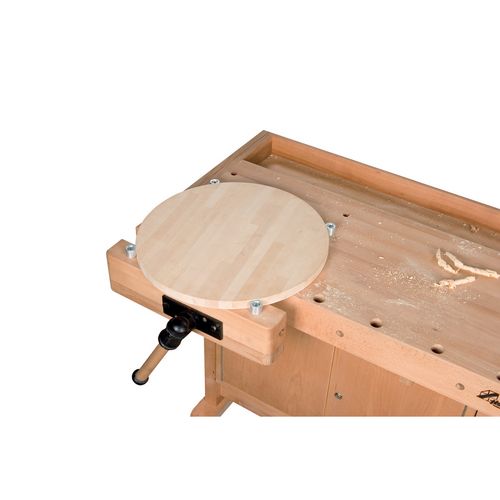

- The lateral, oblique clamping surface of the round heads presses the workpiece evenly against the worktop during clamping.
- The round bench hooks can be positioned at different heights using adjustable pressure elements.
| Dimensions and weights | |
|---|---|
| Length of workspace without vice jaws | 1910 mm |
| Width/depth of workspace without vice jaws | 615 mm |
| Length approx. | 2100 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 870 mm |
| Weight approx. | 97 kg |
| Face vise | |
|---|---|
| Length | 520 mm |
| Width | 70 mm |
| Span width | 190 mm |
| Span width up to centre of round hook | 225 mm |
| Tail vise | |
|---|---|
| Length | 460 mm |
| Width | 140 mm |
| Span width | 190 mm |
| Span width up to centre of round hook | 275 mm |
| Work table | |
|---|---|
| Working height | 870 mm |
| Board thickness | 50 mm |
| Max. load | 600 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 2 round bench hooks short
- 2 round bench hooks long
- 1 drawer
