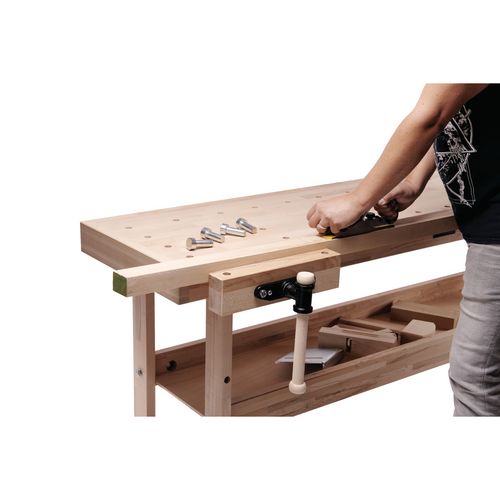

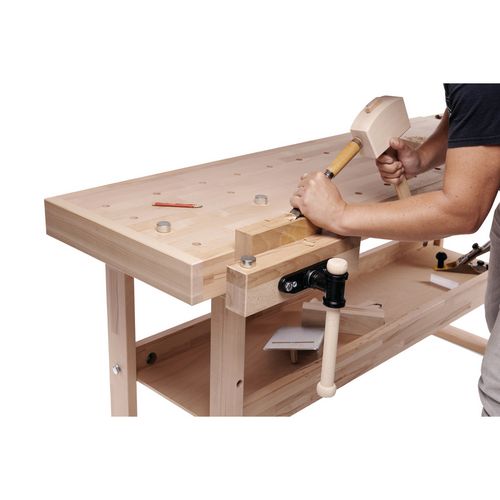

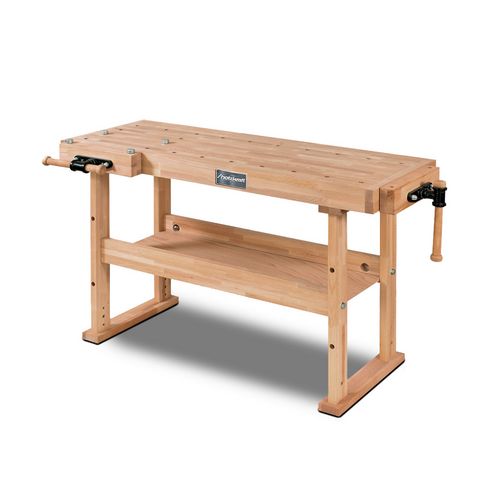

Workbench
HB 1401
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5101411
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Finger-jointed beechwood
- Precise manufacturing and careful processing
- Completely made of steamed, massive beech
- Delivery is disassembled for self-assembly

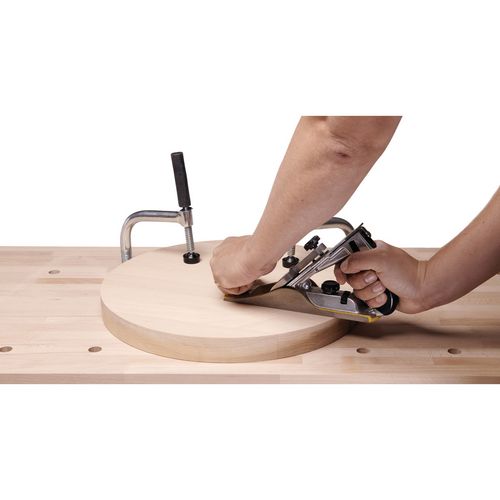

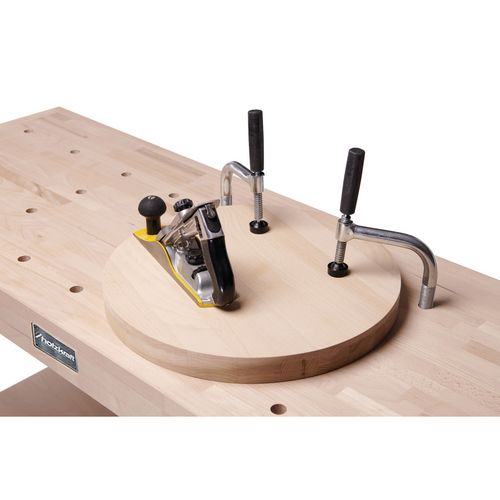

- Standard with shelf and four round bench hooks
- With two bank hook rows
- Surface unprocessed
| Dimensions and weights | |
|---|---|
| Length of workspace without vice jaws | 1340 mm |
| Width/depth of workspace without vice jaws | 500 mm |
| Length approx. | 1500 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 850 mm |
| Weight approx. | 47 kg |

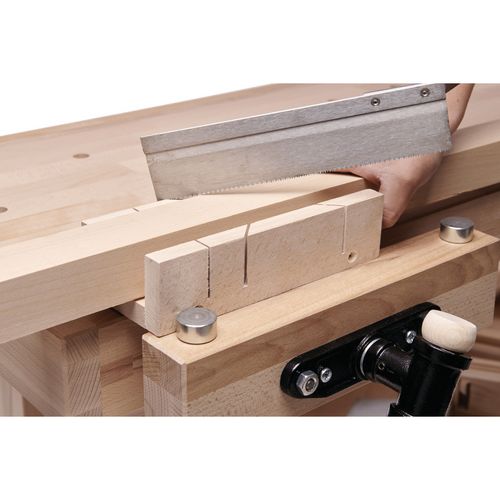

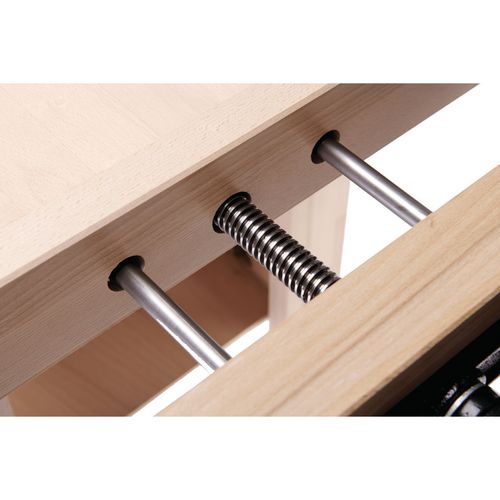

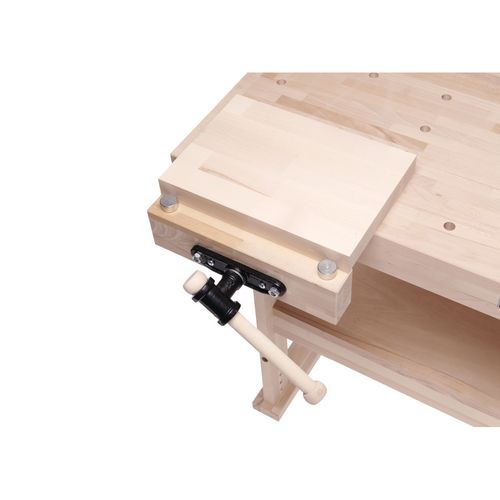

| Face vise | |
|---|---|
| Length | 350 mm |
| Width | 55 mm |
| Span width | 130 mm |
| Span width up to centre of round hook | 160 mm |

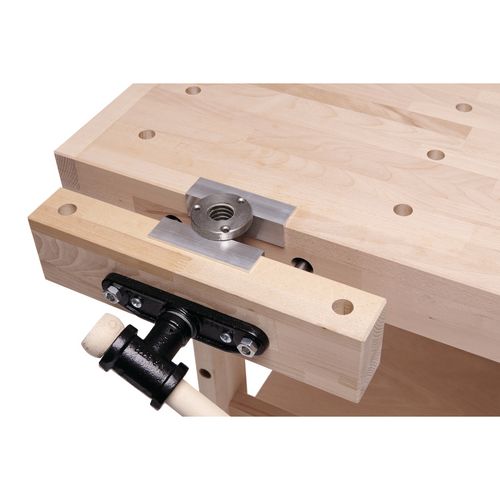

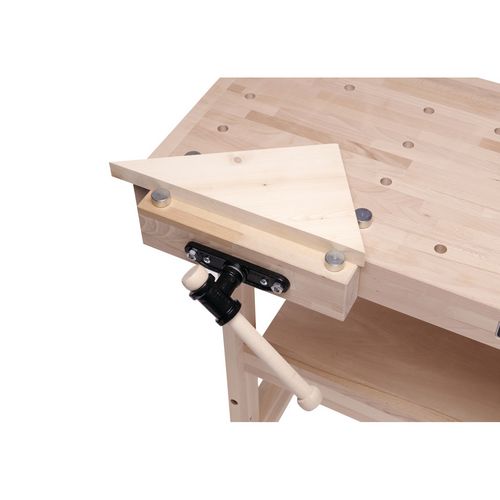

| Tail vise | |
|---|---|
| Length | 360 mm |
| Width | 55 mm |
| Span width | 130 mm |
| Span width up to centre of round hook | 160 mm |
| Work table | |
|---|---|
| Working height | 850 mm |
| Board thickness | 30 mm |
| Max. load | 350 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 4 round bench hook
