    Vertical panel saw

    VPS 22-41 VR

    Vertical panel saw with scoring unit and dust extraction system

    18.350,00 EUR excl. Tax / pc(s).
    21.836,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    16.599,00 EUR excl. Tax / pc(s).
    19.752,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5601241

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Smooth and ergonomic operation
    • Modular welded machine frame, torsion-free and self-supporting

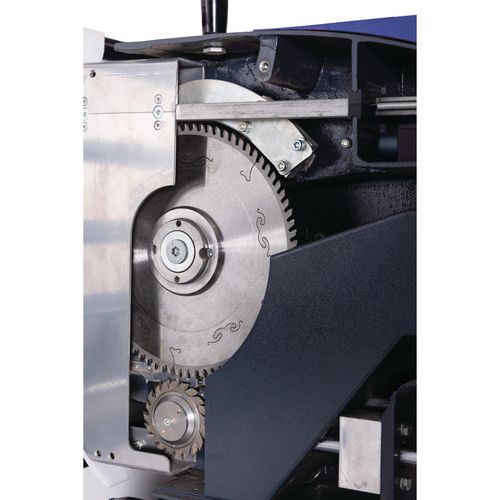

    • Scoring device for tear-free cutting quality

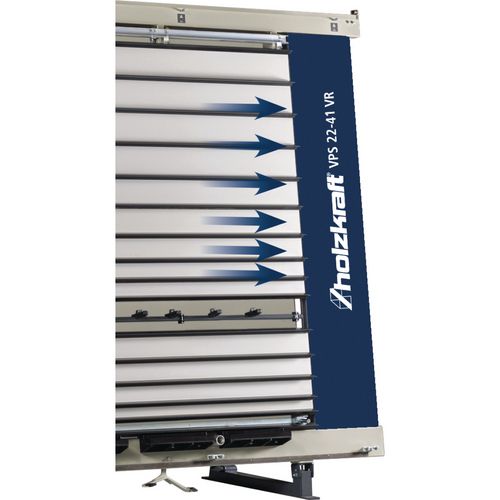

    • Automatic deflection of the slatted frame during the sawing process
    • Easy switching between vertical and horizontal processing
    • Continuous center workpiece support for maximum flexibility

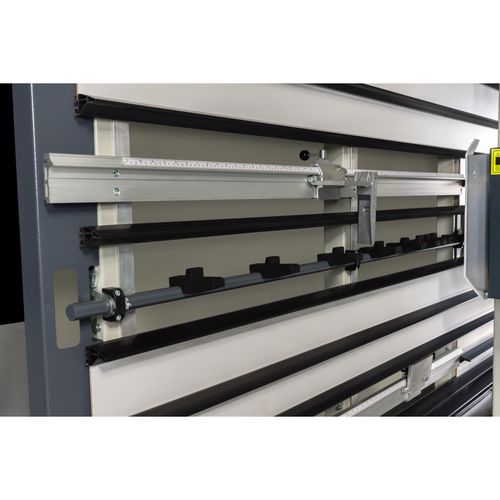

    • Two analog dimension stops
    • Pedal-liftable transport rollers for easy movement of heavy panels
    • Durable and precise material support for a stable workpiece position
    • Large opening for changing saw blades

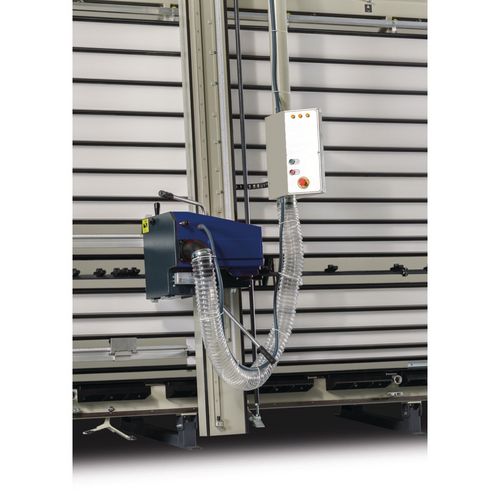

    • Integrated lateral dust extraction



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. cutting height2200 mm
    Max. cutting length4100 mm
    Cutting depth60 mm
    Saw blade diameter250 mm
    Saw blade speed4800 min¯¹
    Scoring blade diameter80 mm
    Scoring blade speed8500 min¯¹
    Number of stops2 St
    Sound pressure level79.1 dB(A)
    VPE1
    Dimensions and weights
    Length approx.5300 mm
    Width/depth approx.1800 mm
    Height approx.3000 mm
    Weight approx.700 kg
    Electrical Data
    Drive motor output3 kW
    Supply voltage400 V
    Mains frequency50 Hz

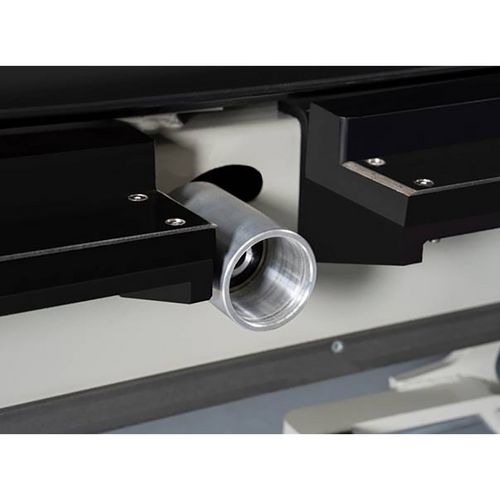

    Extraction port
    Extraction duct diameter100 mm
    Min. extraction flow rate1800 m³/h
    Min. extraction speed20 m/s
    Unit: pc(s).
    Packaging unit: 1







    Lower material supportMetal rollers
    Evasive slatted frameAutomatic
    Vertical measuring deviceanalog
    Horizontal measuring deviceanalog
    Panel positioningmanual
