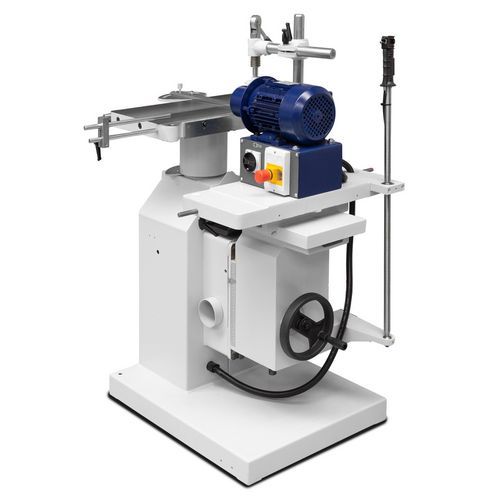

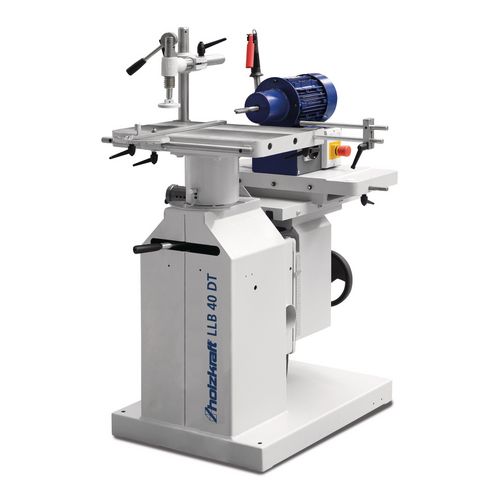

    Slot mortising machine

    LLB 40 DT

    With rotating work table

    6.625,00 EUR excl. Tax / pc(s).
    7.883,75 EUR incl. 19% Tax / pc(s).
    Promotional price *
    5.439,00 EUR excl. Tax / pc(s).
    6.472,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5320040

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

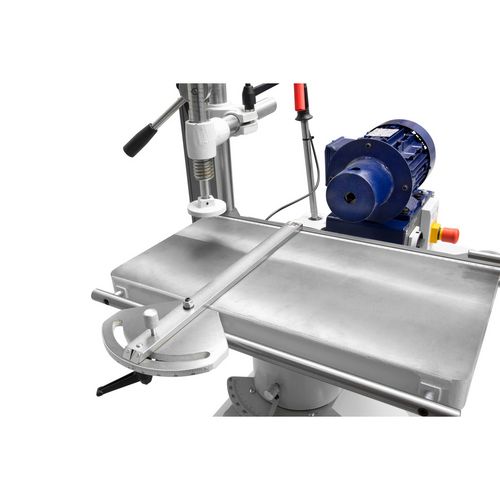

    • Work table can be rotated by 60 degrees on both sides
    • Easy to use via one-handed levers for quick and accurate work
    • Drill head stored on double lead
    • Clamp strikes allow the drilling head range to be adjusted easily and quickly
    • Height adjustment of the drill head via hand wheel with numerical display

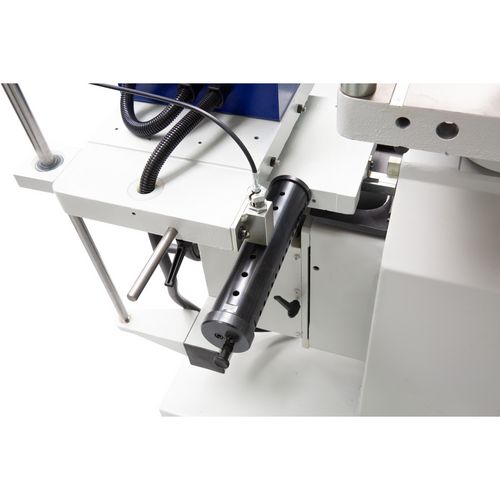

    • Standard dowel boring device with grid 16/22/25/32

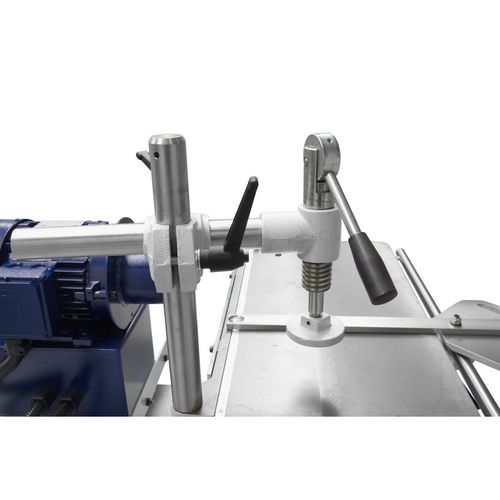

    • Manual centre spanner as standard
    • Stable steel grey casting construction
    • Powerful engine

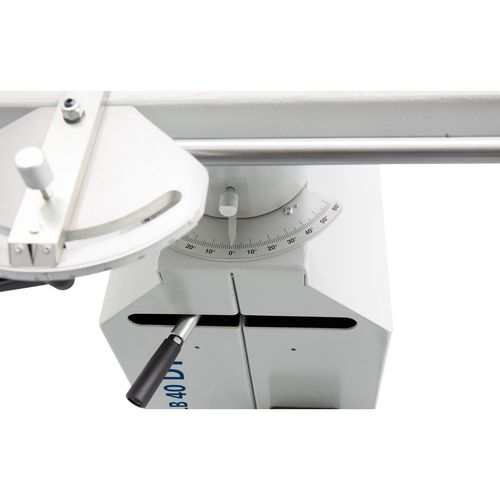

    • Working table rotating by ± 60 °
    • Simple one-handed lever control
    • Dowel boring device
    • Drill head height adjustable



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Drilling width240 mm
    Max. drilling depth at 90°180 mm
    Work table rotation±60 °
    Work table length565 mm
    Work table width315 mm
    Drill head height adjustment160 mm
    Tool clamping diameter0 – 20 mm
    Spindle speed(s)3000 min¯¹
    VPE1
    Dimensions and weights
    Length approx.1290 mm
    Width/depth approx.980 mm
    Height approx.1270 mm
    Weight approx.260 kg
    Electrical Data
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Manual eccentric clamp
