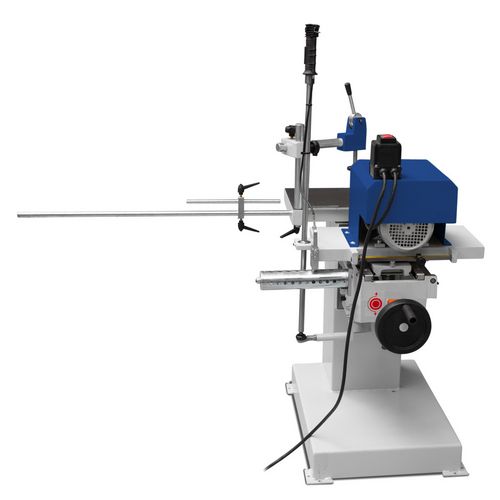

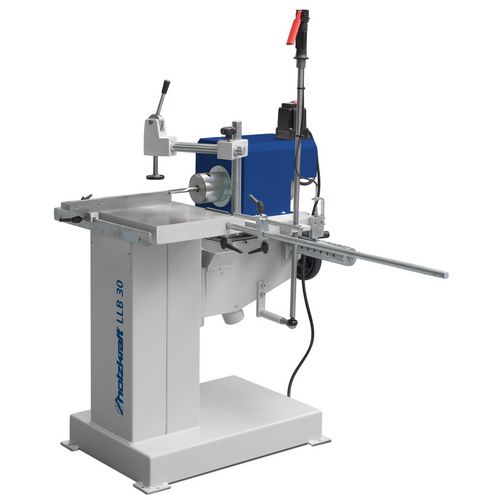

    Slot mortising machine

    LLB 30

    Entry level machine for long hole drilling

    3.799,00 EUR excl. Tax / pc(s).
    4.520,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.199,00 EUR excl. Tax / pc(s).
    3.806,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheitsdatenblatt 2

    Safetydatasheet 2

    Art.-No. 5320030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Easy to use via one-handed levers for quick and accurate work
    • Drill head stored on hardened prism guides with ball contact system

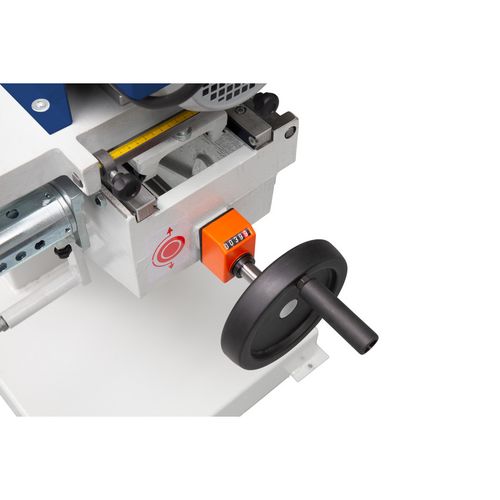

    • Height adjustment of the drill head via hand wheel with numerical display
    • Manual centre spanner as standard
    • Stable steel grey casting construction
    • Powerful engine
    • Standard dowel boring device with grid 16/22/25/32
    • Clamp strikes allow the drilling head range to be adjusted easily and quickly



    • Simple one-handed lever control
    • Dowel boring device
    • Drill head height adjustable



    Data sheets
    Sicherheitsdatenblatt 2
    Safetydatasheet 2
    Drilling width250 mm
    Max. drilling depth at 90°170 mm
    Work table length580 mm
    Work table width300 mm
    Drill head height adjustment200 mm
    Tool clamping diameter0 – 20 mm
    Spindle speed(s)2800 min¯¹
    VPE1
    Dimensions and weights
    Length approx.1500 mm
    Width/depth approx.920 mm
    Height approx.1400 mm
    Weight approx.160 kg
    Electrical Data
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Manual eccentric clamp
