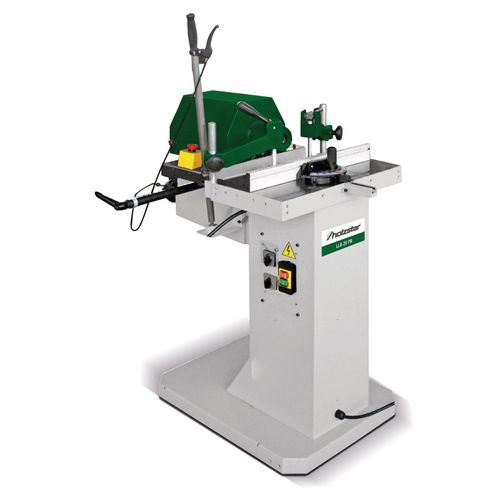

    Productimage for LLB 20 PB
    Brandimage to Product LLB 20 PB

    Slot mortising machine

    LLB 20 PB

    With right-left rotation, two spindle speeds and dowel drilling device

    1.639,00 EUR excl. Tax / pc(s).
    1.950,41 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.279,00 EUR excl. Tax / pc(s).
    1.522,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5906023

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Row drilling possible with dowel drilling device with grid pitch 16/22/25/32 mm
    • Wescott drill chuck 0 - 20 mm as standard
    • Right/left rotation and two spindle speeds selectable via rotary knob
    • Powerful motor with 3,8 kW
    • Easy one-hand lever operation of the worktable for fast and precise drilling
    • Roller guide enables precise movement of the worktable
    • Convenient, precise drill head height adjustment via a hand wheel
    • Set height of the worktable can be read off via a scale
    • Two eccentric clamps for secure workpiece fixing included
    • Angle stop adjustable by 60° on both sides
    • Underframe equipped with large, lockable tool compartment
    • Working table with dimensions 570x300mm, table extensions available as accessories



    • Dowel drilling device with grid pitch 16/22/25/32 mm
    • Wescott drill chuck 0 - 20 mm
    • Right-left rotation and two spindle speeds selectable via rotary knob
    • Convenient, precise drill head height adjustment via handwheel
    • Working table dimensions 570 x 300 mm, table extensions available as accessories



    Drilling width300 mm
    Max. drilling depth at 90°155 mm
    Work table length570 mm
    Work table width300 mm
    Drill head height adjustment160 mm
    Tool clamping diameter0 – 20 mm
    Spindle speed(s)2800/1400 min¯¹
    VPE1
    Dimensions and weights
    Length approx.950 mm
    Width/depth approx.700 mm
    Height approx.1340 mm
    Weight approx.140 kg
    Electrical Data
    Drive motor output2.8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Two eccentric clamps
    • Graduation stop +/- 60° with ruler
    • Hollow chisel 9.5mm (3/8")
    • 4 gouge holders 19, 20, 28, 30mm shank
