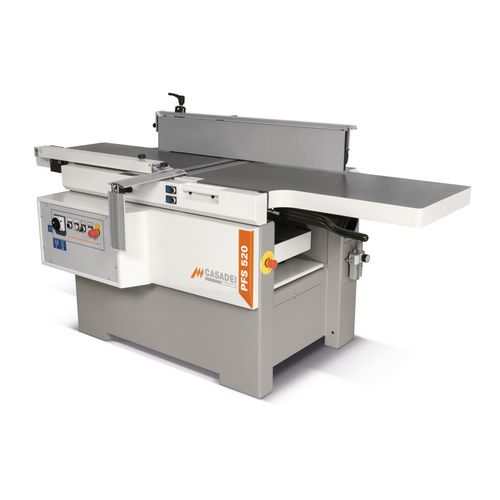

CASADEI PFS 520 TERSA

With 520 mm planing width, motorized thickness table adjustment and comfort conversion

20.590,00 EUR excl. Tax / pc(s).
24.502,10 EUR incl. 19% Tax / pc(s).

Promotional price *

16.869,00 EUR excl. Tax / pc(s).
20.074,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Art.-No. 5221633

Are you interested in this product?

Put a request

Find Trader

Productdetails

Sturdy cast iron steel construction
Large, ribbed cast iron dressing tables
Smooth running due to high dead weight
Four feed speeds
Motorized thicknessing table stroke with two speeds and digital display
Link pressure beam in the infeed

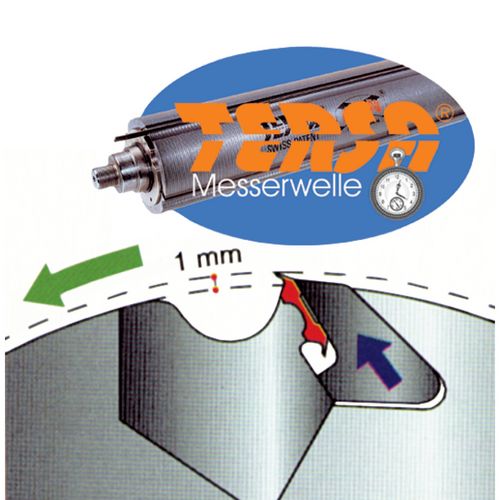

Precision bearing mounted four-knife shaft,

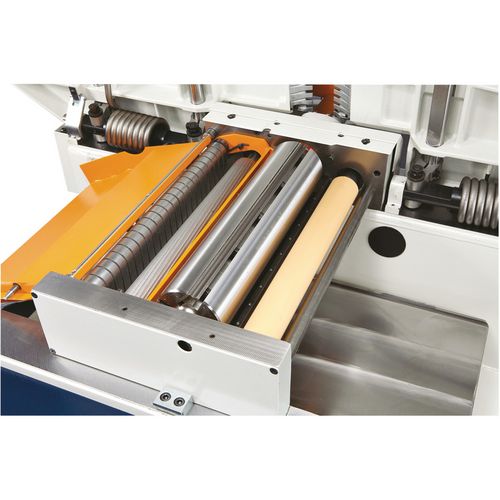

Helical toothed steel infeed roller for particularly even and gentle wood feed
Pull-out roller with rubber coating

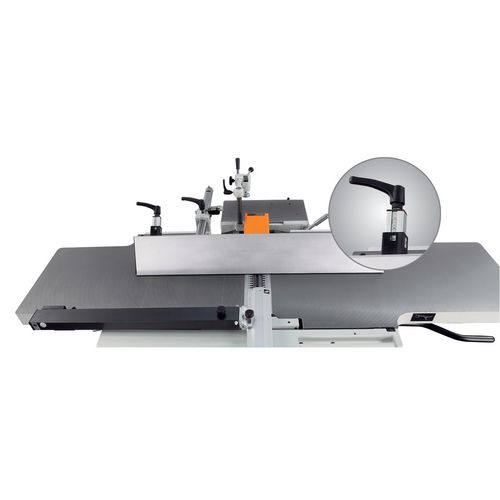

Large dressing fence, tiltable 90 to +45
Auxiliary fence as standard
Powerful industrial motor

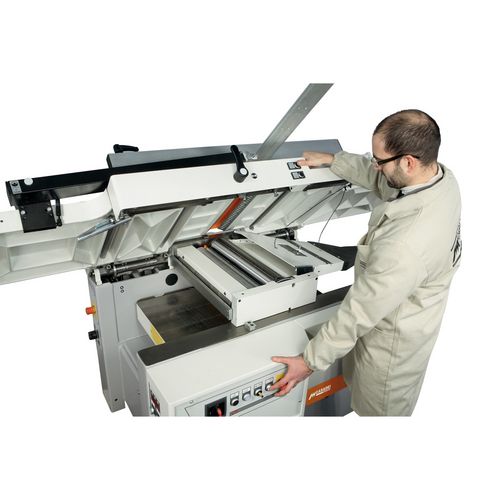

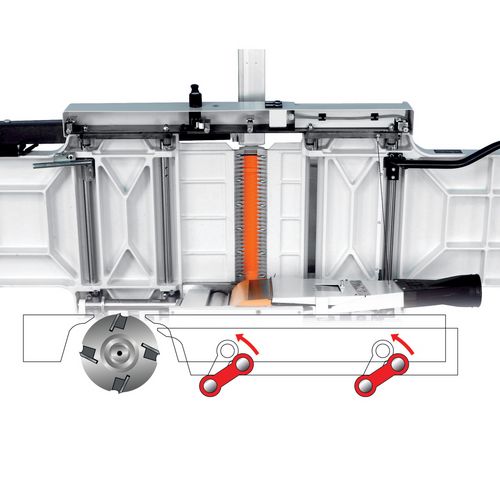

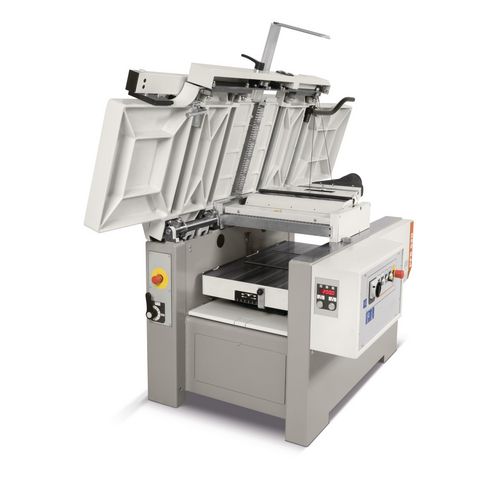

Pneumatic quick changeover system with pneumatic lifting and lowering of the dressing table
The connection position of the suction is always in the same place for both planing and thicknessing, so there is no need for an additional suction hose or awkward plugging and routing around the machine

Dimensions and weights
Length approx.	2300 mm
Width/depth approx.	1100 mm
Weight approx.	980 kg

Electrical Data
Drive motor output	7 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter thickness	120 mm

Feed
Speed	5/8/12/18 m/min

Jointing
Task table length	1200 mm
Max. cutting depth	6 mm
Planing stop pivoting range	90 – 45 °

Planing knife shaft
Type	TERSA
Number of planing blades	4 St
Speed	5000 min¯¹
Max. planing width	520 mm

Thickness
Working height min.	3.5 mm
Working height max.	250 mm
Max. cutting depth	8 mm

VPE

Unit: pc(s).
Packaging unit: 1
