| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 2000 mm |
| Weight approx. | 510 kg |
Table router
minimax twf 55es M digital
Professional handyman machine with motorized height and incline adjustment of the milling spindle and four speeds
13.350,00
EUR excl. Tax / pc(s).
15.886,50 EUR incl. 19% Tax / pc(s).
15.886,50 EUR incl. 19% Tax / pc(s).
Promotional price *
9.999,00 EUR excl. Tax / pc(s).11.898,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5502263
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Stable steel gray cast iron construction
- Anodized aluminum sliding carriage

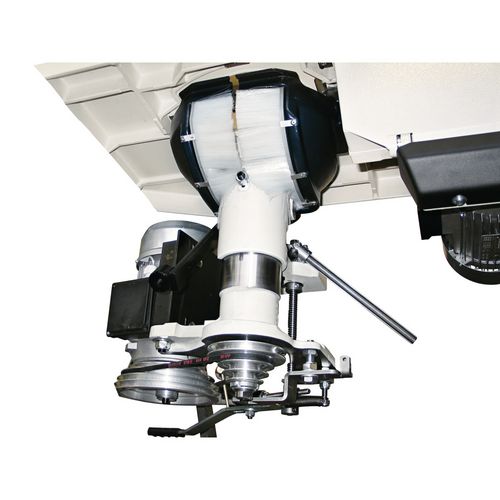

- Large dimensioning milling unit made of cast iron, swiveling to -45 ° to the rear
- Four cutting speeds from 3500 to 10000 min¯¹
- Right-left rotation as standard
- Display height and inclination 1/10 mm exactly
- Quick and easy change of speed via eccentric tension
- Solid and precise gray cast iron table, stress-free and post-annealed for lasting precision
- Powerful 5.0 kW industrial engine
- Curved cutting guard in scope of supply
- Made in Italy
- Anodized aluminum sliding carriage
- Large dimensioning milling unit made of cast iron, swiveling to -45° to the rear
- Four cutting speeds from 3500 to 10000 min¯¹
- Right-left rotation as standard
- Display height and inclination 1/10 mm exactly
- Powerful 5.0 kW industrial engine
| Electrical Data | |
|---|---|
| Drive motor output | 5.0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Installation information | |
|---|---|
| Space requirement length | 2800 mm |
| Space requirement width/depth | 2910 mm |
| Space requirement explanation | The dimensions take into account maximum travel distances or useful lengths. |
| Machine body length | 1200 mm |
| Machine body width/length | 846 mm |
| Work area length | 1600 mm |
| Work area width/depth | 2300 mm |
| Explanation of work area | Please add the given dimensions with the required space to obtain the free space recommended for the machine. |
| Milling cutter diameter max. | |
|---|---|
| Max. tool diamter | 240 mm |
| Max. tool diamter lowerable | 230 mm |
| Profile milling | 240 mm |
| Tenoning milling | 320 mm |
| Milling spindle | |
|---|---|
| Angle | 0 to -45 ° |
| Usable length | 125 mm |
| Speed(s) | 3500/6000/8000/10000 min¯¹ |
| Speed display | LED on the machine front |
| Arbor diameter | 30 mm |
| Work table | |
|---|---|
| Length | 1200 mm |
| Width | 530 mm |
| Table height | 900 mm |
| Sliding carriage length | 1200 mm |
| Sliding carriage width | 360 mm |
| Sliding carriage height | 142 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Aluminum Fräsanschlagbacken
- Bogenfrässchutzhaube
- Milling stop with downholder, and protective cover, aluminum milling stop jaws
- Speed indicator on the front of the machine via LED
- Aluminum sliding table
- Support boom on swivel arm
- Aluminum telescopic fence
- with professional folding stops
- Eccentric
- Handle for sliding carriage
- Motorized height-adjustable and swiveling milling spindle
- Digital display of set values for high repeatability
- Speed indicator on the front of the machine via LED
| Aluminum sliding table | ✔ |
| Milling stop | Heavy professional version with hold-down device, protective cover and aluminum milling stop jaws |
| Telescopic miter fence | with two folding stops |
| Outrigger table | ✔ |
| Curved cutting guard | ✔ |
| Eccentric clamp | ✔ |
| Tilt adjustment of the spindle | motorized, with digital display |
| Control | M Digital: motorized height and tilt adjustment of the milling unit with digital display |
| Position of the controls | Control panel in the machine body |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
