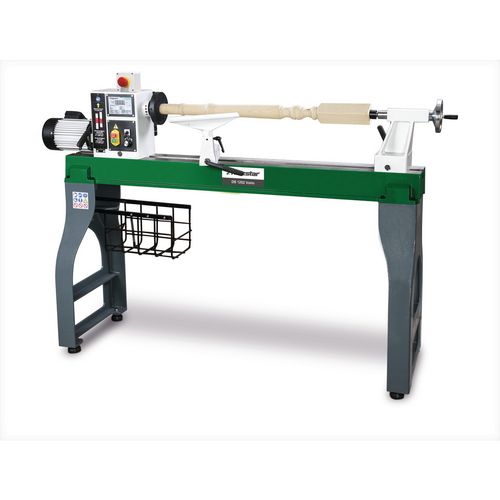

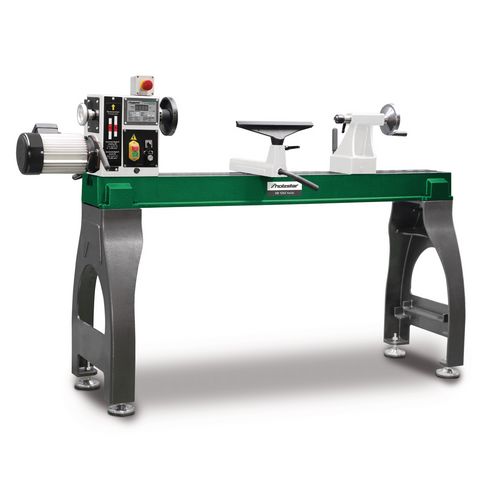

    Woodturning lathe

    DB 1202 Vario

    Turning machine with infinitely variable speed control

    2.499,00 EUR excl. Tax / pc(s).
    2.973,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.999,00 EUR excl. Tax / pc(s).
    2.378,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5921202

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • The torsion-resistant cast iron machine bed ensures smooth running and precision
    • Tailstock and headstock are also made of sturdy gray cast iron
    • Drive can be moved freely on the machine bed
    • Tailstock with quick release lever and handwheel
    • Tailstock standard with revolving center point
    • Tailstock quill with bore for machining long workpieces
    • The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping

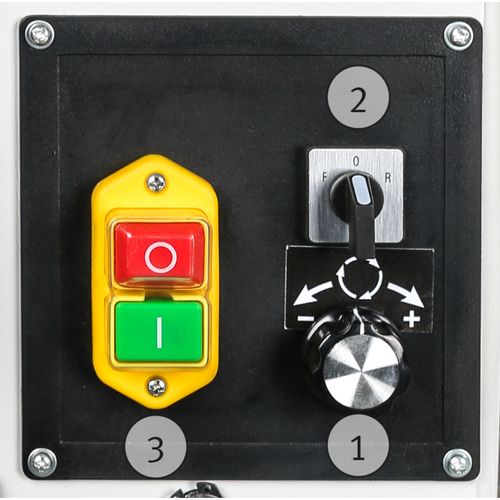

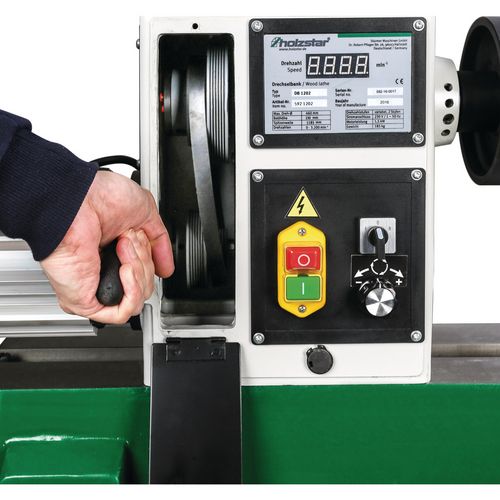

    • Variable speed regulation from 0 - 3,200 rpm in two speed levels: 0 - 1,200 and 0 - 3,200 rpm
    • A digital display shows the currently selected speed
    • Right-left rotation as standard



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. turning diameter460 mm
    Speeds0 – 3200 min¯¹
    Speed stages2
    Speed controlElectronically variable
    Travel of tailstock sleeve110 mm
    VPE1
    Dimensions and weights
    Length approx.2060 mm
    Width/depth approx.500 mm
    Height approx.1200 mm
    Weight approx.189 kg
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Revolving center of gravity
    • Digital display
    • Cast iron machine bed
    • Tailstock with quick release lever and handwheel
