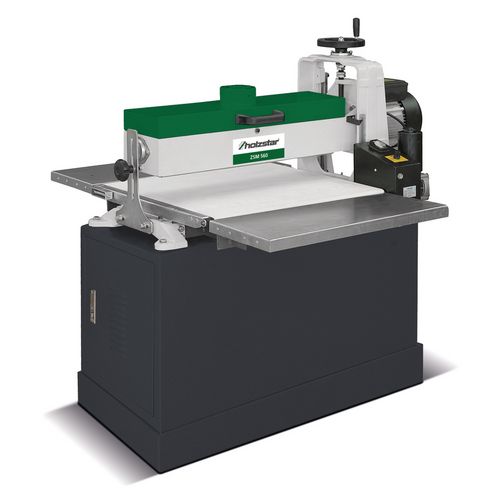

    Cylindrical sanding machine

    ZSM 560

    For surface grinding of wide workpieces

    1.499,00 EUR excl. Tax / pc(s).
    1.783,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.169,00 EUR excl. Tax / pc(s).
    1.391,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5903560

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Feed rate infinitely adjustable via potentiometer
    • Stable construction for high sanding accuracy
    • Table extension at the infeed and outfeed
    • Simple height adjustment of the sanding unit via crank handle
    • Lateral sanding head holder removable for processing wider workpieces
    • Easy replacement of the sanding paper
    • Closed base with cabinet system and storage compartment



    • Steplessly adjustable feed via potentiometer
    • Simple height adjustment via crank
    • Simple replacement of the sanding paper
    • Closed base



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1070 mm
    Width/depth approx.1080 mm
    Height approx.1150 mm
    Weight approx.116 kg
    Electrical Data
    Feed motor output80 W
    Drive motor output1.1 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Feed unit
    Feed speed0 – 3.5 m/min
    Sanding machine
    Sanding belt length3280 mm
    Sanding belt width78 mm
    Sanding surface width555 mm
    Max. sanding width555 mm
    Max. sanding height80 mm
    Work top(s)
    Work table length592 mm
    Work table width505 mm
    Table height695 mm
    Workpiece
    Min. height5 mm
    Max. height80 mm
    Min. length120 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • On-board tool
    • sanding roller K80
