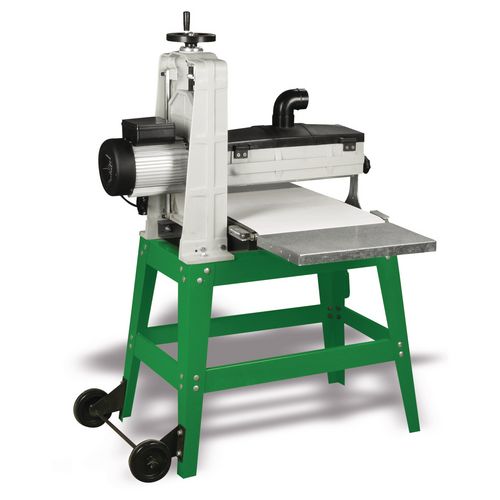

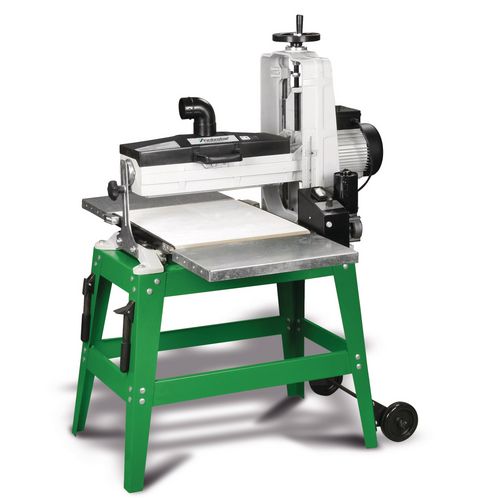

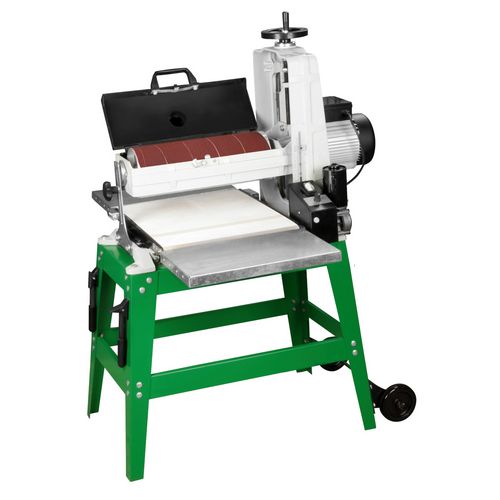

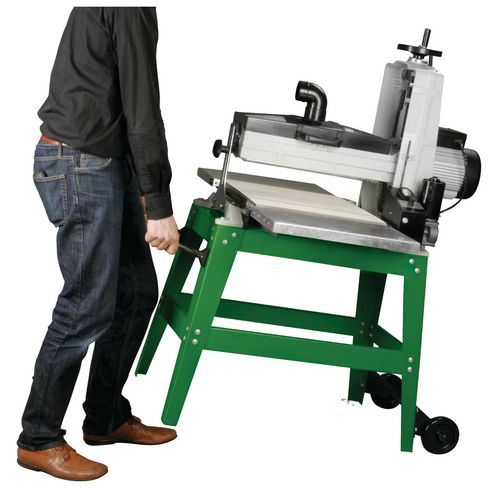

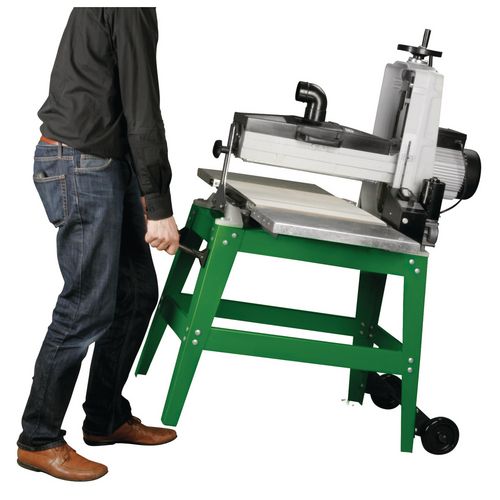

    Cylindrical sanding machine

    ZSM 405

    For surface sanding of workpieces up to 405 mm wide

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5901405

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • The ideal cylindrical sanding machine for ambitious DIY enthusiasts
    • Continuously adjustable feed speed of 0 - 3.5 m/min for optimum sanding results

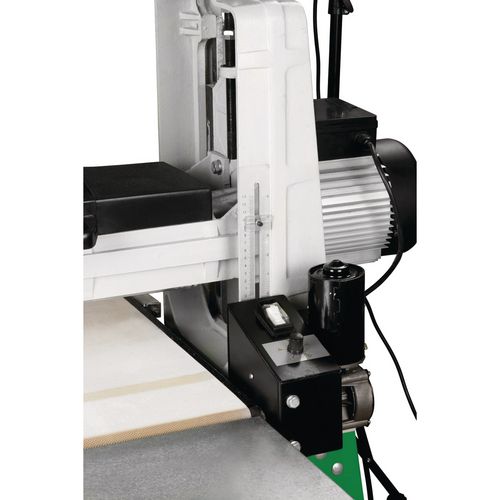

    • The sanding unit is adjusted quickly and precisely to the workpieces by height adjustment crank and scale
    • Standard with connection for suction device
    • Suitable for the use of commercial abrasive cloths



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1030 mm
    Width/depth approx.950 mm
    Height approx.1300 mm
    Weight approx.85 kg
    Electrical Data
    Drive motor output1,5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Feed unit
    Feed speed0 - 3,5 m/min
    Sanding machine
    Max. sanding width405 mm
    Sanding roller width410 mm
    Workpiece
    Min. height5 mm
    Max. height130 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Connection for suction device
    • Front table extension
    • Rear table extension
    • Retractor
