Oscillating spindle sanding machine
OSS 100
For sanding shaped parts, inner radii, round edges, recesses or cut-outs
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5903500
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Highest precision and stability, even with larger workpieces, through large and solid cast iron table
- Safe and clean working thanks to integrated extraction nozzle for connection of an external suction unit
- Practical storage for accessories and assembly tools
- Powerful 450 Watt motor with enough power for all wood materials
- Easy transport and storage due to compact and lightweight design
- Good surface due to rotating and oscillating spindle
| Dimensions and weights | |
|---|---|
| Length approx. | 390 mm |
| Width/depth approx. | 330 mm |
| Height approx. | 450 mm |
| Weight approx. | 14 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 0,45 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 38 mm |
| Sanding machine | |
|---|---|
| Max. sanding height | 116 mm |
| Sanding sleeves diameter | 13, 19, 26, 38, 51, 76 mm |
| Sliding sleeves Length | 115 mm |
| Spindle diameter | 12.7 mm |
| Oscillation stroke | 16 mm |
| Oscillation | 58 min¯¹ |
| Work top(s) | |
|---|---|
| Work table length | 370 mm |
| Work table width | 295 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

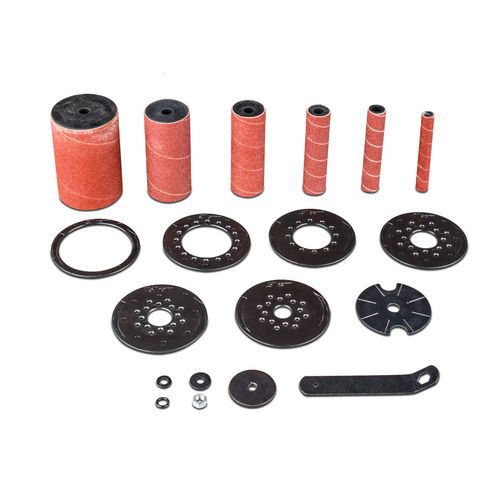

- 6 sanding sleeves K80, Ø 13/19/26/38/51/76 mm
- 5 rubberized sanding rollers, length 115 mm, Ø 19/26/38/51/76 mm
- 6 table inserts, Ø 13/19/26/38/51/76 mm
- 3 spindle discs, Ø 15/21/45 mm
- assembly tool
