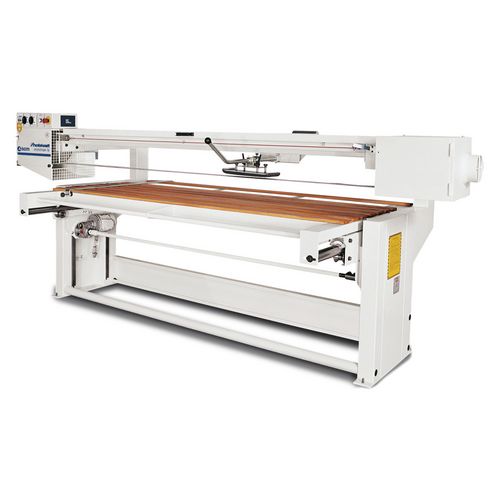

    Productimage for LBSM LS 3000
    Brandimage to Product LBSM LS 3000

    Long belt sander

    LBSM LS 3000

    With electric height adjustment in 2500 or 3000 mm length. Particularly heavy professional version.

    8.150,00 EUR excl. Tax / pc(s).
    9.698,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    6.479,00 EUR excl. Tax / pc(s).
    7.710,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5506030

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Fast tape tension via lever
    • Upper band support with graphite coating
    • 250 mm balanced belt rollers ensure optimum drive.
    • With electric height adjustment
    • With extraction and noise protection
    • With noise protection certificate
    • At two speeds
    • Fits to surfaces through a swiveling sanding pad
    • Beveled surfaces
    • Standard with right and left rotation
    • The fast belt tension allows quick and easy changing of the sanding belts.
    • Delivery partially pre-assembled



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.4540 mm
    Width/depth approx.1510 mm
    Height approx.1510 mm
    Weight approx.475 kg
    Electrical Data
    Height adjustment motor power0.37 kW
    Extraction motor power0.75 kW
    Drive motor output3.3/4.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Sanding machine
    Sanding belt length8100 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)9/18 m/s
    Sanding shoe length360 mm
    Sanding shoe width150 mm
    Work top(s)
    Work table height adjustment620 mm
    Max. working width on table900 mm
    Workpiece
    Max. height590 mm
    Max. workpiece height longer than work table180 mm
    Explanation about max. workpiece height longer than work tableMachining of the workpiece with overhang on the right above the worktable possible
    VPE1
    Unit: pc(s).
    Packaging unit: 1
