    Long belt sander

    LBSM 2505 ESE

    In 2500 and 3000 mm length with manual or electric table height adjustment

    8.999,00 EUR excl. Tax / pc(s).
    10.708,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    7.599,00 EUR excl. Tax / pc(s).
    9.042,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5342552

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Robust design also allows the machining of longer workpieces
    • Swiveling sanding unit, thus also usable as edge sanding machine

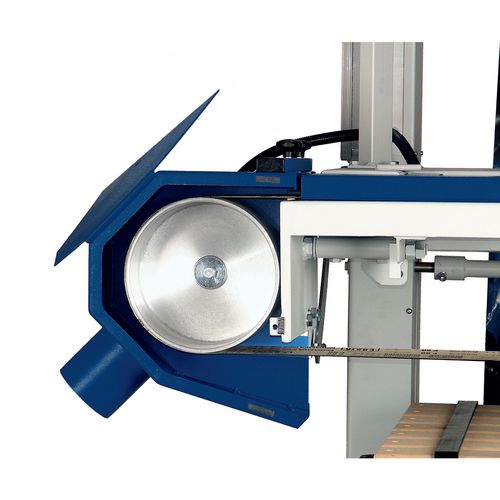

    • 225 mm balanced belt rollers ensure low-vibration drive.
    • Easy adjustment of the sanding belt
    • High belt speed of 17 m / s
    • Forward and reverse running
    • Upper sanding sole with graphite coating
    • Sanding pad 4-fold sprung

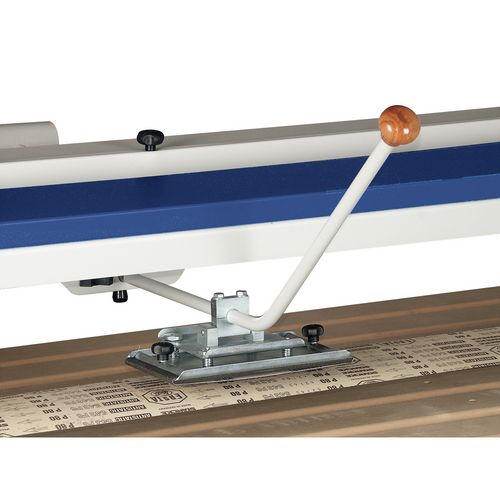

    • With movable sanding shoe for sloping surfaces
    • Smooth-running sanding table even under heavy load due to heavy workpieces
    • Optimal price-performance ratio


    Additional equipment ESE

    • Standard with electric table height adjustment
    • Divided table for unfolding for special edge sanding
    • Drawer sander
    • Integrated work table lighting



    Room amenities

    • 225 mm balanced belt rollers ensure optimum and low-vibration drive
    • Belt speed 17 m / s


    • With swiveling professional sanding pad for sloping surfaces
    • 4-fold sprung


    • Standard with electric table height adjustment

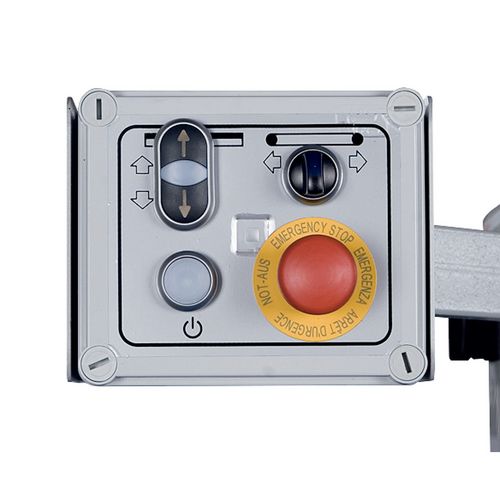

    • Controls ergonomically placed on a separate control panel


    • Standard with drawer sanding device

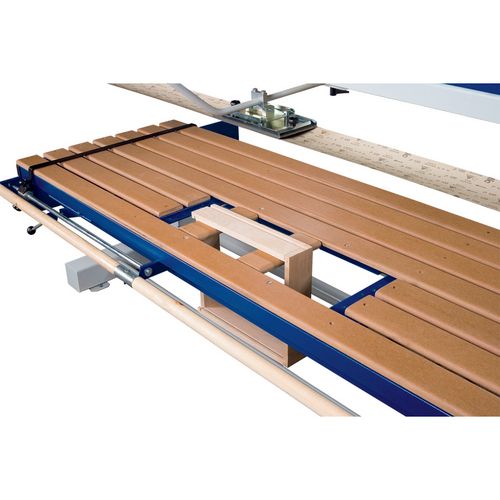

    • Split table for folding up for special edge sanding applications



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.3750 mm
    Width/depth approx.1250 mm
    Height approx.1730 mm
    Weight approx.520 kg
    Electrical Data
    Height adjustment motor power0.37 kW
    Drive motor output3,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter160/160 mm
    Sanding machine
    Sanding belt length7000 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)17 m/s
    Sanding shoe length270 mm
    Sanding shoe width150 mm
    Work top(s)
    Work table height adjustment550 mm
    Work table transverse stroke690 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
