| Dimensions and weights | |
|---|---|
| Length approx. | 1320 mm |
| Width/depth approx. | 600 mm |
| Height approx. | 1020 mm |
| Weight approx. | 78 kg |

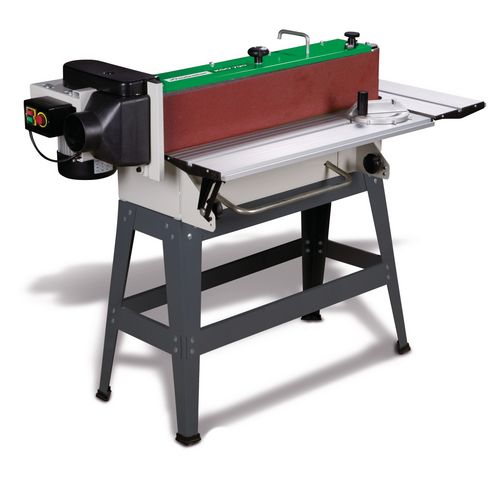

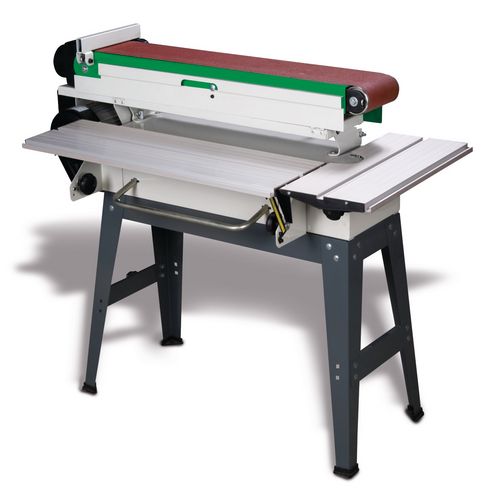

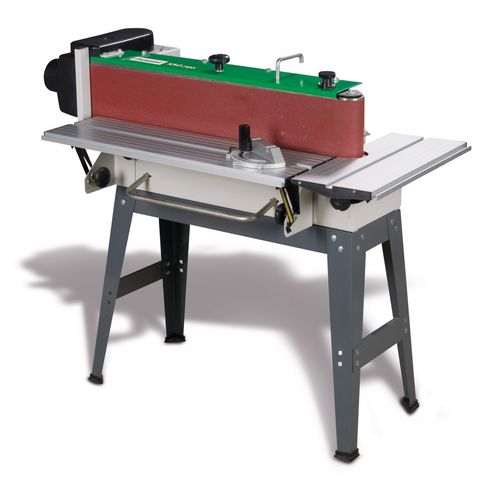

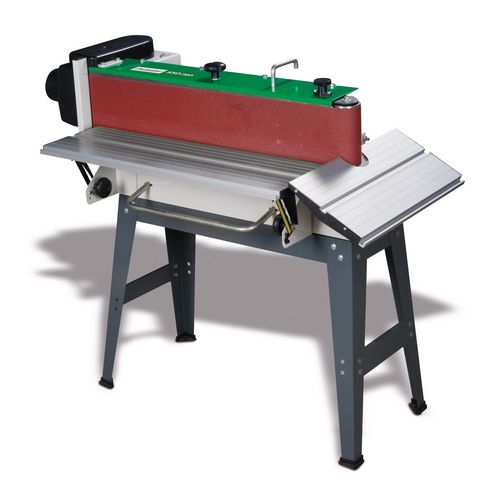

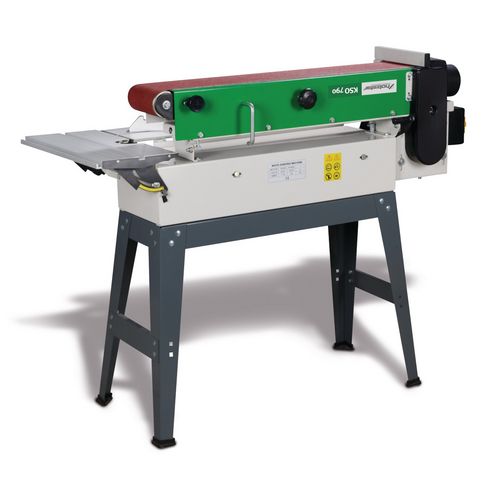

Edge sanding machine
KSO 790 (400V)
With swiveling sanding unit and 2 adjustable work tables
789,00
EUR excl. Tax / pc(s).
938,91 EUR incl. 19% Tax / pc(s).
938,91 EUR incl. 19% Tax / pc(s).
Promotional price *
619,00 EUR excl. Tax / pc(s).736,61 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5900790
Are you interested in this product?
Put a request
Find Trader
Productdetails

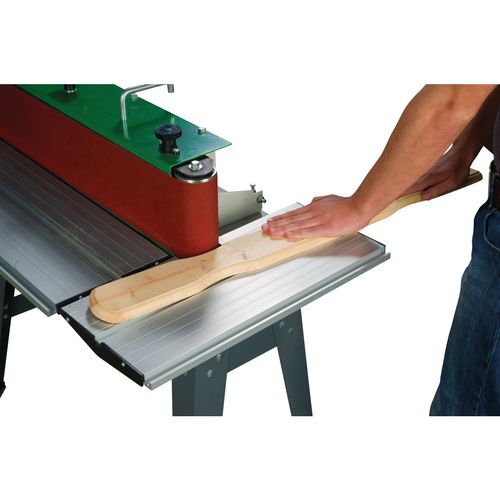

- Longitudinal and transverse table for mitres from 0 ° to 45 ° steplessly swiveling

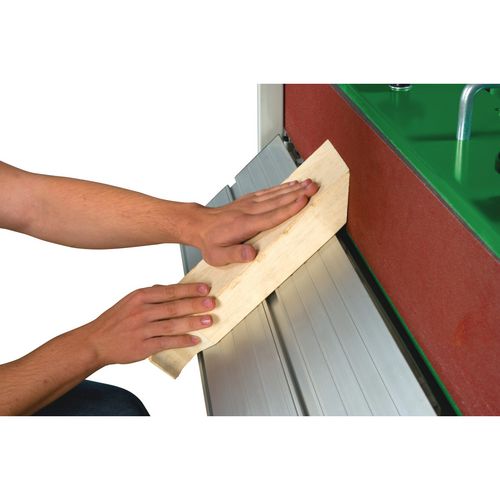

- Horizontally and vertically usable sanding unit, thus wide range of application vertical sanding possible
- Abrasive belt quick-voltage
- Standard with cross table for contour sanding, swiveling up to 45 °
- Longitudinal table is height-adjustable by 110 mm for optimum utilization of the sanding belt width
- Incl. infinitely adjustable miter fence
- Graphite coating on the sanding sole for a higher sliding property of the sanding belt and longer service life
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 100 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 2010 mm |
| Sanding belt width | 152 mm |
| Circumferential belt speed(s) | 11 m/s |
| Sanding surface length | 823 mm |
| Sanding surface width | 152 mm |
| Work top(s) | |
|---|---|
| Work table height adjustment | 100 mm |
| Longitudinal table length | 783 mm |
| Longitudinal table width | 221 mm |
| Longitudinal table height adjustment | 80 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Miter
- Sanding belt, grit K80
