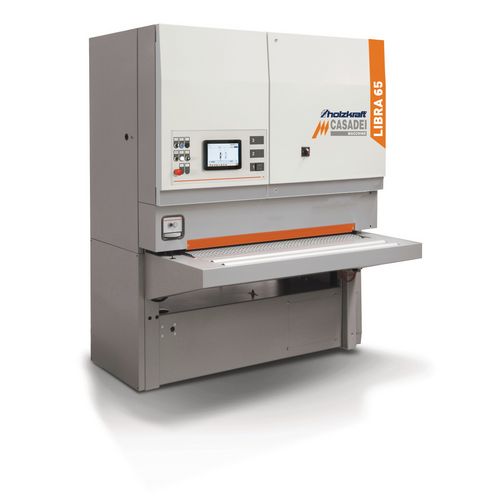

CASADEI LIBRA 65/3 RRTC 135

• High-quality results in the processing of solid wood, veneer or raw material as well as for lacquer sanding
• Heavy version of the entire machine
• Operator panel with dust-tight membrane keypads on the front of the machine
• Optimum cooling and long durability of the sanding belts (sanding belt length 2620 mm)
• Automatic star-delta start
• Motorized table height adjustment
• Digital display for the working height
• Electronically controlled sanding belt oscillation with reduced compressed air requirement
• Natural rubber feed carpet with negative profile
• Automatic carpet centering
• Support table with two rollers in the infeed and outfeed of the feed carpet
• Rubber rollers, in front of and behind each working unit
• Flexible steel pressure rail in front of the first unit
• Carpet feed via gear motor with two speeds
• Pneumatic belt tension per unit with decimal correction possibility of the grain / belt thickness
• Functional check on the control panel for circuit breaker, thermal protection switch, operating pressure and brakes
• Optional RTC / RRTC design with planer shaft unit instead of the first sanding unit (with 520 indexable inserts with four cutting edges each)

Execution RRR

• 1. Unit R With diagonally grooved steel roller Ø 140 mm and fine adjustment
• 2. Aggregate R with rubber-coated roller 65 Sh Ø 140 mm and fine adjustment
• 3. Aggregate R with rubber-coated roller 45 Sh Ø 250 mm and fine adjustment

Execution RRTC

• 1. Unit R With diagonally grooved steel roller Ø 140 mm and fine adjustment
• 2. Aggregate R with rubber-coated roller 65 Sh Ø 140 mm and fine adjustment
• 3. Combination unit TC with rubber-coated roller 45 Sh Ø 140 mm and fine adjustment
• Hard sanding pad (with screwed on graphite pad on exchangeable insert, fine adjustment
• Switching the sanding shoe on / off from the control panel via pneumatic cylinder
