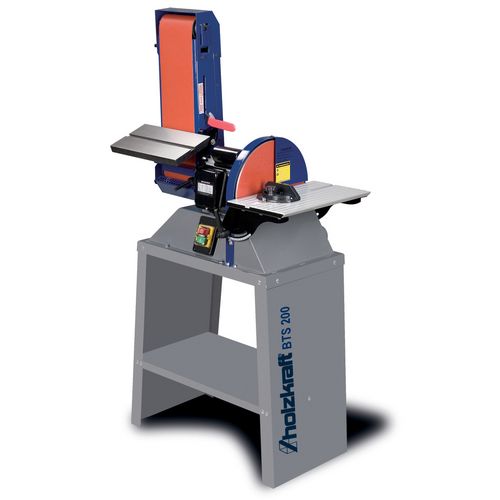

    Belt and disc sander

    BTS 200

    Compact sander for working on surfaces, edges and curves

    799,00 EUR excl. Tax / pc(s).
    950,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5902200

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Large dimensioned, swiveling work desks
    • Standard, from -30 ° to + 30 ° adjustable miter fence on both work tables usable
    • Powerful engine
    • Belt sanding unit can be swiveled from 0 to 90 °
    • Quick change of sanding belts via quick release system
    • Easy tape adjustment
    • Rubberized drive roller against slipping of the sanding belt



    Dimensions and weights
    Length approx.830 mm
    Width/depth approx.620 mm
    Height approx.1340 mm
    Weight approx.53 kg
    Electrical Data
    Fuse protection15 A
    Absorbed power drive motor1.61 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter63/63 mm
    Sanding machine
    Sanding belt length1219 mm
    Sanding belt width152 mm
    Circumferential belt speed(s)12 m/s
    Sanding disc diameter305 mm
    Work top(s)
    Pivoting-15 – 45 °
    Work table disc sanding machine length315 mm
    Work table disc sanding machine width155 mm
    Work table belt sanding machine length400 mm
    Work table belt sanding machine width225 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • miter
    • 1 x sanding belt 1219 x 150 mm, K 100
    • 1 x sanding sheet Ø 300 mm, K 80
