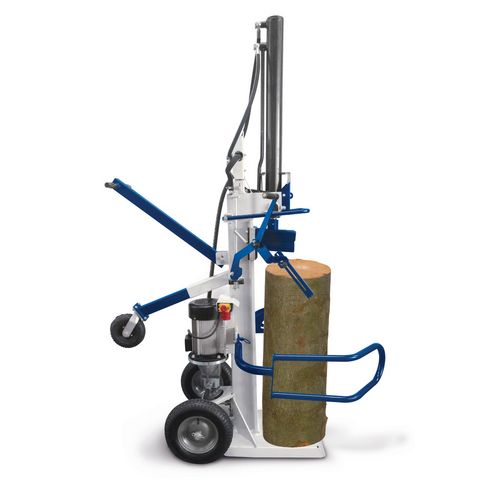

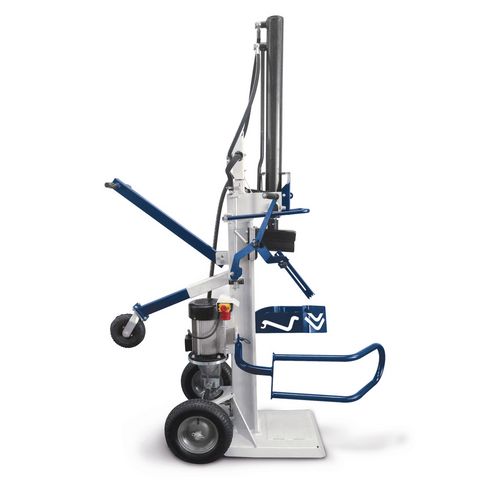

    Log splitter

    HSE 16-1100

    Robust and solid vertical model, for demanding users

    1.629,00 EUR excl. Tax / pc(s).
    1.938,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.399,00 EUR excl. Tax / pc(s).
    1.664,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheitsdatenblatt 2

    Sicherheitsdatenblatt

    Safetydatasheet 2

    Safetydatasheet

    Art.-No. 5981016

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Vertical version for splitting short and meter wood
    • Low base plate for easy, low-fatigue loading of large trunks
    • Mechanical stem lifting device puts heavy trunks in position in a back-gentle position
    • With split-material catch bar
    • Fast, tool-free gap height adjustment
    • Powerful industrial hydraulic system
    • Phase changer on all 400 V models
    • Two-hand safety circuit

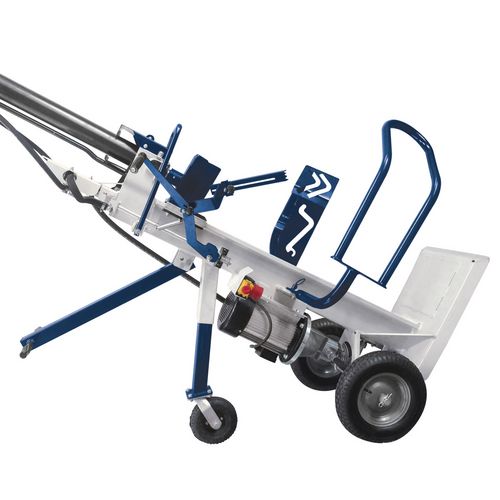

    • Convenient transport with a hand drawbar due to the standard chassis with large pneumatic wheels and an additional support wheel
    • Shock and scratch resistant due to high-quality powder coating
    • Space-saving storage thanks to easy-to-reduce cylinders



    • Hand drawbar
    • Suspension with extra large pneumatic tires



    Data sheets
    Sicherheitsdatenblatt 2
    Sicherheitsdatenblatt
    Safetydatasheet 2
    Safetydatasheet
    Device data
    Max. splitting force15.3 t
    Min. splitting length560 mm
    Max. splitting length1100 mm
    Min. split material diameter80 mm
    Max. split material diameter300 mm
    Dimensions and weights
    Length approx.1050 mm
    Width/depth approx.1550 mm
    Height approx.2500 mm
    Weight approx.258 kg
    Drive
    Driveelectric motor
    Drive motor input4,5 kW
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Hydraulic system
    Oil tank capacity18 l
    VPE1
    Unit: pc(s).
    Packaging unit: 1
