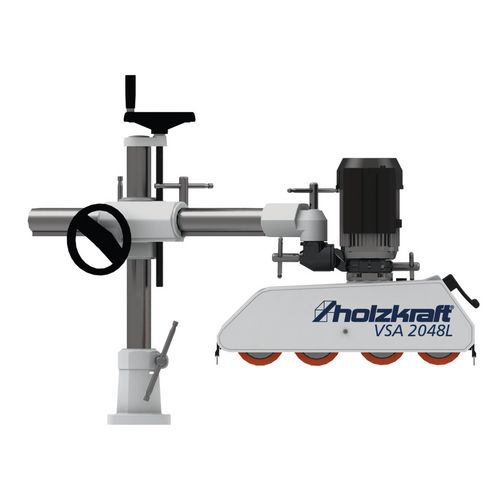

    Productimage for VSA 2048 L
    Brandimage to Product VSA 2048 L

    Feeder

    VSA 2048 L

    with four rollers and eight speeds

    1.239,00 EUR excl. Tax / pc(s).
    1.474,41 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.149,00 EUR excl. Tax / pc(s).
    1.367,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Safety and warning notices

    Art.-No. 5119048

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Consistent feed speed without loss of powerRight
    • and left rotationIncludes
    • stand, individually swivel and adjustable for horizontal and vertical useEight
    • speeds possible, speed selection via switch and change gear/ul>
    • Consistent feed speed without loss of powerRight
    • and left rotationIncludes
    • stand, individually swivel and adjustable for horizontal and vertical useEight
    • speeds possible, speed selection via switch and change gear/ul>
    Data sheets
    Safety and warning notices
    Number of feed rollers4
    Feed speed2 33 m/min
    Gears2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min
    Max. extension1050 mm
    Roller diameter120 mm
    Roller width60 mm
    Spring stroke of rollers20 mm
    VPE1
    Dimensions and weights
    Length approx.1665 mm
    Width/depth approx.220 mm
    Height approx.540 mm
    Weight approx.73.5 kg
    Explanation Weight approx.Tripod included
    Electrical Data
    Drive motor output0.75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1







    Stürmer Maschinen GmbH
    Dr.-Robert-Pfleger-Str. 26
    96103 Hallstadt
    Deutschland / Germany
    info@stuermer-maschinen.de

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
