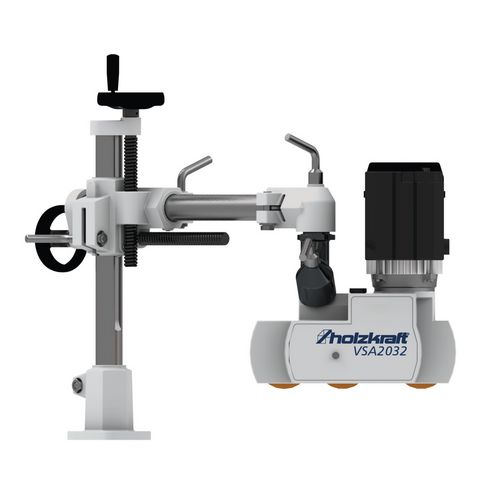

    Productimage for VSA 2032
    Brandimage to Product VSA 2032

    Feeder

    VSA 2032

    with three rollers and four speeds

    625,00 EUR excl. Tax / pc(s).
    743,75 EUR incl. 19% Tax / pc(s).
    Promotional price *
    579,00 EUR excl. Tax / pc(s).
    689,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Safety and warning notices

    Art.-No. 5119032

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Uniform feed rate without loss of force
    • Right and left rotation
    • Tripod included, individually swiveling and adjustable for horizontal and vertical use
    • Four speeds possible, speed selection via switch and change gears



    • Uniform feed rate without loss of force
    • Right and left rotation
    • Tripod included, individually swiveling and adjustable for horizontal and vertical use
    • Four speeds possible, speed selection via switch and change gears



    Data sheets
    Safety and warning notices
    Number of feed rollers3
    Feed speed4 18 m/min
    Gears4 / 8 / 9 / 18 m/min
    Max. extension660 mm
    Roller diameter80 mm
    Roller width28 mm
    Spring stroke of rollers15 mm
    VPE1
    Dimensions and weights
    Length approx.1222 mm
    Width/depth approx.152 mm
    Height approx.566 mm
    Weight approx.32.5 kg
    Explanation Weight approx.Tripod included
    Electrical Data
    Drive motor output0.18 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
