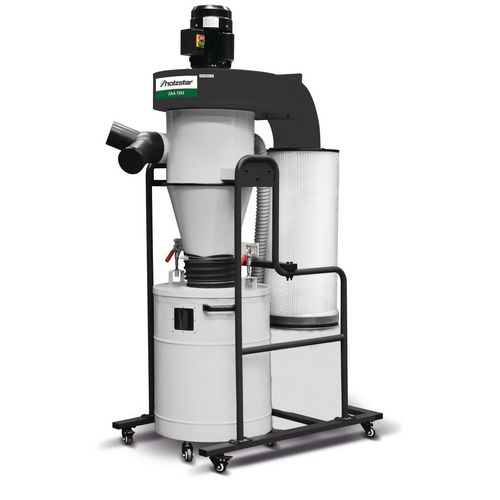

    Productimage for ZAA 1353
    Brandimage to Product ZAA 1353

    Cyclone extractor

    ZAA 1353

    High-performance extraction system based on the cyclone filtration system

    1.399,00 EUR excl. Tax / pc(s).
    1.664,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.099,00 EUR excl. Tax / pc(s).
    1.307,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5924135

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Effective cyclone technology with 2-stage filtration
    • Separation of larger impurities in the waste container and fine dust in the cartridge filter
    • Sight glass for checking the fill level in the container
    • Manual filter cleaning via rotary crank for consistently high extraction performance
    • Flexible maneuvering thanks to swivel castors on the extraction unit and filling container
    • Easy emptying of the mobile filling container thanks to quick-release fastener



    • Clean exhaust air due to separation of dust in the cyclone separator and cartridge filter
    • Manual filter cleaning via rotary crank for consistently high suction power
    • Easy emptying of the mobile container



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Chip collection volume118 l
    Extraction duct inlet outside nominal width1 x 150, 2 x 100 mm
    Length approx.1145 mm
    Width/depth approx.654 mm
    Height approx.1830 mm
    Weight approx.82 kg
    Electrical Data
    Motor input2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area3.5 m²
    Noise emission
    Max. sound pressure level80 dB(A)
    Volume flow
    Rated volume flow1325 m³/h
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Filter cartridge
