    Productimage for FAG 1
    Brandimage to Product FAG 1

    Paint fume extraction

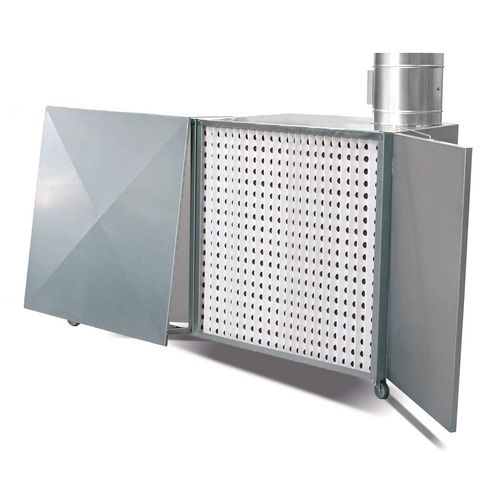

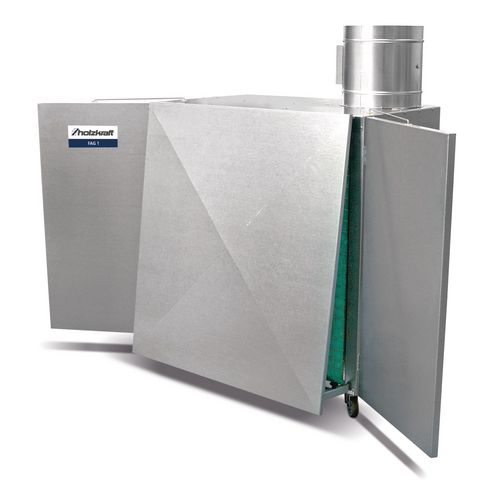

    FAG 1

    For extracting toxic, unhealthy fumes at painting workplaces

    3.629,00 EUR excl. Tax / pc(s).
    4.318,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.199,00 EUR excl. Tax / pc(s).
    3.806,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5134001

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal in woodworking plants, in joineries / carpentry stores and general trades
    • Highly efficient air purification with high degree of separation
    • Mobile device for use in different places in the workshop
    • Easy handling
    • Certified for ATEX Zone 2
    • Long filter service life
    • Delivered ready to plug in



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length max. approx.1897 mm
    Width/depth max. approx.1135 mm
    Extraction duct outlet outside nominal width300 mm
    Length approx.1012 mm
    Width/depth approx.912 mm
    Height approx.1405 mm
    Weight approx.125 kg
    Electrical Data
    Motor speed1445 min¯¹
    Drive motor output1,5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area1 m²
    Noise emission
    Max. sound pressure level72 dB(A)
    Volume flow
    Max. negative pressure500 Pa
    VPE1
    Unit: pc(s).
    Packaging unit: 1
