    Rohluftabsauganlage

    ASA 31

    Stationary model with large chip collection volume in a small space, driving device available as an accessory.

    2.415,00 EUR excl. Tax / pc(s).
    2.873,85 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.299,00 EUR excl. Tax / pc(s).
    2.735,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5133130

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Universally applicable also for plastic, metal, glass, styrofoam, paper and the like
    • Particularly robust construction
    • Housing made of galvanized sheet steel
    • Paddle wheel fan for increased suction power
    • Significantly reduced dust content due to double-woven fine filter bag
    • Extractors comply with dust class L
    • Basic units are pre-assembled in modular design
    • For large systems only short installation times
    • Top value for money
    • Short assembly times thanks to modular design



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Chip collection volume3x175 l
    Extraction duct inlet outside nominal width200 mm
    Length approx.2493 mm
    Width/depth approx.578 mm
    Height approx.2115 mm
    Weight approx.98 kg
    Electrical Data
    Suction motor efficiency classIE3
    Drive motor output3,0 kW
    Back-up fuse max.16 A inert
    Connector plugCEE 16 A
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area3 x 2.2 m²
    Noise emission
    Max. sound pressure level82 dB(A)
    Volume flow
    Rated volume flow2300 m³/h
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Plant body with mounted fan unit
    • PVC Chip bag

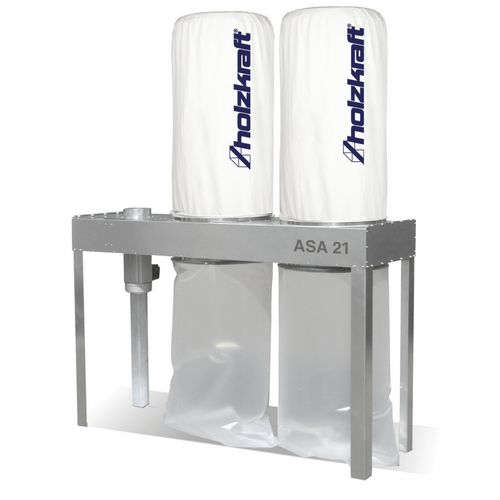

    • ASA 11 - ASA 21 suction unit with plastic impeller
    • ASA 31 - ASA 61 Suction unit with metal impeller
    • Star-delta switch from 5.5 kW motor (ASA 51 / ASA 61)
    • support legs
