Buffing unit | |
---|---|
Current draw | 2 x 0.14 kW |
Speed | 2800 min¯¹ |

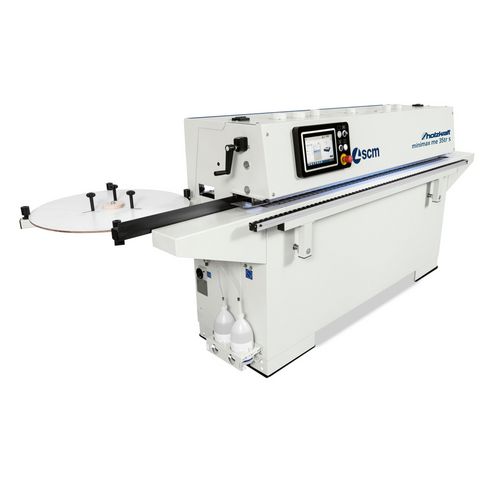

Edge bander
For plastic edges from 0.4 - 3 mm and workpieces from 8 - 50 mm
41.900,00
EUR excl. Tax / pc(s).
49.861,00
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5507237
Buffing unit | |
---|---|
Current draw | 2 x 0.14 kW |
Speed | 2800 min¯¹ |
Corner copy unit | |
---|---|
Current draw | 0.35 kW |
Tool diameter | 58 mm |
Speed | 12000 min¯¹ |
Dimensions and weights | |
---|---|
Length approx. | 3314 mm |
Width/depth approx. | 1085 mm |
Height approx. | 1300 mm |
Weight approx. | 623 kg |
Electrical Data | |
---|---|
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Feed | |
---|---|
Current draw | 0.55 kW |
Speed | 7 m/min |
Flush radius milling unit | |
---|---|
Current draw | 2 x 0.35 kW |
Miller diameter HM | 55.3 mm |
Miller speed | 12000 min¯¹ |
Extraction port diameter | 2 x 60 mm |
Gluing unit | |
---|---|
Current draw | 0.25 kW |
Extraction port diameter | 60 mm |
Filling quantity | 0.8 kg |
Pre-milling unit | |
---|---|
Extraction port Ø | 2 x 80 mm |
Current draw | 3 kW |
Milling speed | 7200 min¯¹ |
Diamond milling diameter | 80 mm |
Milling height | 56 mm |
Material removal | 0.5 / 1 / 1.5 / 2 mm |
Scraper blade units | |
---|---|
Radius scraper | 2 mm |
Workpiece | |
---|---|
Thickness | 8 – 50 mm |
Minimum length | 120 mm |
Min. width | 110 mm |
VPE | 1 |

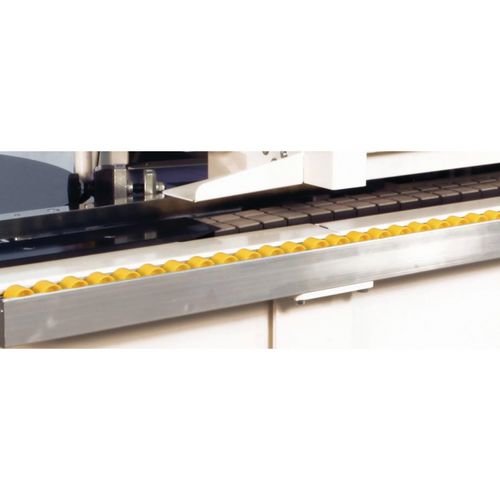

Roller edge rotary platen | 730 mm |

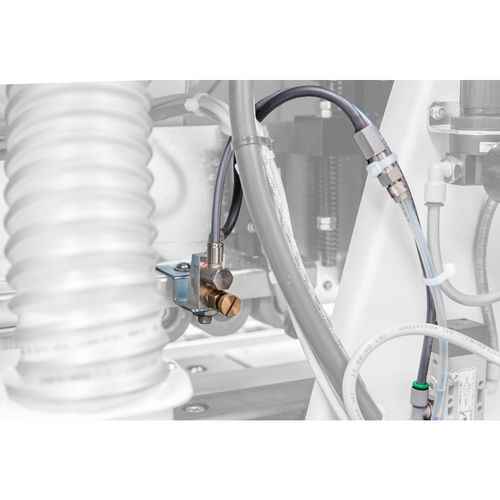

Anti-adhesive spraying unit | ✔ |
Pre-milling unit | with two slide cutters |

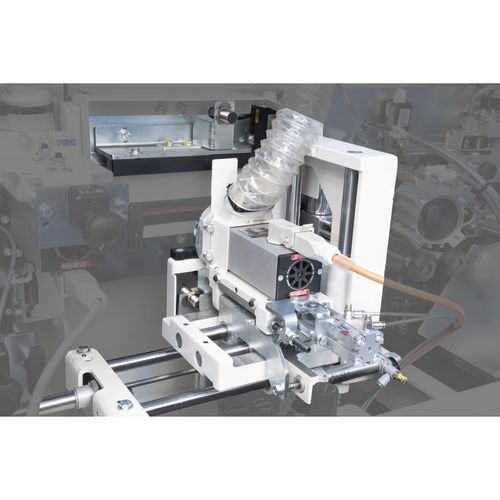

Edge preheating device | with ceramic infrared lamp |
Glue container quick-change kit | ✔ |

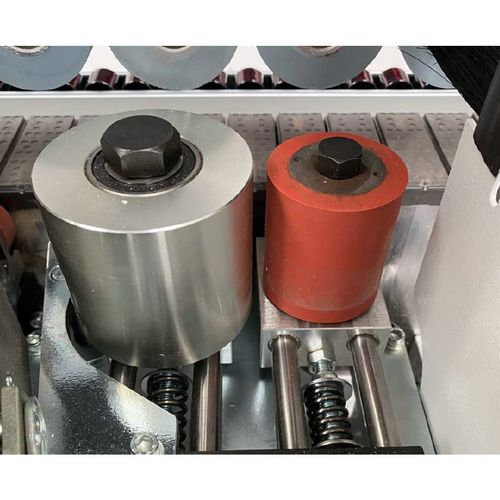

Bonding unit | ✔ |
Jack knife | ✔ |

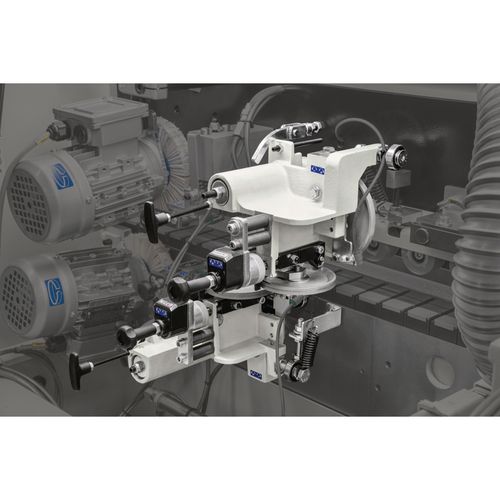

Corner copy unit | ✔ |
Flush radius milling unit | ✔, can be switched off electropneumatically |

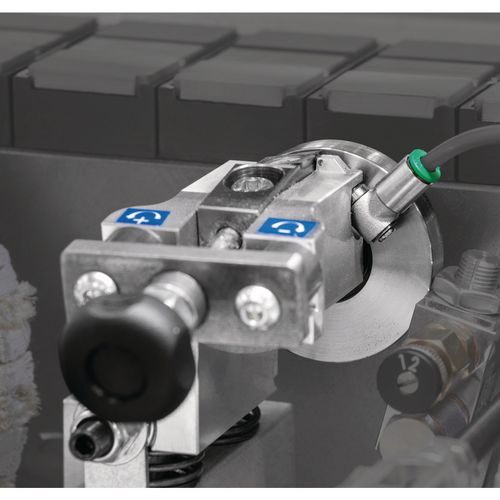

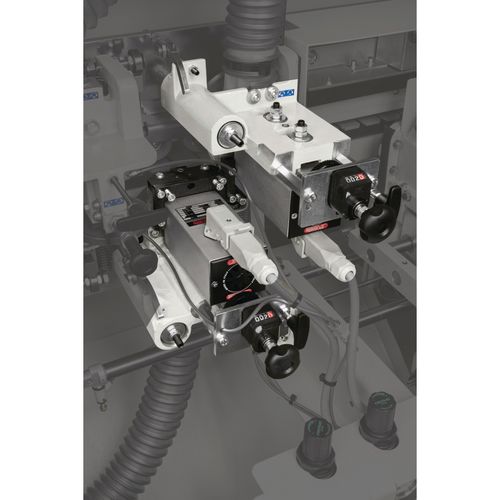

Radius scraper unit | Can be switched off electropneumatically, with numerical position display |
Area scraper unit | Can be switched off electropneumatically with rotating copying device |

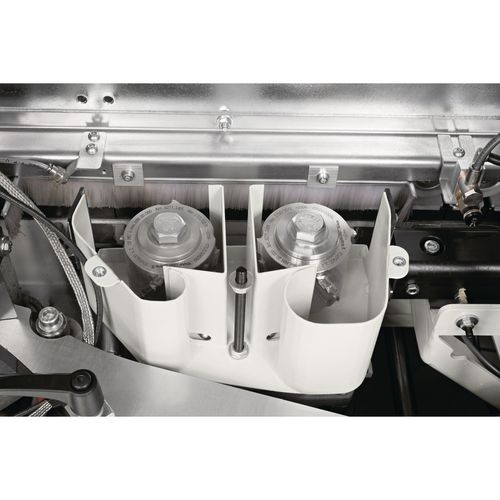

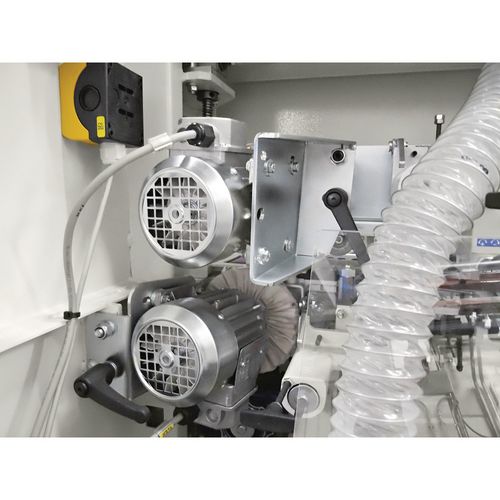

Buffing unit | ✔ |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts can not be retrofitted and are available only when ordering new machines.
