minimax me 35 t s

For plastic edges from 0.4 - 3 mm, solid wood edges up to 5 mm and workpieces from 8 - 50 mm

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 5507235

Are you interested in this product?

Put a request

Find Trader

Productdetails

Top equipment for high productivity with low space requirements!
Intuitive operation with the eye-S control and 10" large touch screen: HMI Maestro Active Edge; Graphic display of all machining units and their operating status; Graphic simulation of machining operations; Control of all machining units; Glue tank temperature regulation; Assistance functions for setting up the machine according to the machining program; Fault diagnosis for quick correction of simple errors; Statistics on machining parameters; USB connection; Preparation for network connection; Preparation for Industry 4.0 with data transmission protocol API REST
Excellent accessibility to the working units thanks to the large hood, which ensures protection and noise reduction
Monobloc steel construction ensures high stability and rigidity of the machine
Automatic aggregate positioning when changing the slab thickness
Automatic application of strip edges with edge magazine (me 35 t s): The strip edges of solid wood are automatically loaded and synchronized with the board guide
Panel feed is made by feed chain with rubber glides

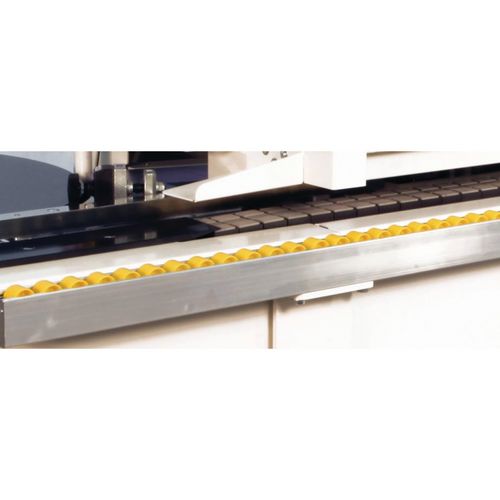

Extendable workpiece support
Quality Made in Italy
Adjustment of the infeed guide using spacer plates

Top equipment for high productivity with low space requirements!
Intuitive operation with the eye-S control and 10" large touch screen
Excellent accessibility to the working aggregates thanks to the large hood, which ensures protection and noise reduction
Panel feed by means of feed chain with rubber glides
Quality Made in Italy

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Buffing unit
Current draw	2 x 0.14 kW
Speed	2800 min¯¹

Dimensions and weights
Length approx.	3314 mm
Width/depth approx.	1085 mm
Height approx.	1300 mm
Weight approx.	623 kg

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Current draw	0.55 kW
Speed	7 m/min

Flush radius milling unit
Current draw	2 x 0.35 kW
Miller diameter HM	55.3 mm
Miller speed	12000 min¯¹
Extraction port diameter	2 x 60 mm

Gluing unit
Current draw	0.25 kW
Extraction port diameter	60 mm
Filling quantity	0.8 kg

Pre-milling unit
Extraction port Ø	2 x 80 mm
Current draw	3 kW
Milling speed	7200 min¯¹
Diamond milling diameter	80 mm
Milling height	56 mm
Material removal	0.5 / 1 / 1.5 / 2 mm

Scraper blade units
Radius scraper	2 mm

Workpiece
Thickness	8 – 50 mm
Minimum length	120 mm
Min. width	110 mm

VPE

Unit: pc(s).
Packaging unit: 1

Roller edge rotary platen	730 mm
Edge magazine	✔
Anti-adhesive spraying unit	✔
Pre-milling unit	with two dia cutters
Edge preheating device	With heating plate
Glue container quick-change kit	✔
Bonding unit	✔
Jack knife	✔
Combination unit flush trimming / round corners	✔
Flush radius milling unit	✔
Radius scraper unit	With numerical position display
Area scraper unit	With rotating copying device
Buffing unit	✔
