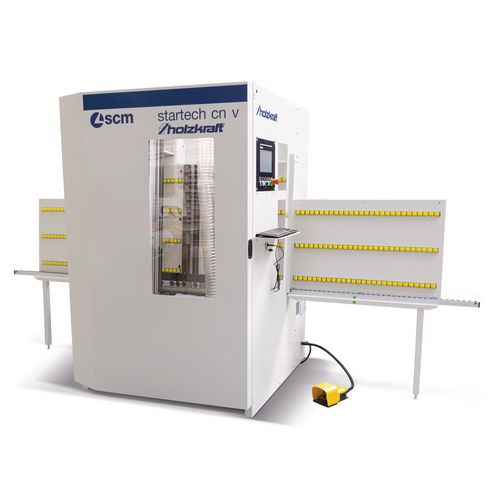

startech cn v

For precise single and series production

30.990,00 EUR excl. Tax / pc(s).
36.878,10 EUR incl. 19% Tax / pc(s).

Promotional price *

29.259,00 EUR excl. Tax / pc(s).
34.818,21 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Art.-No. 5509010

Are you interested in this product?

Put a request

Find Trader

Productdetails

One boring head with seven vertical, four horizontal spindles and a grooving unit </ li>

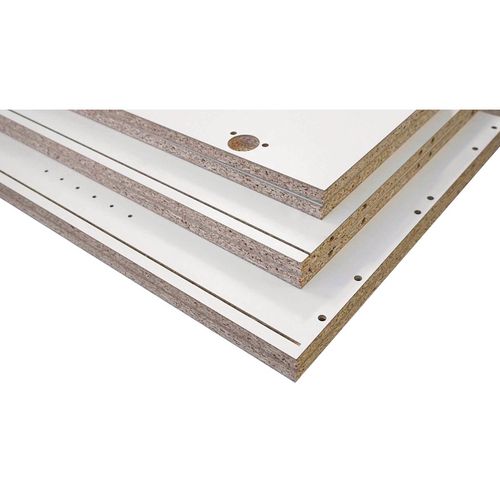

For holes on the top of the board and on all four sides of the workpiece, as well as grooving in the X-direction </ li>
grooves Through holes in the phenol resin worktable </ li>

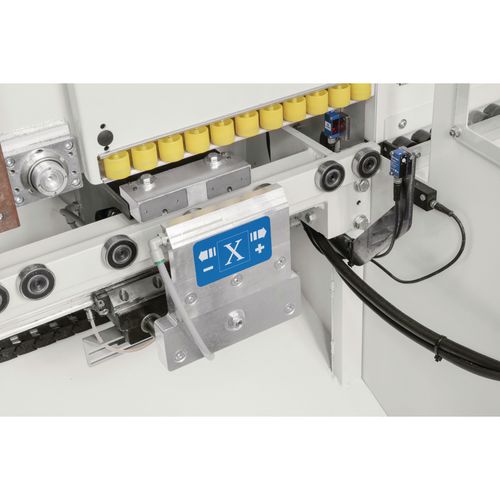

The workpiece movements in the X- / Y- and Z direction take place on linear prism guides </ li>
Compact external dimensions </ li>
Including roller conveyor and edge applicator </ li > </ ul> CNC control </ b>
Large 10 "touch screen </ li>
Programming via PC possible </ li>
Import of CNC programs via USB -Dongle </ li>
Automatic optimization of drilling operations </ li>
Plate zero shift possible </ li> </ ul>

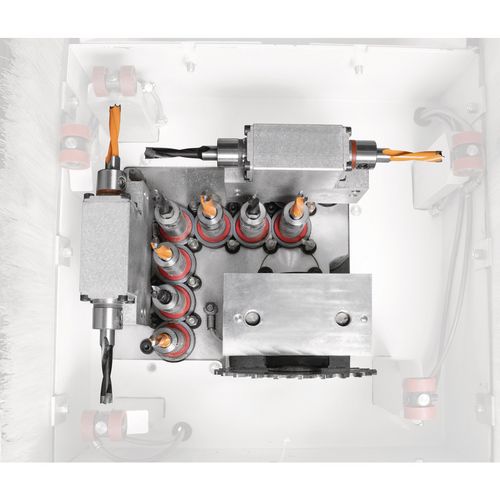

Drilling head with seven vertical spindles, four horizontal spindles and a grooving unit
Including roller conveyor and edge scraper

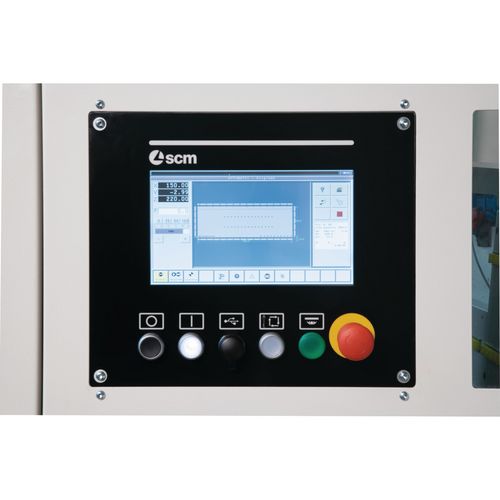

Operation via 10" touchscreen

Spindle speed	4460 min¯¹
Min. workpiece dimensions X	300 mm
Max. workpiece dimensions X	3000 mm
Min. workpiece dimensions Y	90 mm
Max. workpiece dimensions Y	900 mm
Min. workpiece dimensions Z	10 mm
Max. workpiece dimensions Z	50 mm
Grooving saw speed	5700 min¯¹
VPE	1

Dimensions and weights
Length approx.	3704 mm
Width/depth approx.	1455 mm
Height approx.	2209 mm
Weight approx.	1200 kg

Electrical Data
Drive motor output	2,2 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Roller conveyor for workpiece feed and discharge
Edge scraper
Print force Y axis for hard material processing </ li>
