startech cn k

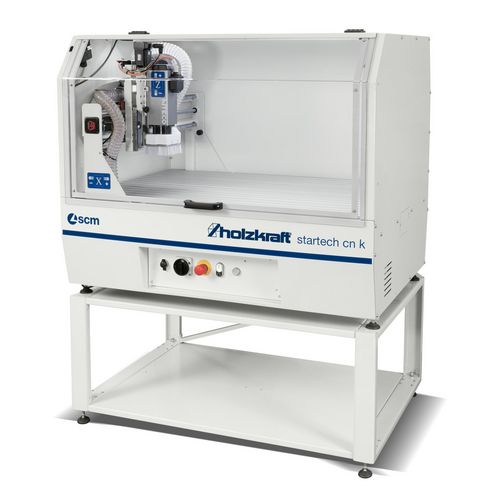

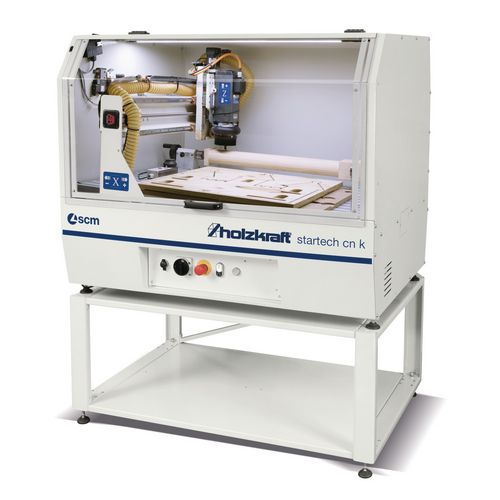

Compact 3-axis machining center for milling and engraving

11.990,00 EUR excl. Tax / pc(s).
14.268,10 EUR incl. 19% Tax / pc(s).

Promotional price *

9.999,00 EUR excl. Tax / pc(s).
11.898,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheitsdatenblatt 2

Safetydatasheet 2

Art.-No. 5509020

Are you interested in this product?

Put a request

Find Trader

Productdetails

Suitable for tool diameters up to max. 60 mm with shank diameters up to max. 16 mm

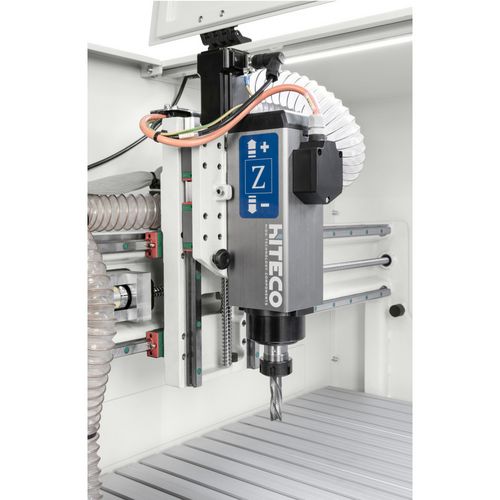

Spindle drive via powerful 2.4 kW
Full enclosure with generous door opening at the front

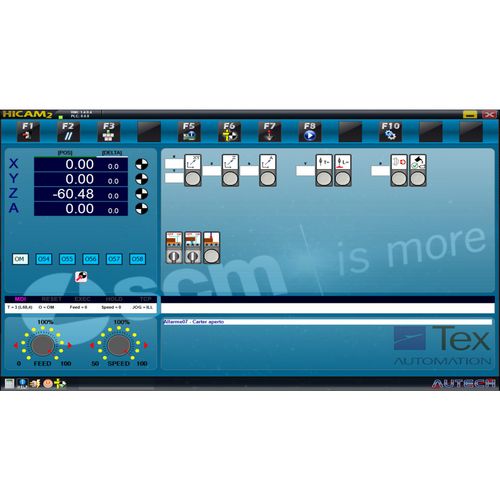

Intuitively operable machine software for PC with open interface for various CAD/CAM programs included in the scope of delivery
Available accessories: sensor for tool length determination, fourth axis, machine base, pneumatic suction cups

Suitable for tool diameters up to max. 60 mm with shank diameters up to max. 16 mm
Spindle drive via powerful 2.4 kW
Full enclosure with generous door opening at the front
Intuitive machine software for PC with open interface for various CAD/CAM programs included in the scope of delivery

Data sheets
Sicherheitsdatenblatt 2
Safetydatasheet 2

Work table length	760 mm
Work table width	1170 mm
Spindle speed	24000 min⁻¹
Max. workpiece dimensions X	915 mm
Max. workpiece dimensions Y	610 mm
Max. workpiece dimensions Z	176 mm
Work table length	760 mm
Worktable width	1170 mm
Spindle speed	24000 min⁻¹
Number of drilling spindles	1
Tool diameter max.	60 mm
Max. Workpiece dimension X	915 mm
Max. Workpiece dimension Y	610 mm
Max. Workpiece dimension Z	176 mm
Max. Travel speed X-axis	5 m/min
Max. Travel speed Y-axis	5 m/min
Max. Travel speed Z-axis	2.5 m/min
Nominal size of external suction nozzle	40 mm
VPE	1

Dimensions and weights
Length approx.	1219 mm
Width/depth approx.	937 mm
Height approx.	1041 mm

Electrical Data
Drive motor output	2.4 kW
Drive motor power	2.4 kW
Supply voltage	400 V
Mains frequency	50 Hz

Pneumatic connection
Air requirement of the extraction system	115 m³/h

Unit: pc(s).
Packaging unit: 1
