| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1500 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Trimming length | 3200 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 120 mm |
| Max. cutting height 45° | 89 mm |
| Explanation to: Max. cutting height | with 400mm saw blade |
| (Main) saw blade diameter | 300 – 400 mm |
| (Main) saw blade speed | 3000 – 5000 min¯¹ |

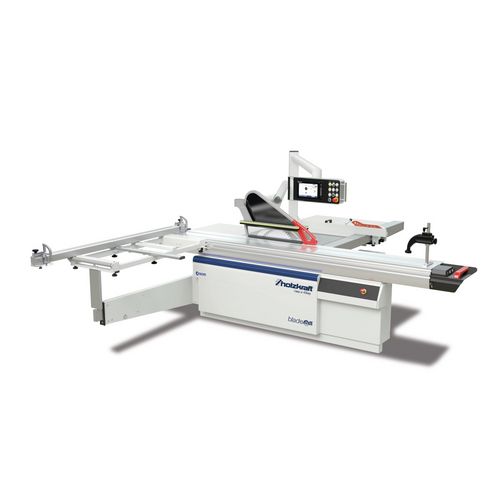

Sliding table saw
class si 400ep BLADE OFF
The new BLADE OFF safety system - working with a circular saw has never been so safe!
55.445,00
EUR excl. Tax / pc(s).
65.979,55
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5530010
Are you interested in this product?
Put a request
Find Trader
Productdetails
- The BLADE OFF system recognizes potentially dangerous situations in advance and prevents them by making the saw blade disappear into the machine table in a fraction of a second
- With the help of sensors, the system is able to distinguish between the workpiece and the operator

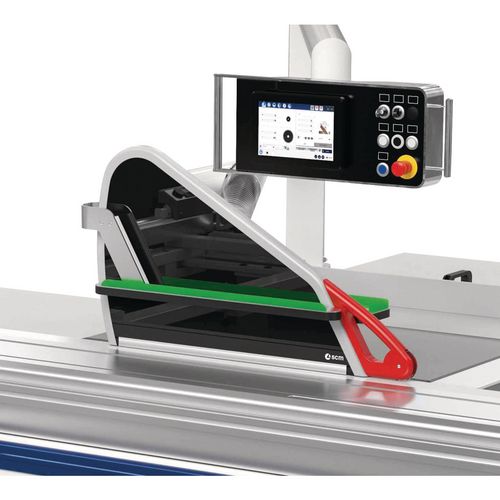

- An LED light in the saw blade guard indicates with a green light whether the safety system is active
- Control via 10" eye-S control panel
- Connection with "SCM Thundercut" (optimizer/process control app) possible
- Parallel fence electrically adjustable
- Start/stop buttons for main and scoring saw blade integrated in the sliding carriage
- Special guides and an innovative curved cut enable a four times higher load capacity of the edging carriage
- Ball-bearing telescopic arm ensures greater stability and smoother guidance of the workpiece
- The BLADE OFF system recognizes potentially dangerous situations in advance and prevents them by allowing the saw blade to disappear into the machine table in a fraction of a second

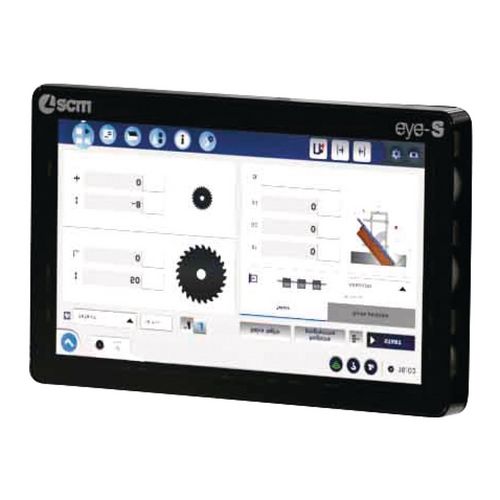

- Control via 10" eye-S control panel with Maestro active user interface
- Connection with SCM Thundercut (optimizer/process control app) possible

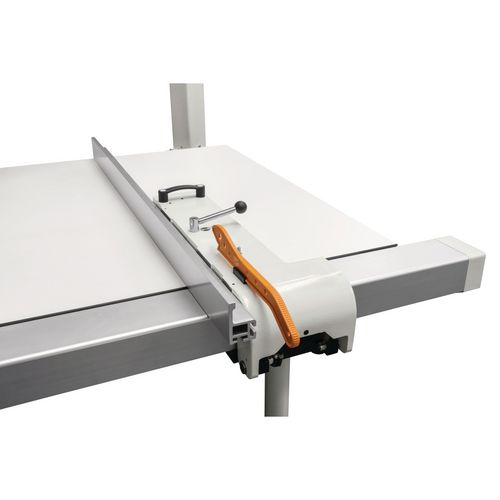

- Parallel fence electrically adjustable via ball screw
- Special guides and an innovative curved cut enable a four times higher load capacity of the edging carriage
| Dimensions and weights | |
|---|---|
| Length approx. | 7250 mm |
| Width/depth approx. | 4460 mm |
| Height approx. | 1770 mm |
| Weight approx. | 1314 kg |
| Electrical Data | |
|---|---|
| Scoring blade motor output | 1.3 kW |
| Drive motor output | 9.0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 100 mm |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 120 mm |
| Saw blade speed | 8500 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 360 mm |
| Table length | 1040 mm |
| Table width | 630 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

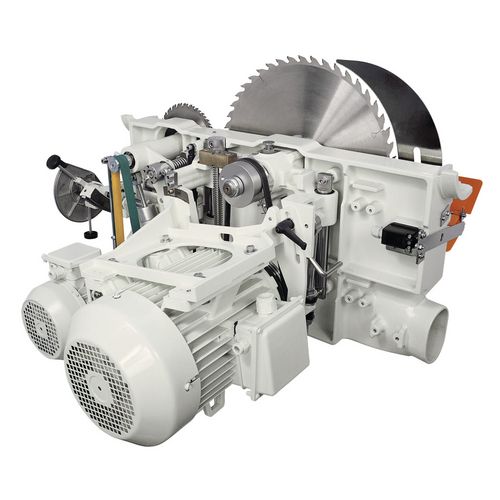

| Scoring saw unit | with separate scoring motor |

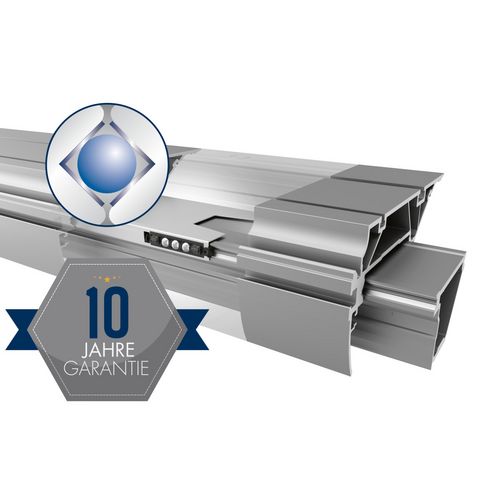

| Anodised aluminium sliding sizing carriage | ✔ |
| On/off switch on sliding carriage | for motors of the main and scoring saw blade |
| Claming frame | with angle-adjustable aluminum telescopic fence |
| Material roll on claming frame | ✔ |
| Saw rip fence | motorized, via control panel |
| Stops | Professional folding stops |
| Eccentric clamp | ✔ |
| Control of saw blade height, tilting and rip fence | ✔ |
| Swivable top control panel | ✔ |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade pendulum protection | ✔ |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
