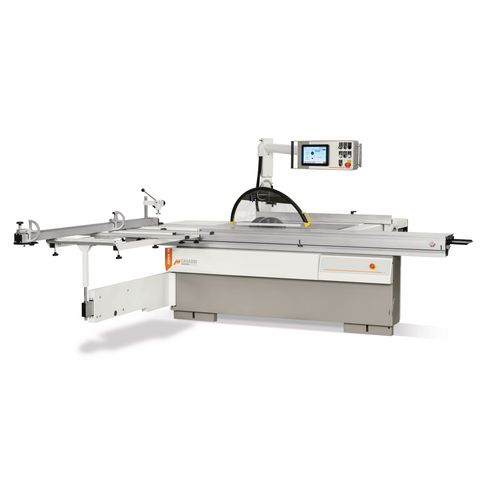

Sliding table saw
CASADEI XENIA 70/32 A - 550
With 550 mm saw blade as standard, adaptable to specific applications through modular equipment options
30.550,00
EUR excl. Tax / pc(s).
36.354,50 EUR incl. 19% Tax / pc(s).
36.354,50 EUR incl. 19% Tax / pc(s).
Promotional price *
22.999,00 EUR excl. Tax / pc(s).27.368,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5223508A
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Sturdy cast steel construction
- Three speeds as standard

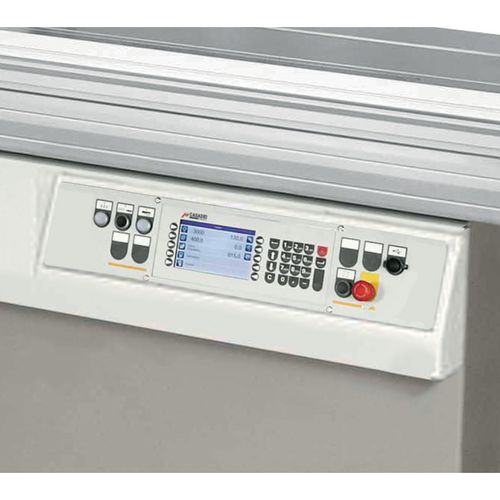

- Standard NC control with 7 inch LC display for setting all axes of the machine

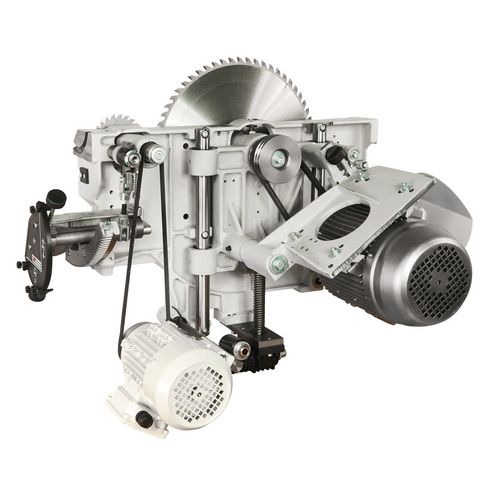

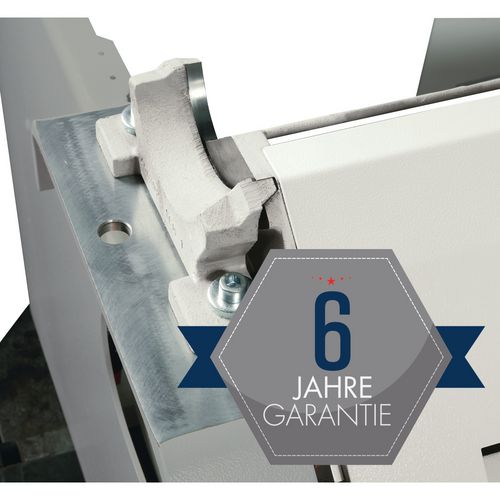

- Saw unit with permanently precise double tilting segment guide, 6 years Holzkraft warranty on wear of the tilting segments
- Electrical positioning of cutting height and saw blade tilting
- scoring unit with separate scoring motor
- Powerful industrial motors

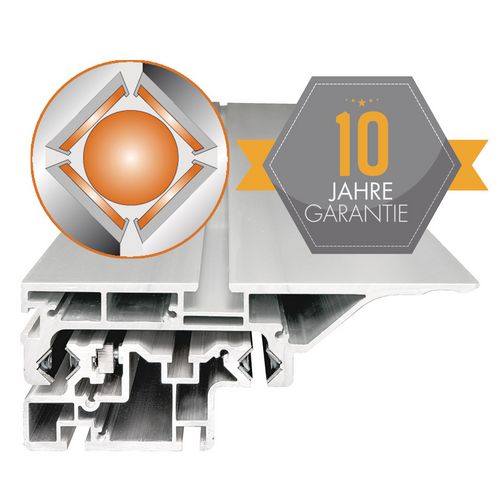

- Smooth-running and precise sliding table made of anodized aluminium with proven and permanently smooth-running ball contact system on hardened, 10-year warranty on wear of the guideways
- Large support surfaces due to standard table extension and widening
- Cast iron saw table
- Foldable rip fence with fine adjustment and round bar guide
- Crosscut fence, extendable up to 3200 mm, with two folding stops and eccentric clamp
- Extra large extension arm with material roller, extendable up to 2400 mm
- Sideways swivelling saw blade pendulum protection with integrated suction socket
- Optionally available: extendable mitre fences up to 1500 mm for mounting directly on the sliding carriage
- Numerous equipment options for individual adaptation
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1270 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 200 mm |
| Max. cutting height 45° | 129 mm |
| (Main) saw blade diameter | 550 mm |
| (Main) saw blade speed | 2500 - 3500 - 5000 min¯¹ |
| Dimensions and weights | |
|---|---|
| Weight approx. | 1000 kg |
| Electrical Data | |
|---|---|
| Scoring blade motor output | 0.9 kW |
| Drive motor output | 7.0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 100 mm |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 120 mm |
| Saw blade speed | 8500 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Trimming frame length | 3200 mm |
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 360 mm |
| Table length | 1285 mm |
| Table width | 700 mm |
| Work height | 900 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Scoring saw unit | ✔ |
| Anodised aluminium sliding sizing carriage | ✔ |
| Handle for sliding carriage | ✔ |
| Material roll on claming frame | ✔ |
| Saw rip fence | with round rod guide, can be swivelled away |
| Stops | 2 Professional folding stops |
| Clamp sleigh | ✔ |
| Eccentric clamp | ✔ |
| Swivable top control panel | ✔ |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade pendulum protection | with quick release device |
| Preparation for saw blade Ø | 550 mm |
SCM Group S.p.A CASADEI
Via del Lavoro 1/3
Po box 168
36016 Thiene – Vicenza
Italien / Italy
info@casadeibusellato.com
Via del Lavoro 1/3
Po box 168
36016 Thiene – Vicenza
Italien / Italy
info@casadeibusellato.com
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
