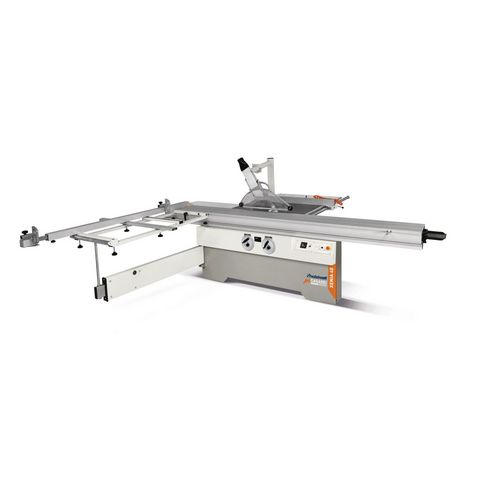

CASADEI XENIA 40

With swiveling 400 mm saw blade and preheating device. M version with motorized height and angle adjustment of the saw blade.

13.490,00 EUR excl. Tax / pc(s).
16.053,10 EUR incl. 19% Tax / pc(s).

Promotional price *

9.699,00 EUR excl. Tax / pc(s).
11.541,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 5223442

Are you interested in this product?

Put a request

Find Trader

Productdetails

Sturdy cast steel construction warrantys precision, smooth running and durability

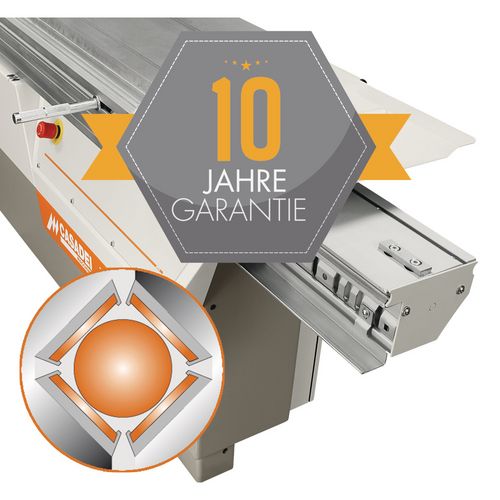

Smooth-running and precise sliding table made of anodized aluminum with proven and permanently smooth-running ball contact system on hardened guides - 10-year warranty on wear of carbide guide ways
Cast iron saw table
Large support surfaces due to standard table extension and widening
Folding rip fence manually adjustable with fine adjustment
Angle-adjustable crosscut fence, extendable up to 3200 mm, with two folding stops
Extension arm with material roller
Xenia 40 M A: Round steel guide with diameter Ø 50 mm
Lateral swing-away saw blade guard with integrated exhaust port
M version with 3 saw blade speeds as standard

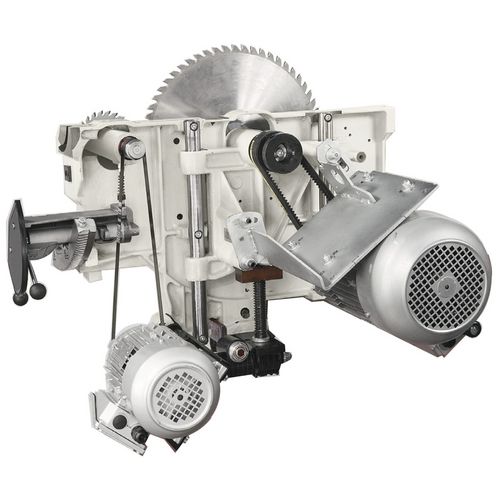

Scoring unit with separate scoring motor
XENIA 40: numerical display for saw blade tilting on the front of the machine

Manual version
Speed main saw blade 3700 min¯¹

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Circular saw unit
Max. cutting width with rip fence	1270 mm
Max. cross cut width left from saw blade	3200 mm
Saw blade angle	90 – 45 °
Max. cutting height 90°	140 mm
Max. cutting height 45°	99 mm
(Main) saw blade diameter	400 mm
(Main) saw blade speed	3700 min¯¹

Dimensions and weights
Weight approx.	661 kg

Electrical Data
Scoring blade motor output	0.9 kW
Drive motor output	7.0 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter bottom	120 mm
Saw blade protection extraction port diameter	80 mm

Pre-scoring unit
Diameter saw blade	120 mm
Saw blade speed	8500 min¯¹

Sliding carriage and table
Trimming frame length	3200 mm

VPE

Unit: pc(s).
Packaging unit: 1

Scoring saw unit	✔
Anodised aluminium sliding sizing carriage	✔
Handle for sliding carriage	✔
Material roll on claming frame	✔
Saw rip fence	with round rod guide
Stops	Professional folding stops
Clamp sleigh	✔
Table broadening	✔
Table lengthening	✔
Saw blade pendulum protection	✔
