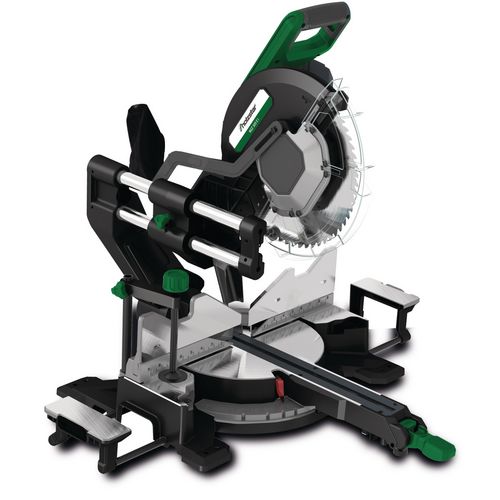

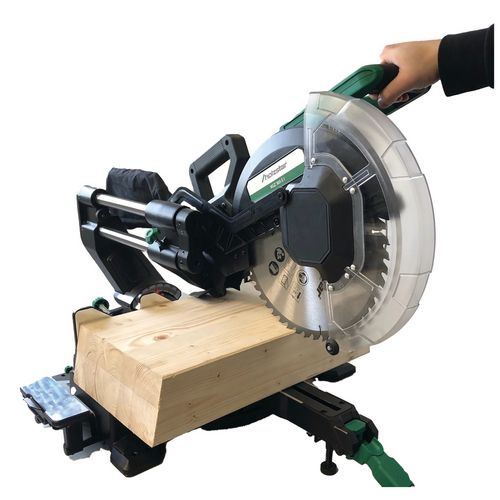

    Crosscut / miter saw

    KGZ 305 E I

    With pull function - mobile and versatile

    309,00 EUR excl. Tax / pc(s).
    367,71 EUR incl. 19% Tax / pc(s).
    Promotional price *
    279,00 EUR excl. Tax / pc(s).
    332,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5702306

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • With infinitely adjustable double mitre and double tilt as standard
    • Base plate and turntable made of die-cast aluminum, compact, robust and easy to transport

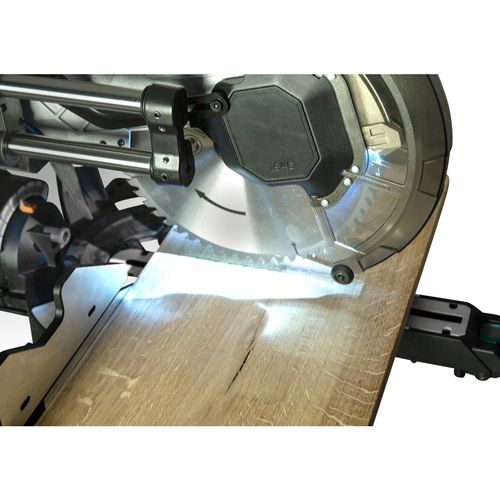

    • LED projection on the workpiece for precise control of the cutting position
    • Adjustable stop rails on the right and left
    • Laterally extendable support aids for longer workpieces
    • Double adjustable cross-cut depth limiter

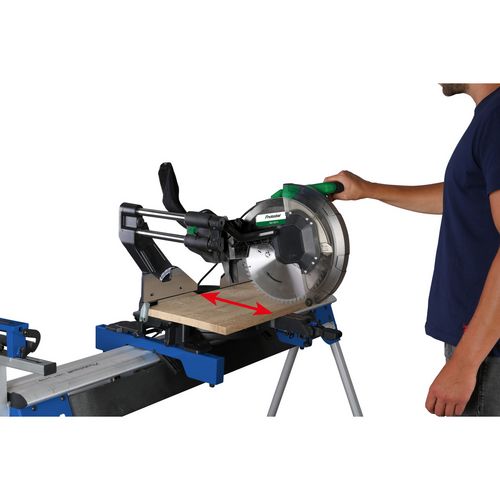

    • Pull function for extended cutting range

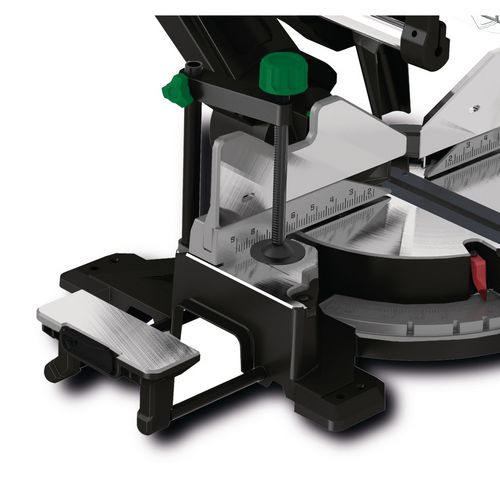

    • With screw clamp and clamping device for secure workpiece locking as standard
    • Suction nozzle for dust collection bag or connection of an external suction unit



    Saw band speed5000 min¯¹
    Saw blade diameter305 mm
    Max. bevel angle range left45 °
    Max. bevel angle range right45 °
    VPE1
    Cutting capacity
    0° inclination / 0° mitre340 x 90 mm
    -45° inclination / 0° mitre235 x 90 mm
    +45° inclination / 0° mitre340 x 38 mm
    0° inclination / -45° mitre340 x 25 mm
    -45° inclination / -45° mitre235 x 38 mm
    +45° inclination / +45° mitre235 x 25 mm
    Dimensions and weights
    Length approx.800 mm
    Width/depth approx.710 mm
    Height approx.640 mm
    Weight approx.20.3 kg
    Electrical Data
    Main motor2.0 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Saw blade
    • Dust bag



    Soft start✔
    Stop railsadjustable
