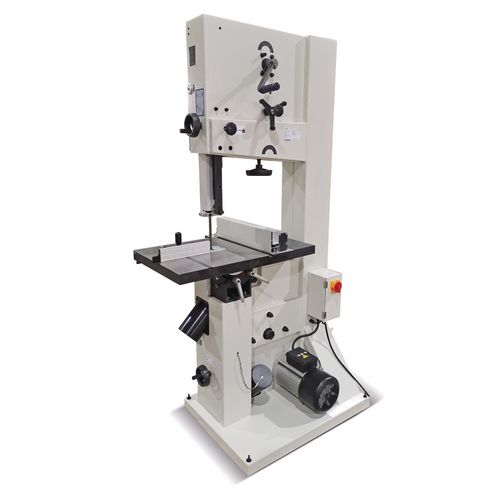

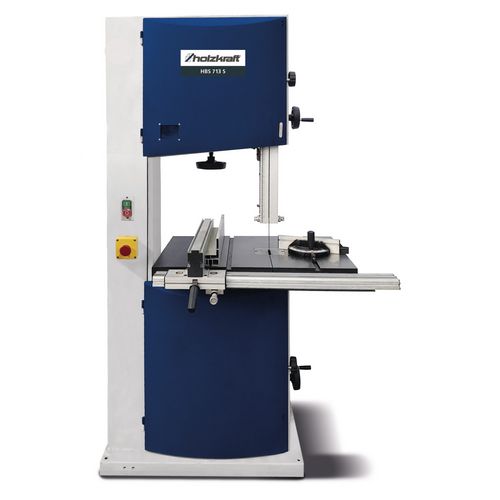

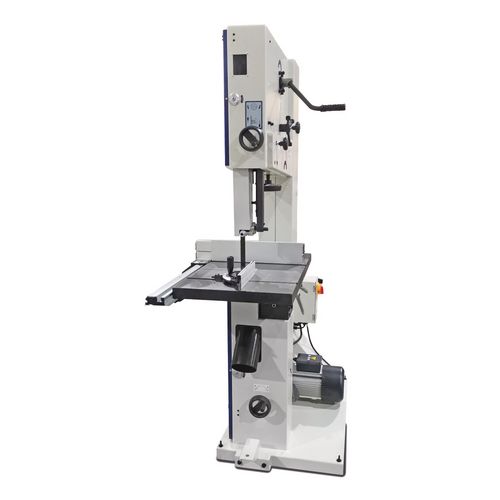

Woodbandsaw
HBS 713 S
Precision saws with great cutting performance for the professional
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5150713
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy design with high weight for maximum smoothness
- Particularly quiet and precise running thanks to the torsion-resistant machine housing

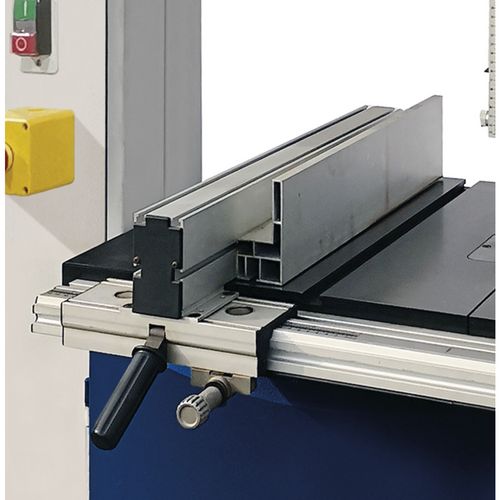

- Precisely adjustable aluminum rip fence

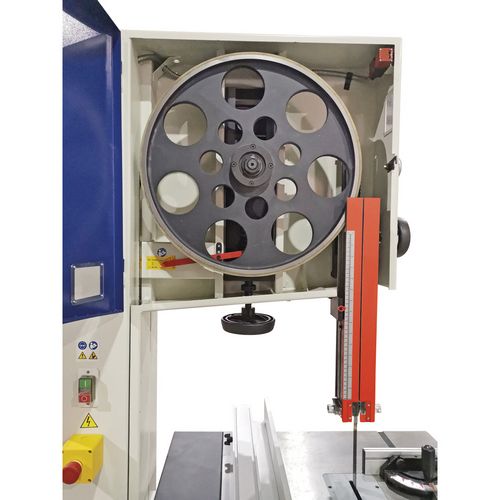

- cast Flywheels with rubber coating and chip scraper brush
- Large cast iron saw table, swiveling from 0° to +45° with polished and polished surface

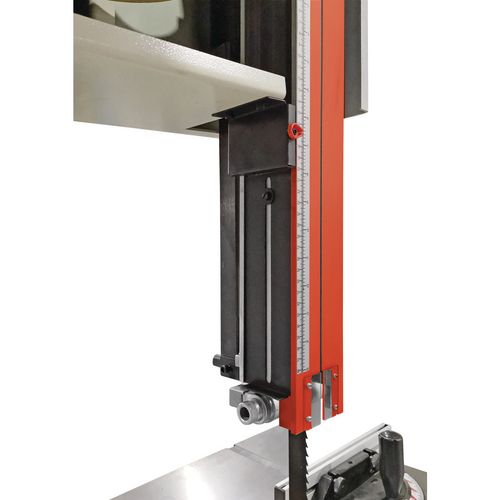

- Precise cutting height adjustment using a rack with a millimeter scale
- Two extraction nozzles
- Automatic release of the saw band brake for adjusting the saw band
- Heavy version with high weight for maximum smoothness
- Precisely adjustable aluminum rip fence
- Large gray cast iron saw table, swiveling from 0° to +45° with ground and polished Surface
- Precise cutting height adjustment via rack with millimeter scale
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 430 mm |
| Max. cutting height 45° | 258 mm |
| Max. cutting width with stop | 595 mm |
| Max. cutting width without stop | 700 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 1500 mm |
| Width/depth approx. | 975 mm |
| Height approx. | 2260 mm |
| Weight approx. | 400 kg |
| Electrical Data | |
|---|---|
| Delivery power | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 1560 m/min |
| Length | 5020 mm |
| Width | 38 mm |
| Strength | 0,65 mm |
| Work top(s) | |
|---|---|
| Length | 900 mm |
| Width | 700 mm |
| Height | 940 mm |
| Extension length | 200 mm |
| Extension width | 700 mm |
| Pivot | 0 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

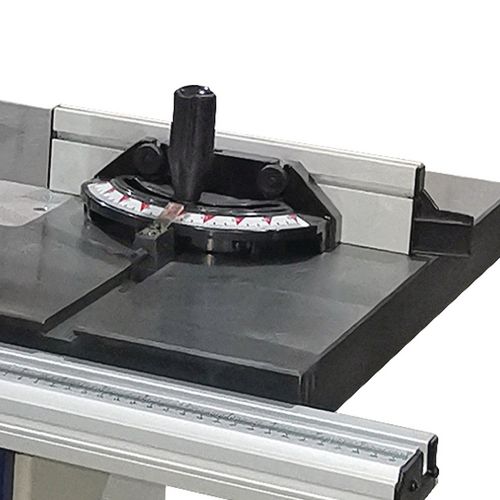

- Mitre gauge
- Saw band
- Push stick
