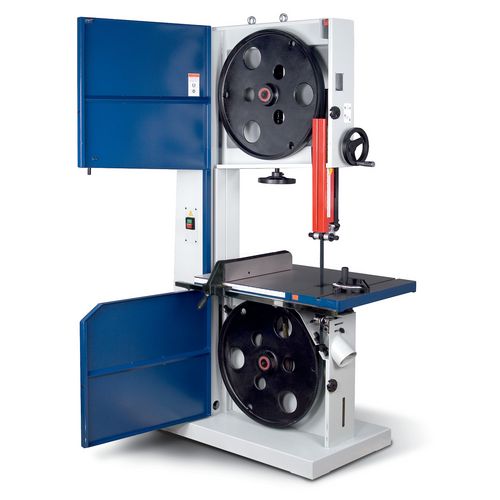

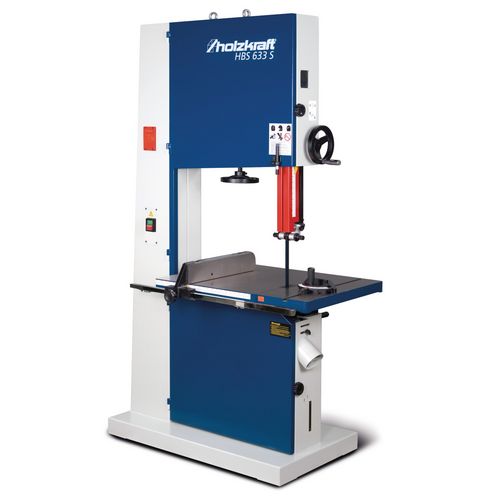

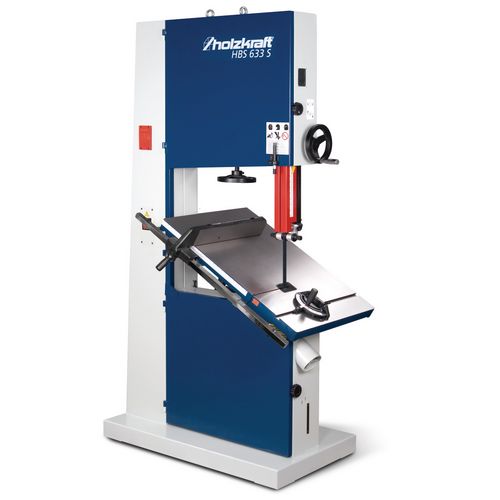

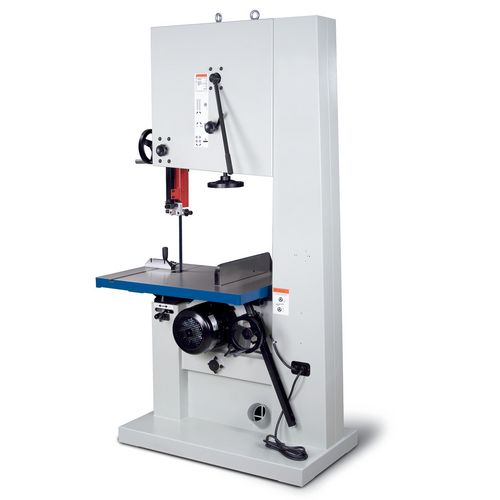

Woodbandsaw
HBS 633 S (IE3) Special offer set
In heavy professional design with saw band quick release system for the professional user
5.258,50
EUR excl. Tax / pc(s).
6.257,62 EUR incl. 19% Tax / pc(s).
6.257,62 EUR incl. 19% Tax / pc(s).
Promotional price *
4.499,00 EUR excl. Tax / pc(s).5.353,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5150063SET
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy professional design with high dead weight for maximum smoothness Especially quiet and precise running thanks to torsion-free machine housing
- Large dimensioned cast iron saw table, one piece, swiveling from 0 ° to + 45 ° with ground and polished surface
- Patented table tilt device with handwheel and rack
- Sägebandschnellspannung
- Precision Sägebandrollenführung
- Large font rip fence
- Fast and precise cutting height adjustment via handwheel and rack with millimeter scale
- Safety switch for automatic shutdown when opening the door
- Large font rip fence
- Standard with angle stop
- Table tilt via rack and handwheel
Room amenities:

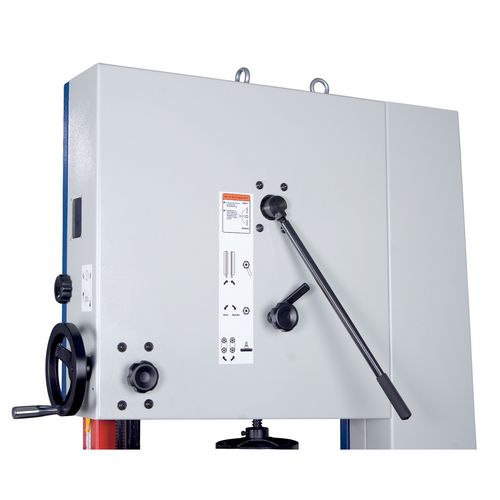

Quick release system
- Eccentric quick release lever
- The voltage setting is not changed
- With integrated saw band tension indicator

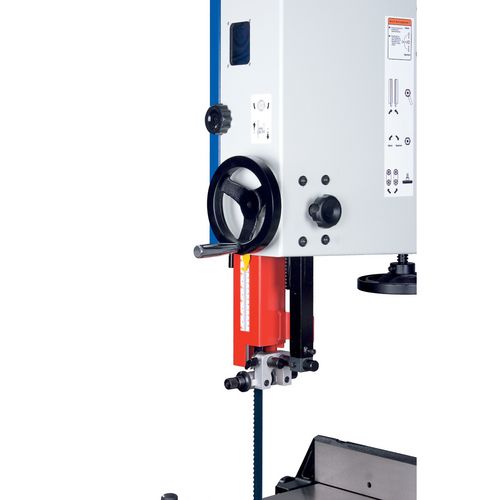

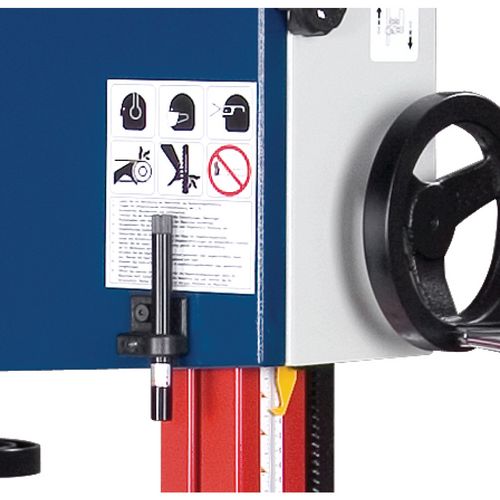

Cutting height adjustment
- Fast and precise cutting height adjustment via handwheel and rack with millimeter scale
laser device
- Standard with laser device for fast and precise display of the cutting line

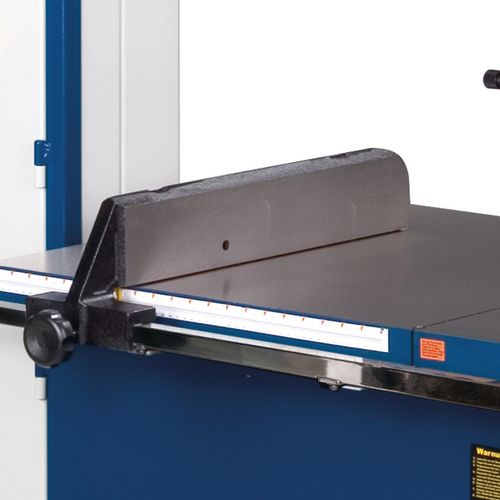

Stable rip fence
- Rip fence made of gray cast iron
- With quick clamping and easy-to-read millimeter scale

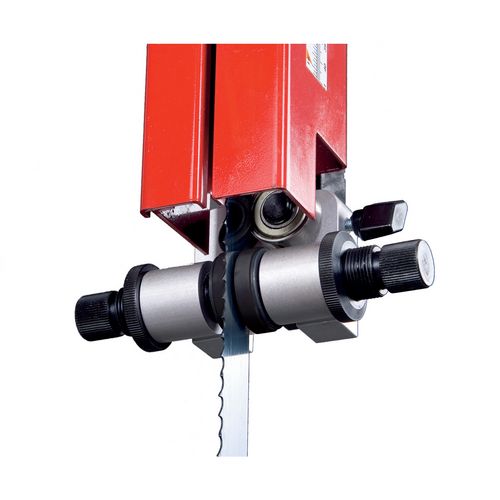

Precision guide above
- Precision 3-reed saw band guide with guide rollers
- With fine adjustment

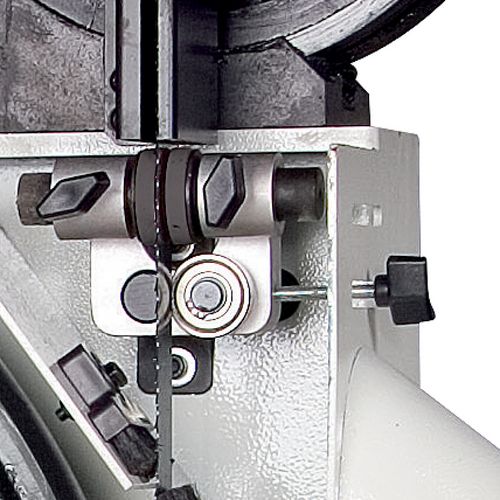

Precision guide below
- The bottom saw band guide is also equipped with precision guide rollers and fine adjustment

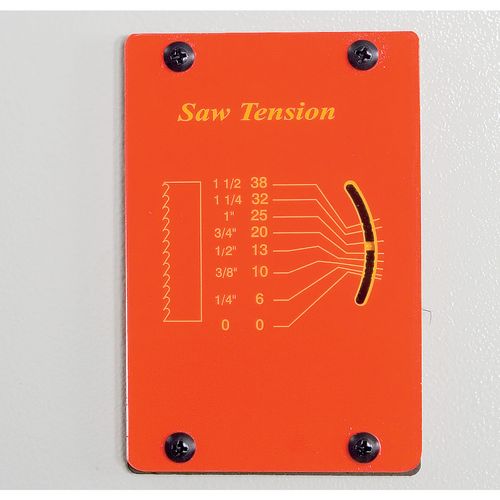

Display of saw blade tension
- Display of saw blade tension integrated in the machine frame for different saw blade widths
- Easy to read from the operator side

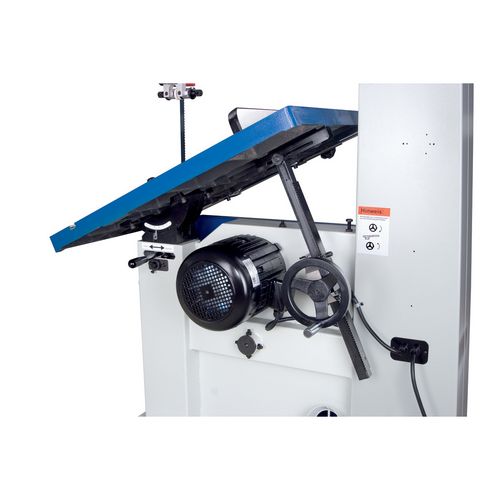

Patented professional saw table guide
- The heavy, solid gray cast iron saw table is easily and conveniently adjusted via a hand wheel rack guide
- The inclination is infinitely adjustable from 0 ° to 45 °

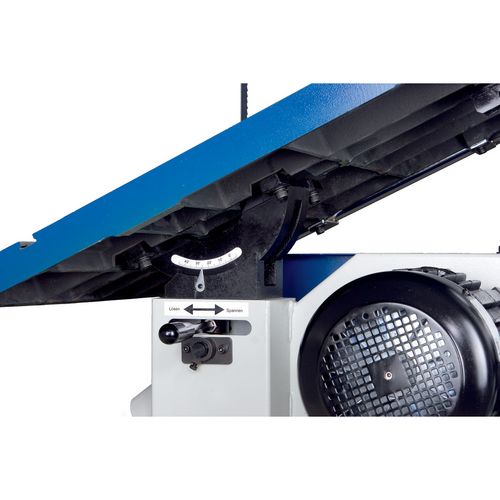

Saw table on double rocker mount
- The gray cast iron saw table is mounted on a double rocker mount.
- Easy and quick fixation of the set tilt angle via quick tension

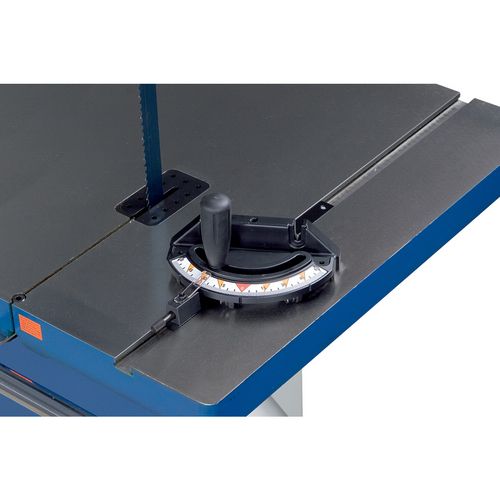

angle stop
- Standard with angle stop
- Infinitely adjustable from -60 ° to + 60 °
- Grid points at 0 °, -45 ° and + 45 °
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 400 mm |
| Max. cutting width with stop | 570 mm |
| Max. cutting width without stop | 610 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 1190 mm |
| Width/depth approx. | 820 mm |
| Height approx. | 2063 mm |
| Weight approx. | 377.7 kg |
| Electrical Data | |
|---|---|
| Delivery power | 4.1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 1615 m/min |
| Length | 4600 mm |
| Work top(s) | |
|---|---|
| Length | 830 mm |
| Width | 600 mm |
| Height | 830 mm |
| Pivot | 0 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1x saw band wood 4600 x 10 x 0.5 mm; 4 tooth
- 1x saw band wood 4600 x 20 x 0.5 mm; 4 tooth
- 1x saw band wood 4600 x 25 x 0.5 mm; 4 tooth
