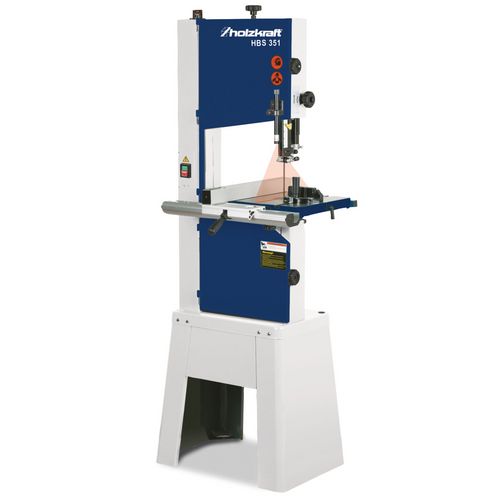

Woodbandsaw
HBS 351 (IE2)
Precision version for the ambitious craftsman
1.369,00
EUR excl. Tax / pc(s).
1.629,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5150035
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly quiet and precise run thanks to a torsion-free machine housing and a solid steel sheet substructure
- Large one-piece cast iron saw table, with a precisely ground and polished surface
- Comfortable laser device for cutting line marking

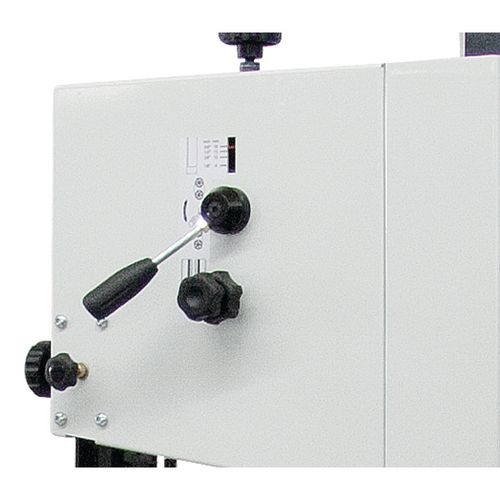

- Rapid saw blade tension via eccentric lever on the back of the machine
- Standard with two speeds

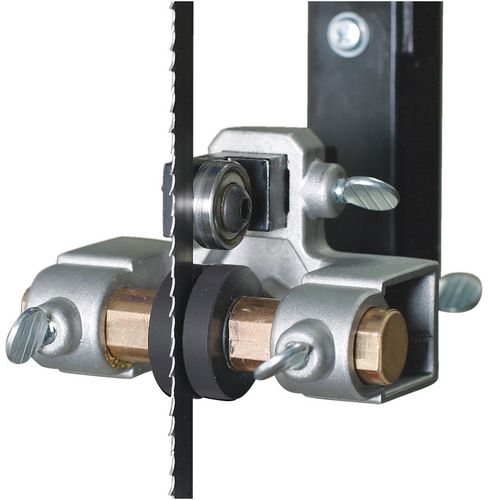

- Precise 3-roller saw band guides, standard above and below
- Fast cutting height adjustment via knob and rack with millimeter scale

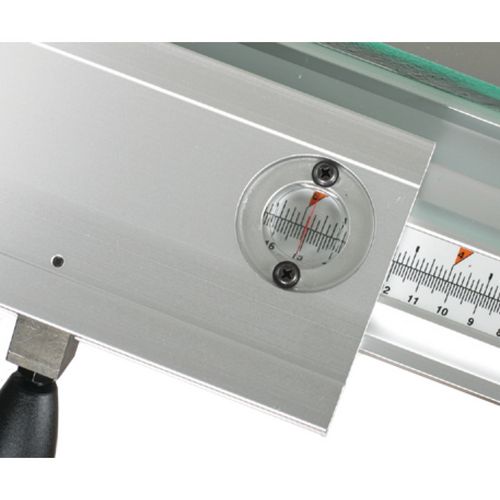

- Smooth-running aluminum rip fence with eccentric quick clamping and magnifying glass
- Standard miter fence, adjustable by 60 ° on both sides
- Safety switch for automatic shutdown when the door is opened
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 200 mm |
| Max. cutting width with stop | 321 mm |
| Max. cutting width without stop | 346 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 770 mm |
| Width/depth approx. | 755 mm |
| Height approx. | 1750 mm |
| Weight approx. | 88.5 kg |
| Electrical Data | |
|---|---|
| Delivery power | 0.55 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 650 / 400 m/min |
| Length | 2562 mm |
| Work top(s) | |
|---|---|
| Length | 356 mm |
| Width | 500 mm |
| Height | 1065 mm |

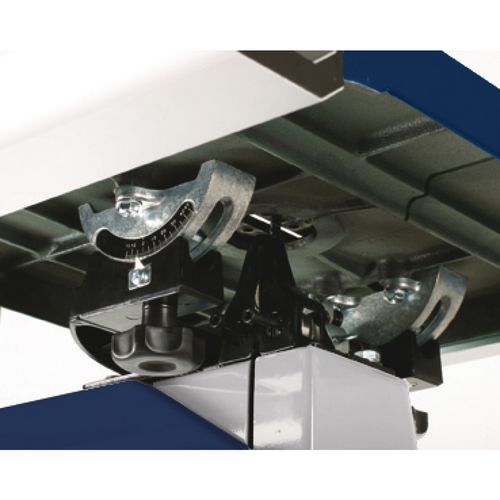

| Pivot | -10 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Angle stop ±60°
- Laser device for marking the cutting line
