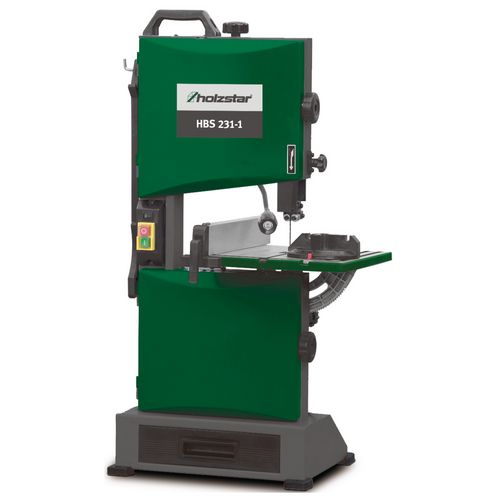

    Woodbandsaw

    HBS 231-1

    Reliable band saws for precise work

    265,00 EUR excl. Tax / pc(s).
    315,35 EUR incl. 19% Tax / pc(s).
    Promotional price *
    219,00 EUR excl. Tax / pc(s).
    260,61 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5902423

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal for ambitious modellers and do-it-yourselfers
    • Flywheels made of die-cast aluminum with special coating
    • Aluminium cast iron worktable swiveling up to 45°

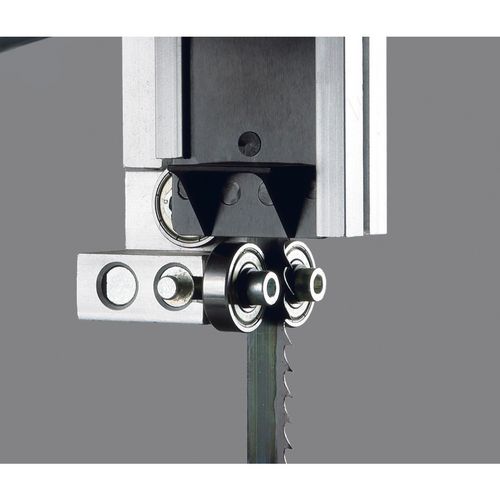

    • Equipped with precise 3-rolls saw band guide above and below the table
    • Aluminum longitudinal stop with quick clamping precisely adjustable with the aid of a magnifying glass and millimeter scale (except HBS 231-1)
    • Two belt speeds adjustable (except HBS 231-1)



    Cutting ranges
    Max. cutting height 90°90 mm
    Max. cutting height 45°50 mm
    Max. cutting width with stop125 mm
    Max. cutting width without stop228 mm
    Dimensions and weights
    Length approx.490 mm
    Width/depth approx.420 mm
    Height approx.835 mm
    Weight approx.20 kg
    Electrical Data
    Delivery power0.17 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter53 mm
    Saw band
    Speed(s)635 m/min
    Length1575 mm
    Width6.35 mm
    Strength0.35 mm
    Work top(s)
    Length300 mm
    Width300 mm
    Height405 mm
    Pivot0 – 45 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Saw band
    • Longitudinal stop with loupe
    • Miter stop
    • LED work light
    • Push stick
