    Log band saw

    HBBS 810

    Precise saw cuts when ripping round timber

    3.399,00 EUR excl. Tax / pc(s).
    4.044,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.199,00 EUR excl. Tax / pc(s).
    3.806,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5670813

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

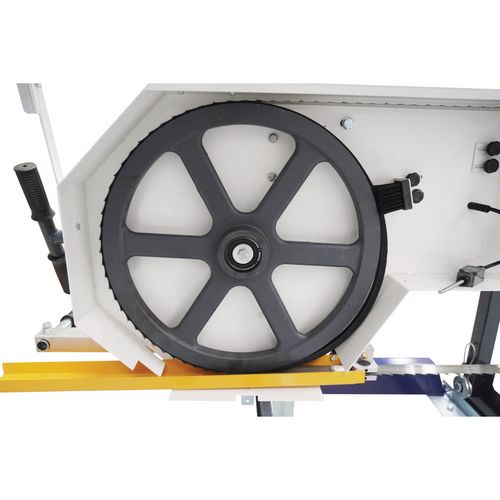

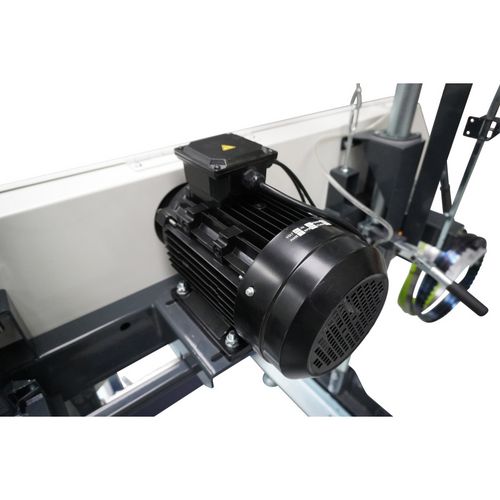

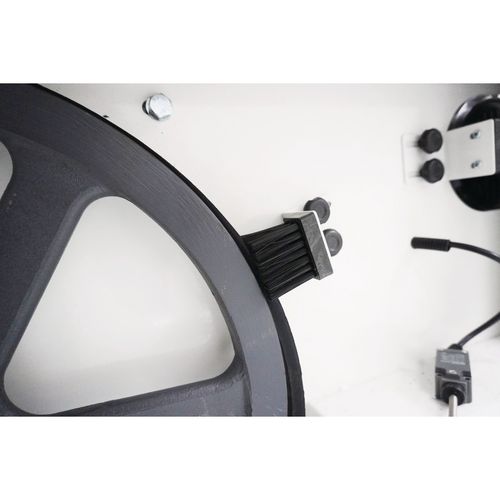

    • Solid cast wheels driven by a 7.5 kW electric motor

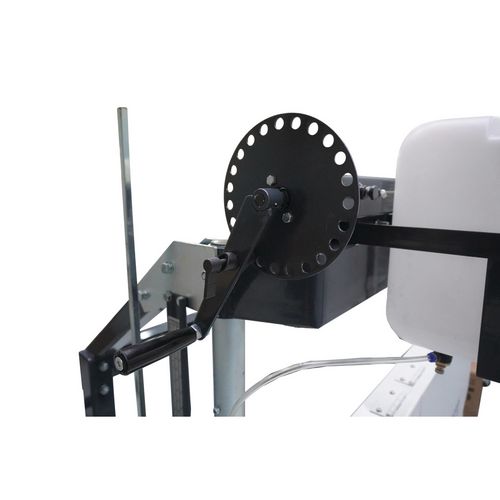

    • Manual adjustment of the cutting height via hand crank
    • Robust and torsion-resistant steel construction
    • Simple operation with the aid of a manual saw feed

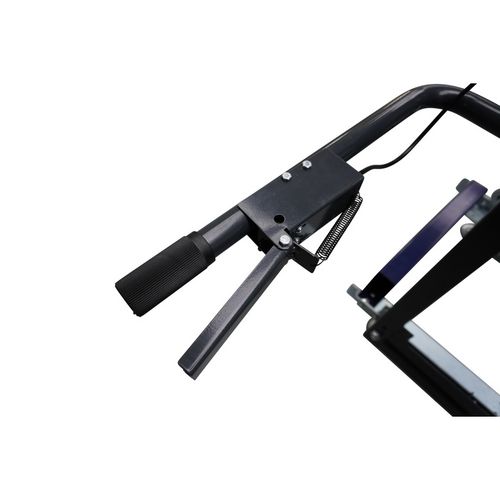

    • Safety switch integrated in the handle for safe operation

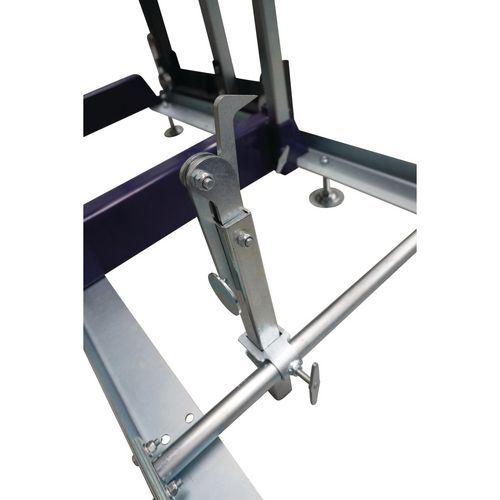

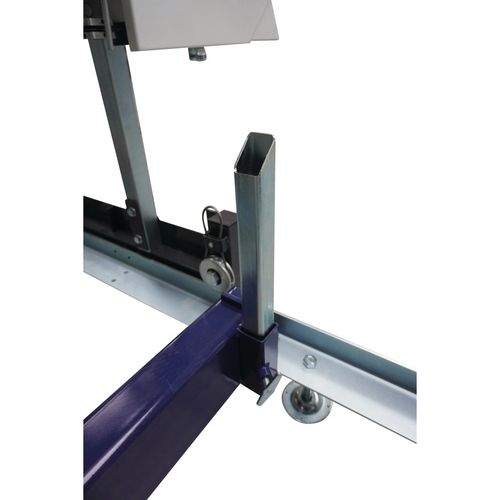

    • Stable clamping of the log thanks to adjustable tips
    • Precise cuts thanks to adjustable saw blade guide

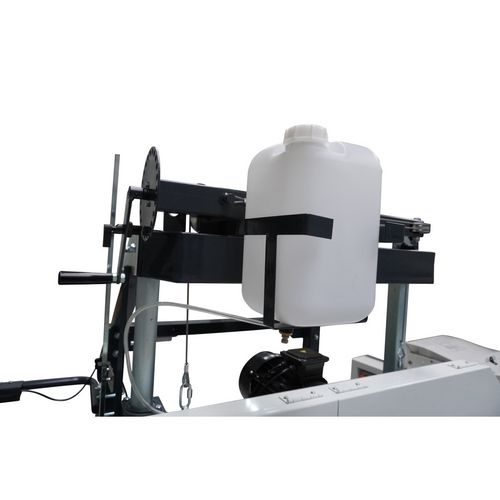

    • Low friction between saw blade and wood thanks to integrated blade lubrication

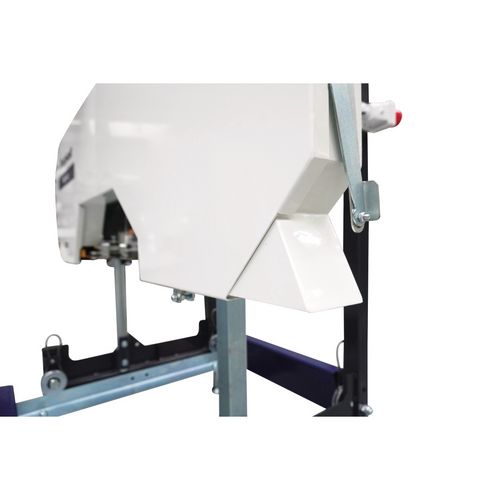

    • The side-mounted chip removal ensures a clean working area
    • Any cutting length thanks to bed extensions available as accessories
    • Suitable for softwood and hardwood



    Cutting ranges
    Max. trunk diameter810 mm
    Max. cutting width700 mm
    Cutting length max.3200 mm
    Passage over saw band190 mm
    Dimensions and weights
    Length approx.4000 mm
    Width/depth approx.2350 mm
    Height approx.2080 mm
    Weight approx.380 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Noise emission
    Sound power level94,6 dB(A)
    Saw band
    Speed(s)18 m/s
    Length4015 mm
    Width34 mm
    Strength1 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Drive typeelectric
    Material frame constructionSteel
    Feed ratemanually
