Cutting ranges | |
---|---|
Max. trunk diameter | 660 mm |
Max. cutting width | 530 mm |
Cutting length max. | 3200 mm |
Passage over saw band | 190 mm |

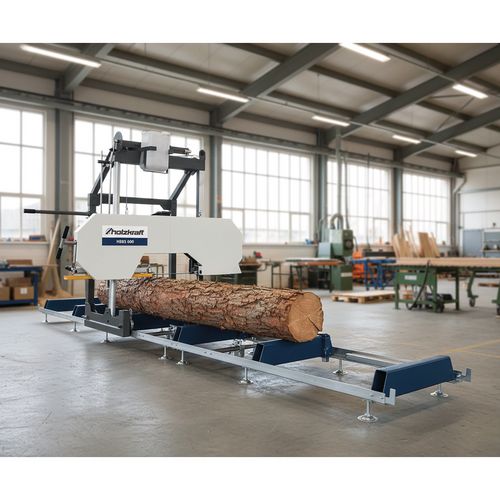

Log band saw
Precise saw cuts when ripping round timber
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5670663
Cutting ranges | |
---|---|
Max. trunk diameter | 660 mm |
Max. cutting width | 530 mm |
Cutting length max. | 3200 mm |
Passage over saw band | 190 mm |
Dimensions and weights | |
---|---|
Length approx. | 4000 mm |
Width/depth approx. | 2150 mm |
Height approx. | 2000 mm |
Weight approx. | 330 kg |
Electrical Data | |
---|---|
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Noise emission | |
---|---|
Sound power level | 94,6 dB(A) |
Saw band | |
---|---|
Speed(s) | 18 m/s |
Length | 3650 mm |
Width | 34 mm |
Strength | 1 mm |
VPE | 1 |
Drive type | electric |
Material frame construction | Steel |
Feed rate | manually |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
