| Cutting ranges | |
|---|---|
| Max. trunk diameter | 400 mm |
| Max. cutting width | 350 mm |
| Cutting length max. | 2500 mm |
| Passage over saw band | 150 mm |

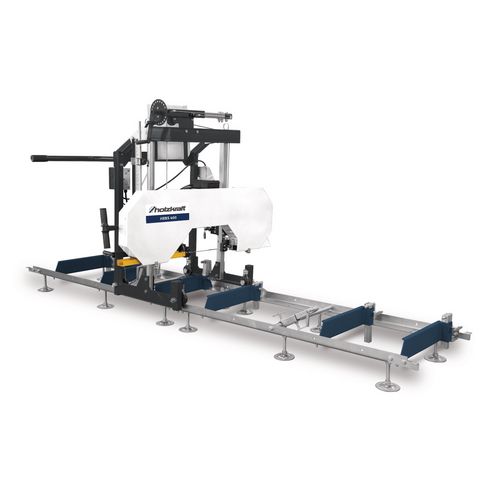

Log band saw
HBBS 400 / 230V
Precise saw cuts when ripping round timber
1.999,00
EUR excl. Tax / pc(s).
2.378,81 EUR incl. 19% Tax / pc(s).
2.378,81 EUR incl. 19% Tax / pc(s).
Promotional price *
1.899,00 EUR excl. Tax / pc(s).2.259,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5670401
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid cast wheels driven by a 2.2 kW electric motor
- Manual adjustment of the cutting height via hand crank
- Robust and torsion-resistant steel construction
- Simple operation with the aid of a manual saw feed
- Safety switch integrated in the handle for safe operation
- Stable clamping of the log thanks to adjustable tips
- Precise cuts thanks to adjustable saw blade guide
- Low friction between saw blade and wood thanks to integrated blade lubrication
- The side-mounted chip removal ensures a clean working area
- Any cutting length thanks to bed extensions available as accessories
- Suitable for softwood and hardwood
| Dimensions and weights | |
|---|---|
| Length approx. | 3000 mm |
| Width/depth approx. | 1500 mm |
| Height approx. | 1300 mm |
| Weight approx. | 150 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level | 94.6 dB(A) |
| Saw band | |
|---|---|
| Speed(s) | 14 m/s |
| Length | 2750 mm |
| Width | 19 mm |
| Strength | 0.9 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive type | electric |
| Material frame construction | Steel |
| Feed rate | manually |
