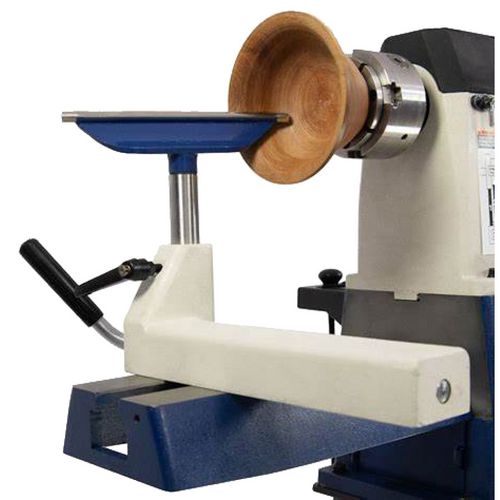

Woodturning lathe
DB 510 Pro Vario
Solid bench lathe with variable speed adjustment
889,00
EUR excl. Tax / pc(s).
1.057,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5822051
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid gray cast iron bench bed for smooth running
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock and 102 mm quill travel
- Flexible working thanks to mobile control box with magnetic holder, can be positioned as required
- Digital speed display and right/left rotation changeover via the control box
- Practical 24-step spindle dividing device for precise positioning of e.g. drill holes or milling operations
- Can also be used as a stand-alone machine thanks to optional base frame
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock and 102 mm quill travel
- Digital speed display and right/left rotation changeover via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milled holes
| Max. turning diameter | 355 mm |
| Speeds | 150 – 650, 400 – 1550, 850 – 3850 min-¹ |
| Speed stages | 3 |
| Speed control | Electronically variable |
| Tailstock thread | Trapezoid |
| Tailstock stroke | 102 mm |
| Bearing distance | 96.5 mm |
| Spindle cone | MT2 |
| Partial installation | 24 Steps |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1100 mm |
| Width/depth approx. | 470 mm |
| Height approx. | 470 mm |
| Weight approx. | 62 kg |
| Electrical Data | |
|---|---|
| Motor power input | 1,1 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Tool rest 200 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- Short ejector rod
- Clamping wrench 46 mm
- Clamping wrench 38 mm
- Allen key (2.5mm, 3mm, 4mm, 5mm)
| Right-left run | ✔ |
| Frequency inverter | ✔ |
| Mobile control panel | ✔ |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
