| Dimensions and weights | |
|---|---|
| Length approx. | 1964 mm |
| Width/depth approx. | 869 mm |
| Height approx. | 1475 mm |
| Weight approx. | 608 mm |
lathe
OPTIturn TM 3610

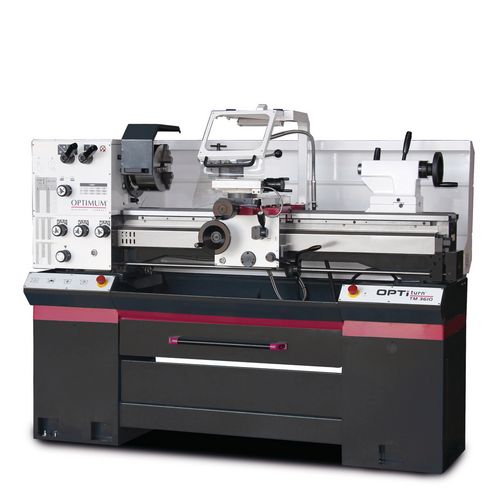

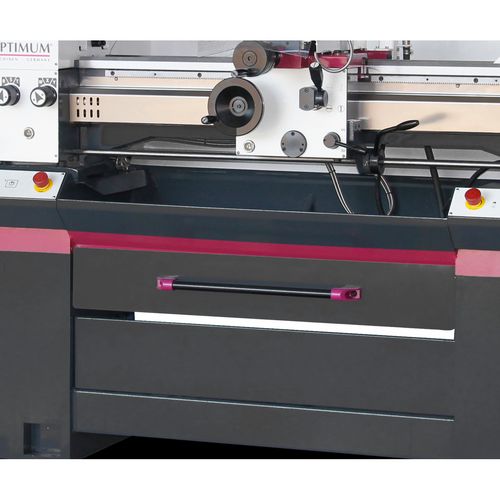

The lead screw and feed screw lathes impress with their sturdy design and easy handling
7.050,00
EUR excl. Tax / pc(s).
8.389,50
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3403030
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0.015 mm
- Spindle holder Camlock DIN ISO 702-2 No. 5
- Motor protection switch
- Main motor electrically braked

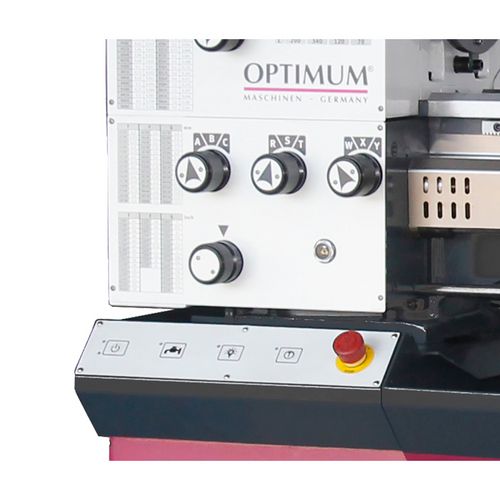

- Clockwise/anticlockwise rotation switchable on the bed slide
- Two-channel safety electronics
- Switch with life cycle calculation tested in accordance with EN ISO 13849
- Perfectly concentric main spindle guarantees high load capacity due to mounted precision tapered roller bearings

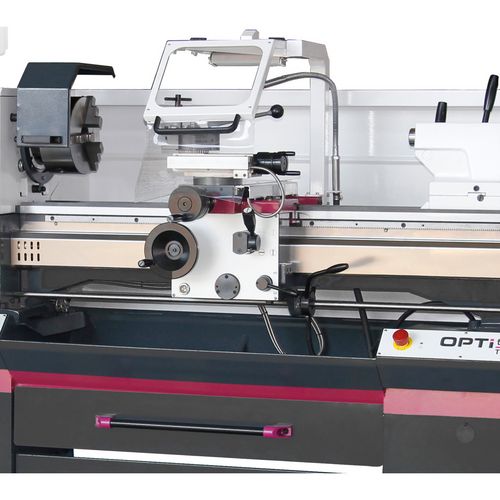

- With safety device to prevent simultaneous operation of tapping and feed mechanism
- Safety handwheels with disengagement function in the X and Z axes
- All gear wheels of the feed gear made of steel, hardened and ground, shafts on needle bearings All components are lubricated in an oil bath
- Simple feed operation
- One change gear position

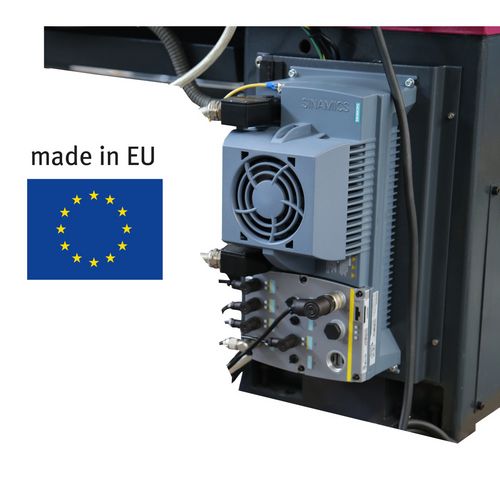

- Switch cabinet more Optimum control
- Coolant pump with coolant tank and level indicator. Container can be removed for easy cleaning
- LED machine lamp in the machine housing
- Machine base in sturdy steel construction
- Emergency stop switch on right and left
- Lockable main switch
- Three-jaw lathe chuck included in the scope of delivery
- SWH included in scope of delivery
| Electrical Data | |
|---|---|
| Total rated value | 2,2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0,052 – 1,392 mm/rev |
| Number of longitudinal feeds | 32 |
| Flat feed range | 0,014 – 0,38 mm/rev |
| Number of flat feeds | 32 |
| Pitches | |
|---|---|
| Metric pitch | 0,4 – 7 mm/rev |
| Number of metric pitches | 26 |
| Imperial pitch | 56 – 4 Gg/1" |
| Number of imperial pitches | 34 |
| Speed range | |
|---|---|
| Number of gears | 8 Steps |
| Speed range | 70 – 2400 min¯¹ |
| Spindle | |
|---|---|
| Spindle chuck | Camlock DIN ISO 702-2 No. 5 |
| Spindle bore/rod passage diameter | 52 mm |
| Tool holder | SWH 3-E |
| Spindle cone | MT 6 |
| Tailstock | |
|---|---|
| Chuck | MK 3 |
| Quill stroke | 120 mm |
| Quill diameter | 42 mm |
| Travel | |
|---|---|
| Travel upper slide | 100 mm |
| Work areas | |
|---|---|
| Max. height | 180 mm |
| Max. width | 1000 mm |
| Swing diameter above machine bed | 360 mm |
| Swing diameter above planing slide | 225 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Three-jaw lathe chuck Ø 200 mm Camlock no. 5
- Fixed steady rest Ø 7 - Ø 102 mm
- Rotating steady rest Ø 10 - Ø 60 mm
- LED machine light
- Adapter MK 6-MK 4
- Non-rotating center point MK4
- Quick-change steel holder SWH 3-E
- Steel holder 20 x 100 type D for square chisel 18 mm
- Initial machine filling with quality oil
- Operating tool
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
