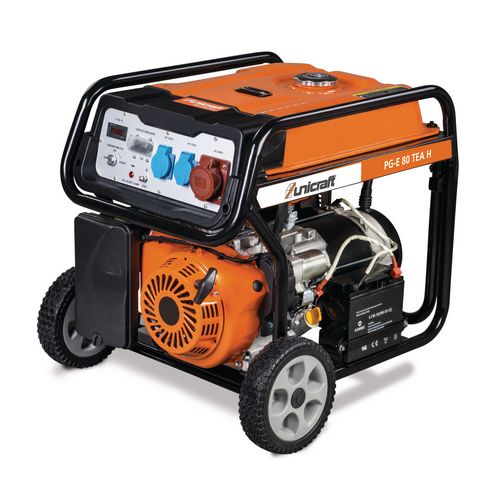

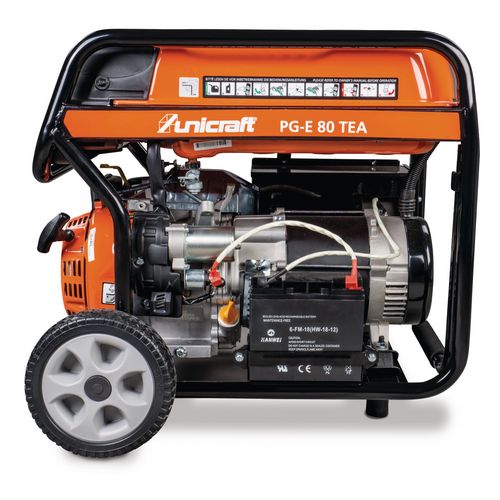

    Synchronous power generator

    PG-E 80 TEA H

    for the demanding private user and the semi-professional

    999,00 EUR excl. Tax / pc(s).
    1.188,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    879,00 EUR excl. Tax / pc(s).
    1.046,01 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6706080

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • All generators with copper windings
    • Short term power up to 3 times the rated power
    • Automatic voltage regulation AVR provides constant output voltage and enables the generator to be operated at a constant voltage.makes operation of sensitive equipment easier
    • Overload protection by thermal circuit breaker/li>
    • low oil shutdown with warning lamp
    • 3 in 1 display for voltage, frequency and operating hours
    • long running time due to large tank
    • Tank with level indicator

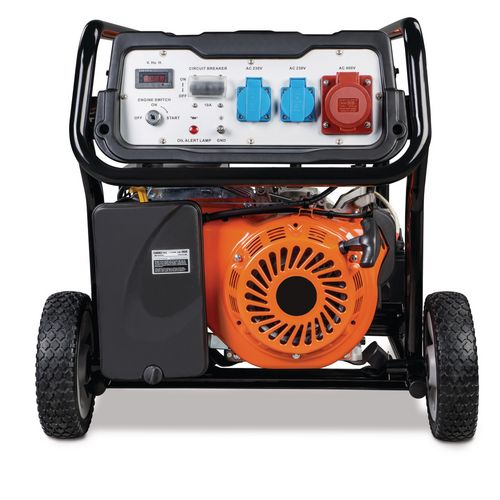

    • Connections ergonomically favourable at the front side

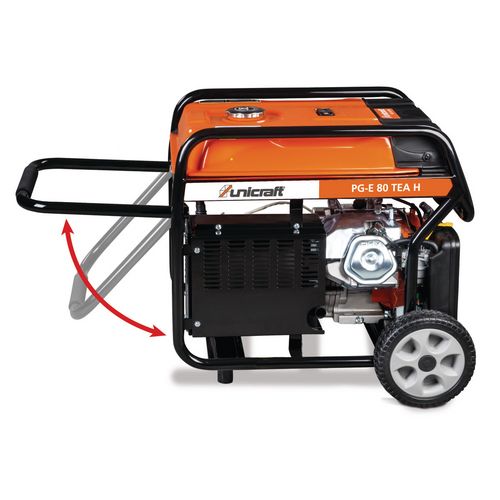

    • Easy transport thanks to wheel set and stable folding handles



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.700 mm
    Width/depth approx.526 mm
    Height approx.580 mm
    Weight approx.93.7 kg
    Drive
    DriveSC190F
    Power factor0.9 / 0.8 Cos ɸ
    StarterManual start / electric start
    FuelGasoline
    Tank capacity25 l
    Sound pressure level Lp76 dB(A)
    Sound power level Lw97 dB(A)
    Max. shift load25 %
    Power generator
    Nominal voltage230 / 400 V
    Apparant power LTP2.75 / 8.4 kVA
    Active power LTP2.5 / 7.0 kW
    Apparent power COP2.53 / 7.8 kVA
    Active power COP2.3 / 6.5 kW
    Generator IP degree of protectionIP 23
    Socket type2 x 230 V, Schuko / 1 x 400 V, 16 A
    Socket IP degree of protectionIP 44
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Wheelset with folding handle
