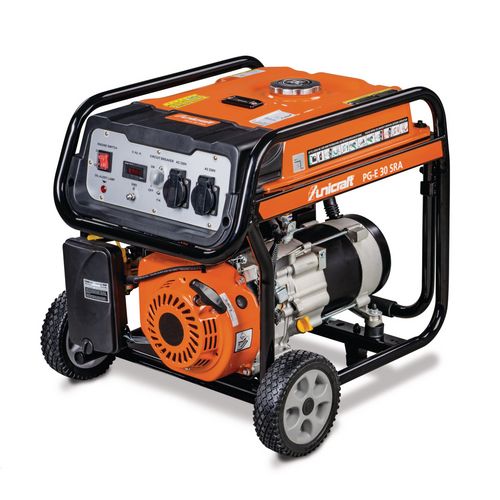

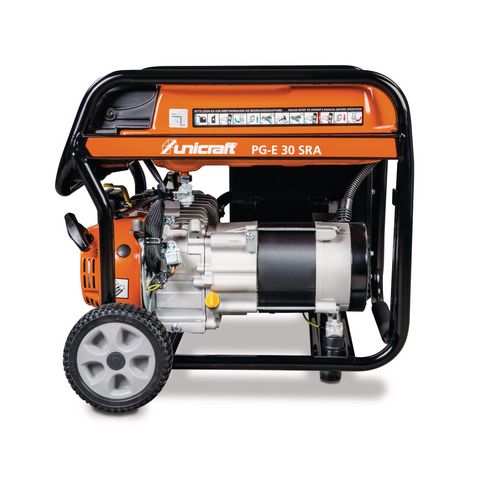

Synchronous power generator
PG-E 30 SRA
for the demanding private user and the semi-professional
449,00
EUR excl. Tax / pc(s).
534,31
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6706030
Are you interested in this product?
Put a request
Find Trader
Productdetails
- All generators with copper windings
- Short term power up to 3 times the rated power
- Automatic voltage regulation AVR provides constant output voltage and enables the generator to be operated at a constant voltage.makes operation of sensitive equipment easier
- Overload protection by thermal circuit breaker/li>
- low oil shutdown with warning lamp
- 3 in 1 display for voltage, frequency and operating hours
- long running time due to large tank
- Tank with level indicator

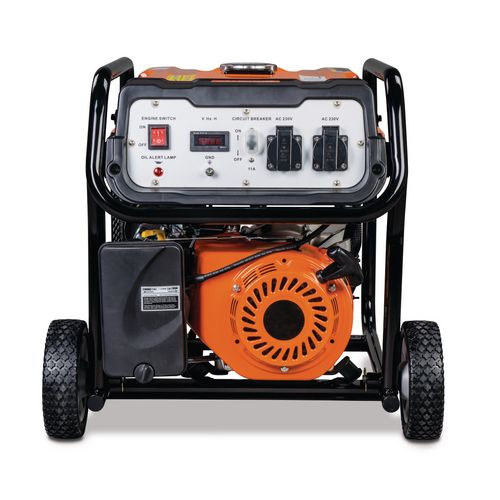

- Connections ergonomically favourable at the front side

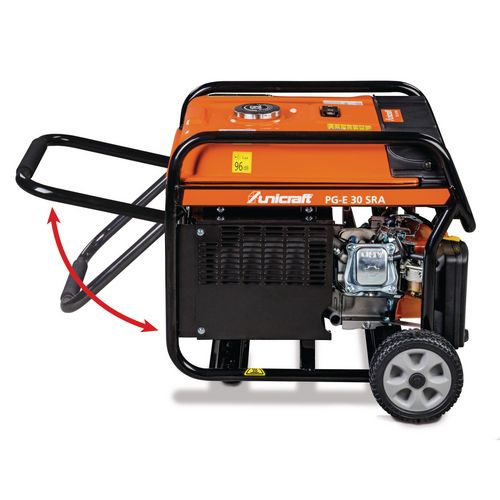

- Easy transport thanks to wheel set and stable folding handles
| Dimensions and weights | |
|---|---|
| Length approx. | 595 mm |
| Width/depth approx. | 460 mm |
| Height approx. | 500 mm |
| Weight approx. | 48.7 kg |
| Drive | |
|---|---|
| Drive | SC170F |
| Power factor | 0.9 Cos ɸ |
| Starter | Manual start |
| Fuel | Gasoline |
| Tank capacity | 15 l |
| Sound pressure level Lp | 75 dB(A) |
| Sound power level Lw | 96 dB(A) |
| Power generator | |
|---|---|
| Nominal voltage | 230 V |
| Apparant power LTP | 3.08 kVA |
| Active power LTP | 2.8 kW |
| Apparent power COP | 2.75 kVA |
| Active power COP | 2.5 kW |
| Generator IP degree of protection | IP 23 |
| Socket type | 2 x 230 V, Schuko |
| Socket IP degree of protection | IP 44 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Wheelset with folding handle
