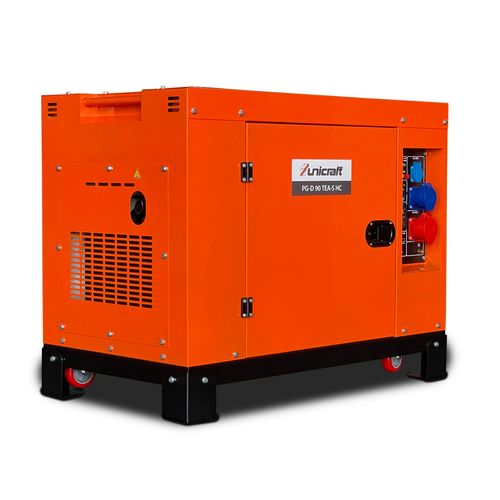

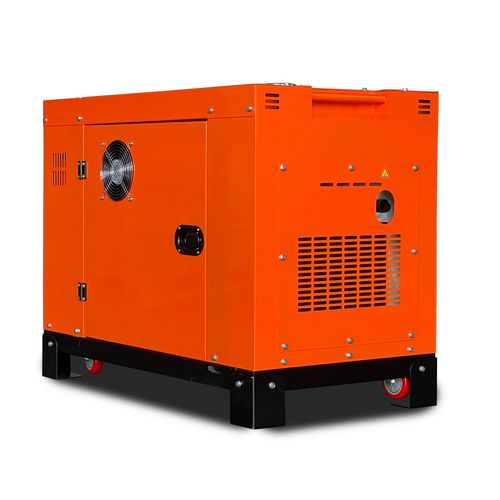

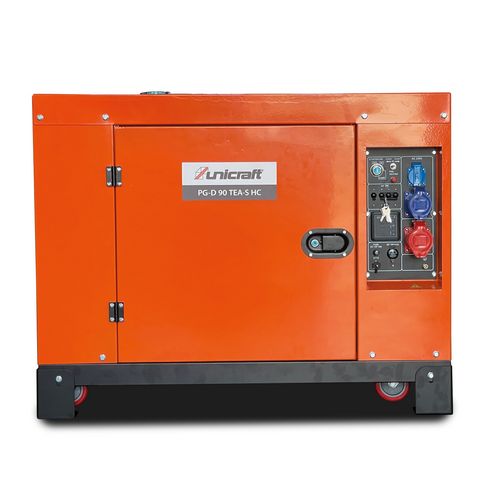

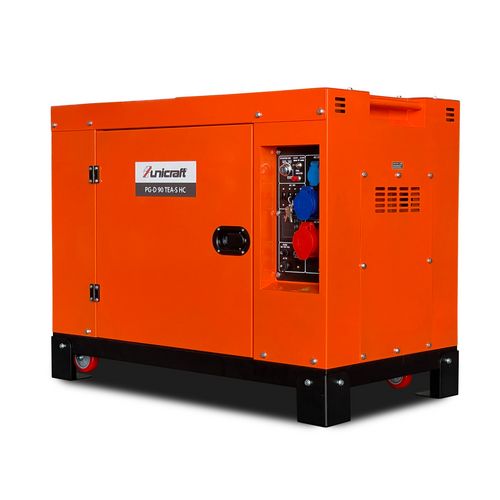

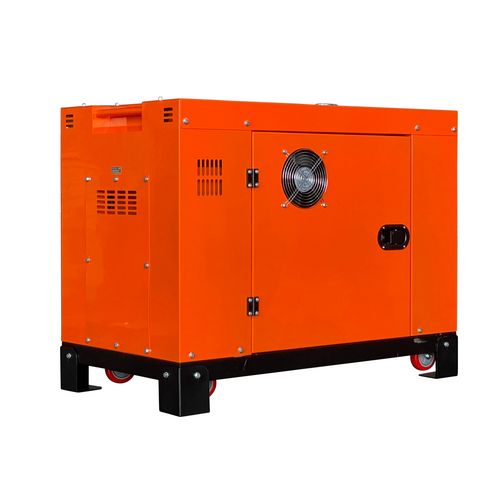

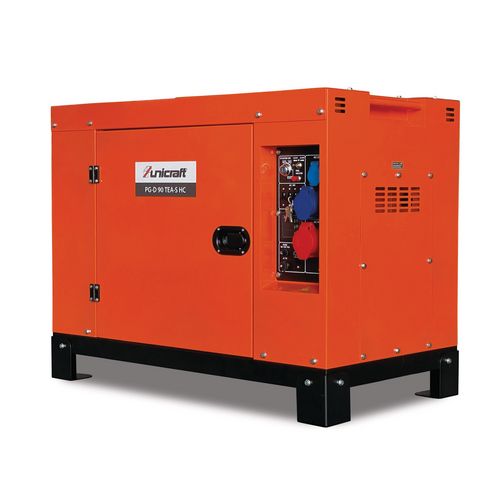

Synchronous power generator
PG-D 90 TEA-S HC
Diesel power generator for home feeding
2.379,00
EUR excl. Tax / pc(s).
2.831,01 EUR incl. 19% Tax / pc(s).
2.831,01 EUR incl. 19% Tax / pc(s).
Promotional price *
1.999,00 EUR excl. Tax / pc(s).2.378,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6731090
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for house power supply with manual mains disconnector switch
- Also equipped with connection for automatic mains isolator switch
- The Equal Power function enables a much higher output power in 230V: With most generators the output power in 230V is approx. 30% of the output power in 400V. With the Equal Power function, an output power in 230V of approx. 80% is achieved!
- Sound-insulated diesel engine (complies with noise and exhaust emission regulations)

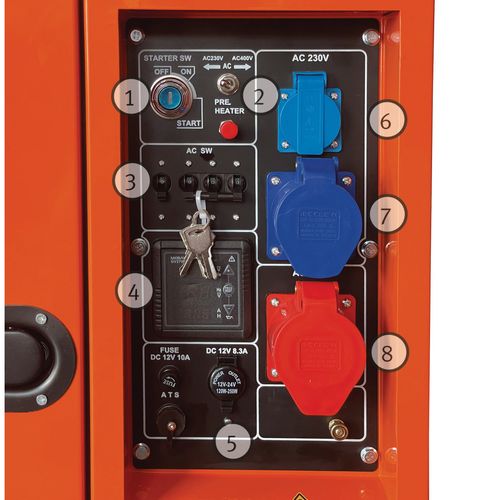

- Connections ergonomically located on the side of the unit in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
- Splash and impact protection due to full enclosure
- Electronic voltage regulation AVR
- Low oil level indicator
- Long running times due to large 25 liter tank
- Comfortable starting at the push of a button with E-Start
- With pre-heater for fast and trouble-free starting even at cold temperatures
- Stable chassis with two swivel castors
- Suitable for house power supply with manual mains disconnector switch
- Also equipped with connection for automatic mains isolator switch
- The Equal Power function enables an output power in 230V of approx. 80% of the output power in 400V!
- Electronic voltage regulation AVR
- Comfortable starting at the push of a button with E-Start
- With preheater for fast and trouble-free starting even at cold temperatures
| Dimensions and weights | |
|---|---|
| Length approx. | 1120 mm |
| Width/depth approx. | 645 mm |
| Height approx. | 800 mm |
| Weight approx. | 203 kg |
| Drive | |
|---|---|
| Drive | 1100F |
| Power factor | 0.8 Cos ɸ |
| Starter | E-Start |
| Fuel | diesel |
| Tank capacity | 25 l |
| Running time at 50% load | 12 h |
| Oil tank capacity | 2.5 l |
| Sound pressure level Lp | 72 dB(A) |
| Sound power level Lw | 97 dB(A) |
| Max. shift load | 30 % |
| Electrical Data | |
|---|---|
| Mains frequency | 50 Hz |
| Power generator | |
|---|---|
| Nominal voltage | 230 / 400 V |
| Apparant power LTP | 9.2 / 10.7 kVA |
| Active power LTP | 7.3 / 8.5 kW |
| Apparent power COP | 8.5 / 10.0 kVA |
| Active power COP | 6.8 / 8.0 kW |
| Generator IP degree of protection | IP 23 |
| Socket type | 1x 230V 16A Schuko / 1x 230V 32A CEE / 1x 400V 32A CEE / 1x 12V DC |
| Socket IP degree of protection | IP 44 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
