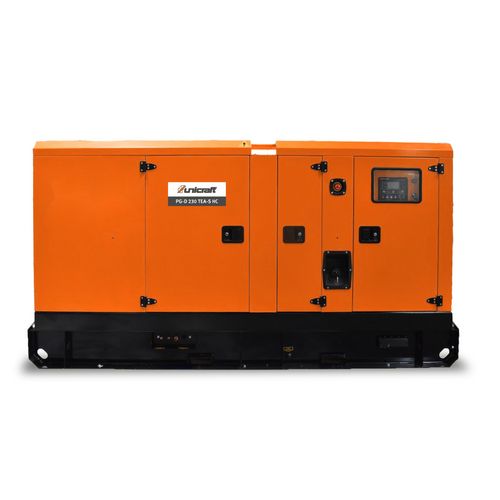

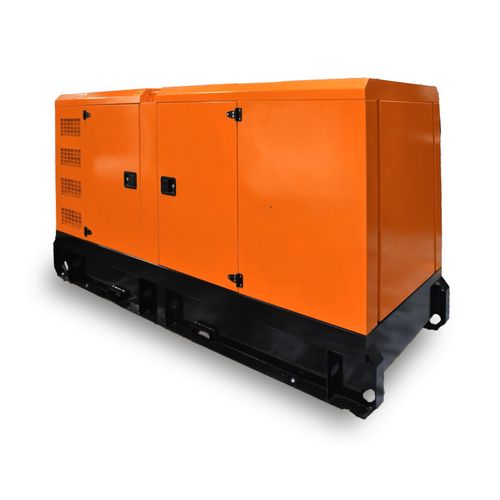

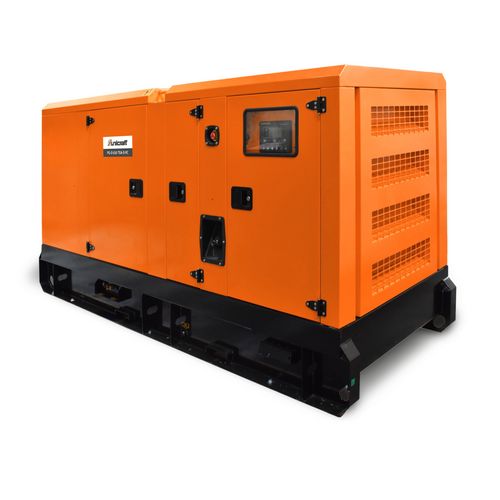

Synchronous power generator
PG-D 630 TEA-S HC
Diesel power generator for home feeding
19.650,00
EUR excl. Tax / pc(s).
23.383,50 EUR incl. 19% Tax / pc(s).
23.383,50 EUR incl. 19% Tax / pc(s).
Promotional price *
18.299,00 EUR excl. Tax / pc(s).21.775,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6740163
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Long running times thanks to large tank
- Including 1h socket and changeover switch
- Including insulation monitoring for all outlets except 1h socket
- Suitable for domestic feed-in with manual mains isolator switch
- Also equipped with connection for automatic mains disconnector
- Soundproofed diesel engine (complies with noise and exhaust emission regulations)

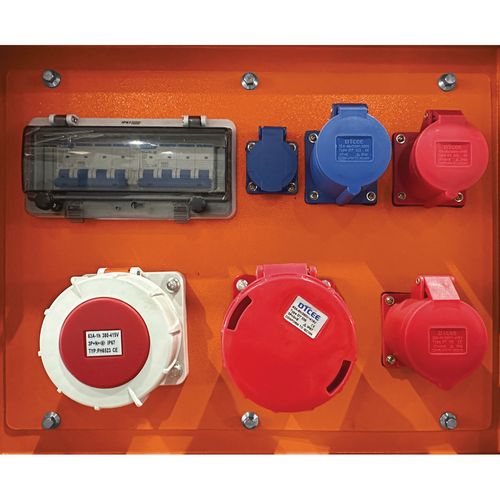

- Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
- Splash and impact protection thanks to full cladding
- Electronic voltage regulation AVR
- Low oil indicator
- Convenient starting at the push of a button with E-Start
- With preheater for quick and easy starting even in cold temperatures
- Long running times thanks to large tank
- Including 1h socket and changeover switch
- Includes insulation monitoring for all outlets except 1h socket
- Suitable for domestic feed-in with manual mains isolator switch
- Soundproofed diesel engine (complies with noise and exhaust emission regulations)
- Electronic voltage regulation AVR
- Convenient starting at the touch of a button with E-Start
- With preheater for quick and easy starting even in cold temperatures
| Coolant capacity | 13 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 2250 mm |
| Width/depth approx. | 930 mm |
| Height approx. | 1200 mm |
| Weight approx. | 1050 kg |
| Drive | |
|---|---|
| Drive | 4D20TIG1/5 |
| Emission standard | Euro 5 |
| Power factor | 0.8 Cos ɸ |
| Starter | E-Start |
| Fuel | diesel |
| Tank capacity | 90 l |
| Running time at 50% load | 10 h |
| Running time at 100% load | 8 h |
| Oil tank capacity | 6.5 l |
| Sound pressure level Lp | 75 dB(A) |
| Sound power level Lw | 97 dB(A) |
| Electrical Data | |
|---|---|
| Mains frequency | 50 Hz |
| Power generator | |
|---|---|
| Nominal voltage | 230 / 400 V |
| Apparant power LTP | 18.9 / 63 kVA |
| Active power LTP | 15 / 50 kW |
| Apparent power COP | 16.8 / 56 kVA |
| Active power COP | 13.5 / 45 kW |
| Generator IP degree of protection | IP 23 |
| Socket type | 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 63 A, CEE / 1x 400V, 63 A, 1h |
| Socket IP degree of protection | IP 44 / IP 67 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
