    5. with anti-slip coating with 2 clamping bolts Ø 20 mm
    Brandimage to Product with anti-slip coating with 2 clamping bolts Ø 20 mm

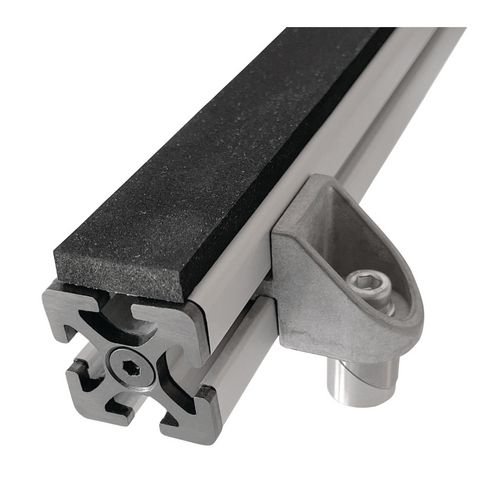

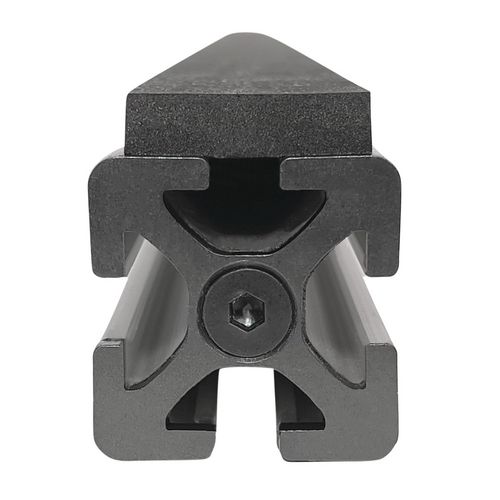

    Support rail

    with anti-slip coating with 2 clamping bolts Ø 20 mm

    99,90 EUR excl. Tax / pc(s).
    118,88 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6112006

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Support rails with anti-slip coating are compatible with perforated grid plates and multifunctional tables with hole diameter 20 mm.

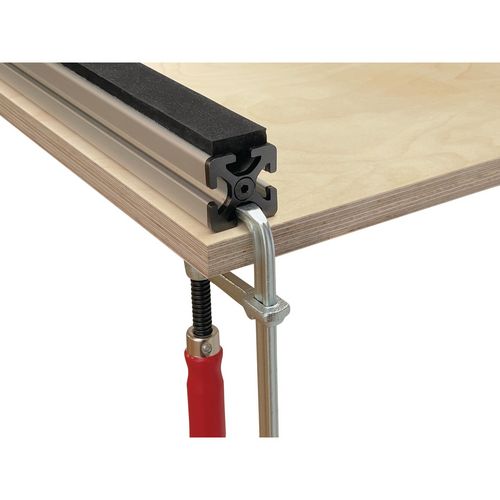

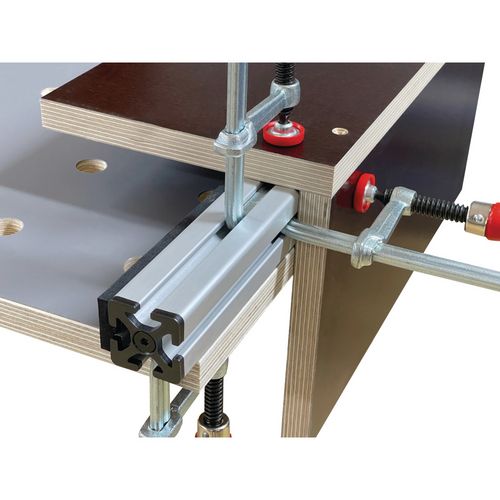

    • Rails can be easily and quickly fixed in the hole. This means that the rails can also protrude over the table and thus extend the work surface.
    • The effective and insensitive anti-slip coating enables the workpieces placed on the rails to be machined without additional fixing in most cases.
    • Can also be used as a stop and gluing aid



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    MaterialAnodised aluminium with anti-slip coating
    Clamping systemPerforated grid Ø20 mm
    Bolt diameter20 mm
    VPE1
    Dimensions and weights
    Length approx.1200 mm
    Weight approx.2,8 kg
    Unit: pc(s).
    Packaging unit: 1

    • 1 Support rails glued with anti-slip coating
    • 2 clamping angle with clamping bolt Ø20 mm
