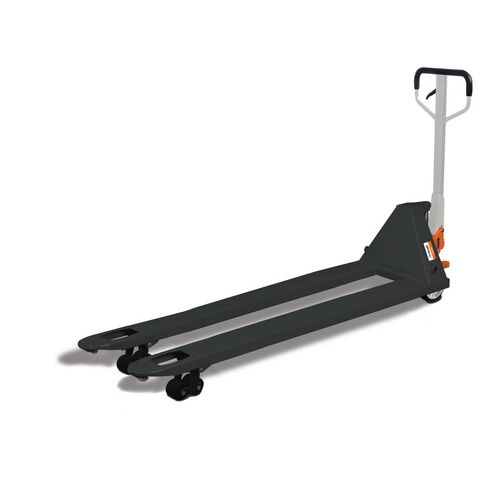

Pallet truck
PHW PHW 2507 L
Comfortable to operate, resilient and maneuverable
599,00
EUR excl. Tax / pc(s).
712,81 EUR incl. 19% Tax / pc(s).
712,81 EUR incl. 19% Tax / pc(s).
Promotional price *
499,00 EUR excl. Tax / pc(s).593,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 6152511
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Lifting, lowering and neutral position can be operated with one-hand lever

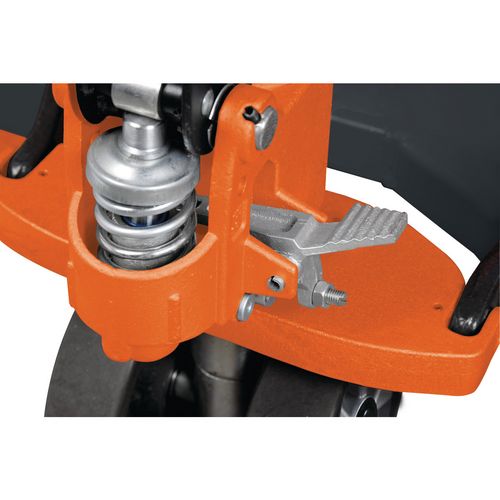

- Smooth-running hydraulic pump with hard chromed piston and overpressure valve
- Steering speed infinitely adjustable via sensitive discharge valve

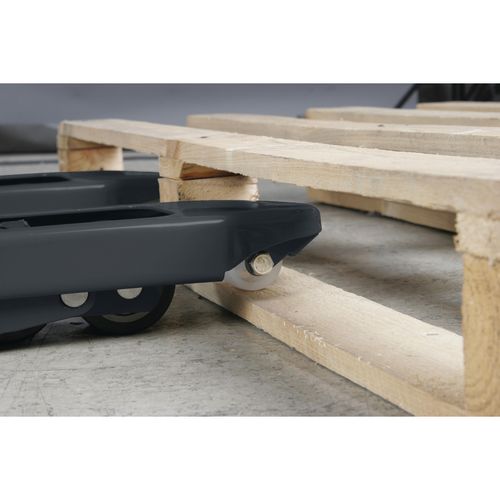

- Easy procedure also heavy loads thanks to extralight aluminum castors with solid plastic treads and polyurethane tandem fork rollers
- Robust ball bearings in all wheels and castors
- Steel frame and fork in a very sturdy and torsion-resistant shell construction
- Ergonomically shaped drawbar with plastic coating on the handle
- Available with different fork lengths
| Load-bearing capacity | 2.5 t |
| Load-bearing width | 540 mm |
| Fork width | 160 mm |
| Fork length | 1800 mm |
| Lifting range | 85 – 200 mm |
| Turning radius | 1790 mm |
| VPE | 0 |
| Dimensions and weights | |
|---|---|
| Steering rollers diameter | 200 mm |
| Steering rollers width | 50 mm |
| Fork roller diameter | 80 mm |
| Fork roller width | 70 mm |
| Length approx. | 2190 mm |
| Width/depth approx. | 540 mm |
| Height approx. | 1240 mm |
| Weight approx. | 100 kg |
Unit: pc(s).
| Steering rollers material | Aluminum, Polyamide |
| Fork roller material | Polyurethane |
| Fork roller design | Tandem |
