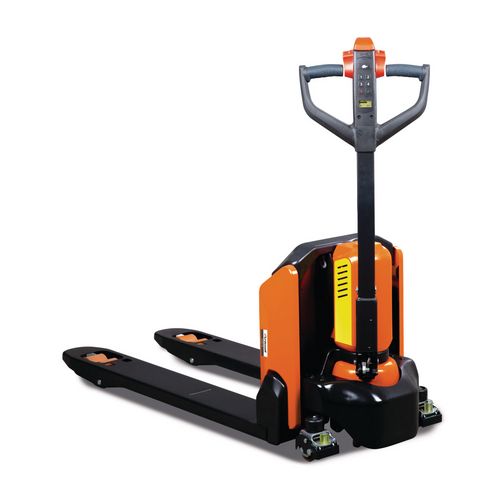

    Electric pallet truck

    EHW 20

    All-electric version with lithium-ion battery

    3.199,00 EUR excl. Tax / pc(s).
    3.806,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.999,00 EUR excl. Tax / pc(s).
    3.568,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Safetydatasheet

    Art.-No. 6160120

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

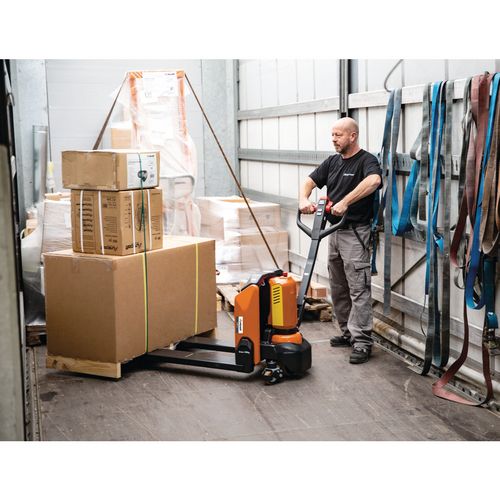

    • Very manoeuvrable and low overall weight, also suitable for use in confined spaces, on the lifting platform or as a take-away device on trucks
    • Stepless, comfortable control of the driving speed via rocker button
    • Low-speed function allows slow manoeuvring with vertical drawbar – perfect in confined spaces!
    • EHW 20: Easy, safe manoeuvring in tight corners due to automatic speed reduction of 50% in case of strong drawbar impact

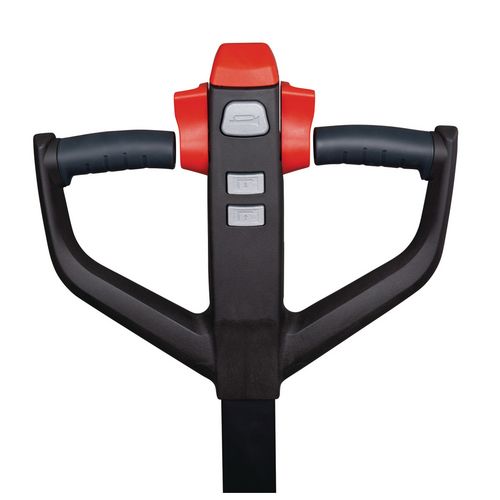

    • Ergonomic drawbar head for high operating comfort

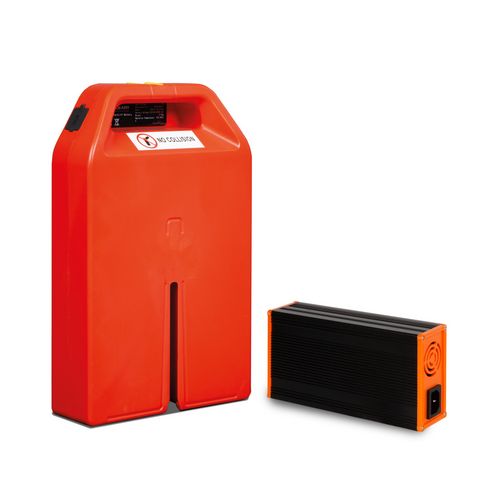

    • Powerful and maintenance-free lithium-ion battery
    • High availability thanks to very short charging time of only two and a half to three hours and possibility of intermediate charging during breaks or during downtimes
    • Integrated battery management system ensures long-term maintenance and safety during charging
    • Battery discharge indicator on the drawbar
    • Battery easy to remove and use
    • CAN-Bus interface and Curtis maintenance control for easy and fast diagnostics (external diagnostic software required)



    Data sheets
    Safetydatasheet
    Load-bearing capacity2 t
    Load-bearing width540 mm
    Fork width160 mm
    Fork length1150 mm
    Lifting range80 – 195 mm
    Lifting speed0.017 m/s
    Travel speed4.8 km/h
    Turning radius1336 mm
    Max. grade ability loaded7 %
    Max. grade ability unloaded16 %
    VPE1
    Dimensions and weights

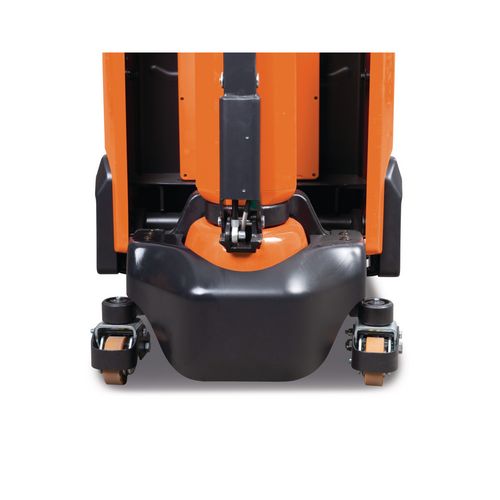

    Steering rollers diameter210 mm
    Steering rollers width70 mm
    Fork roller diameter80 mm
    Fork roller width93 mm
    Length approx.1536 mm
    Width/depth approx.540 mm
    Height approx.1160 mm
    Weight approx.149 kg
    Electrical Data
    Power drive motor0.75 kW
    Lifting motor output0.8 kW
    Battery voltage48 V
    Battery capacity20 Ah
    Unit: pc(s).
    Packaging unit: 1



    Side support rollers included



    Steering rollers materialPolyurethane
    Fork roller materialPolyurethane
    Fork roller designTandem
    Battery discharge indicatorLCD
    Low-speed function✔

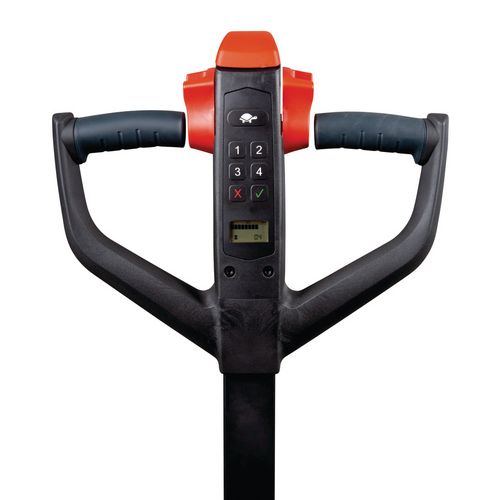

    Unlockwith pin code and RFID chip
    Hour meter✔
    Lateral support rollers✔
